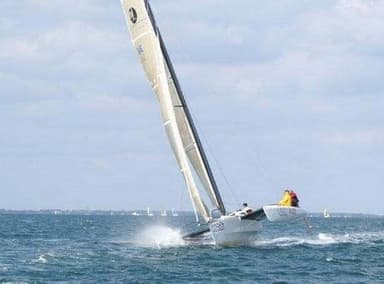

2005 Marstrom Seacart 30 GP
2005 Marstrom Seacart 30 GP
2005 Marstrom Seacart 30 GP
2005 Marstrom Seacart 30 GP
Preview
2005 Marstrom Seacart 30 GP
Preview
2005 Marstrom Seacart 30 GP
Preview

Boat Overview

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerMarstrom
Maker websitehttps://www.marstrom.com
ModelSeacart 30 GP
First built hull2005
Boat typeSail
CategoryTrimaran Boats
Hull typeTrimaran
Hull materialTrimaran
General
NameValue
Mast height16.79 m
Length overall11.19 m
Length at waterline9.02 m
Beam overall6.64 m
Draft maximum2.04 m
Displacement949.82 kg
Helm2 tillers
Rudder2 rudders (on amas)
CockpitOpen aft cockpit
Trailerable
Designer
NameValue
Naval architect
Name/StudioMarc Lombard Yacht Design Group
Websitehttp://www.marclombard.com/
Rig & Sails
NameValue
Mast55.1
SparsMast and boom in Carbon fiber
Standing rigging1x19 strand wire continuous
Number of spreaders1
Spreaders angleSwept-back (diamond)
Upwind sail area59.74 sq.m
Downwind sail area118.73 sq.m
Mainsail A438.00
Mainsail B840.00
Engine
NameValue
Engine A
TypeOutboard Engine ; Gas
Engine B
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.15
Upwind SA to Displacement62.87
Downwind SA to Displacement124.96
Hull Displacement Speed 0.15
Displacement to Length (D/L) 7.29
Capsize Screening Formula (CSF) 6.82
