Boat Overview

Boat Description

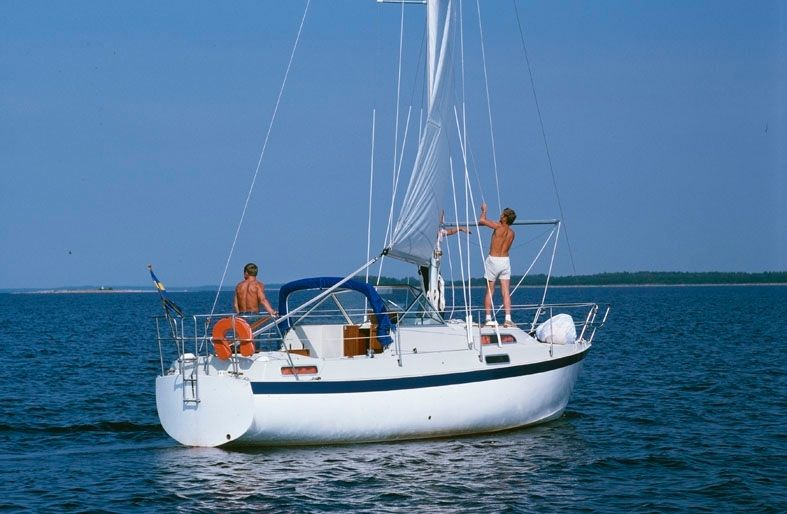

The Albin 82 MS is a recreational keelboat, built predominantly of fibreglass, with wood trim. It has a fractional sloop rig with aluminium spars, a deck-stepped mast, wire standing rigging and a single set of unswept spreaders. The hull has a raked stem, a plumb transom, with a swim ladder, a centre cockpit, skeg-mounted rudder controlled by a wheel, an auxiliary tiller and a fixed fin keel.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Gold for Free

Specs

Main
NameValue
MakerAlbin Marine
Maker websitehttps://en.wikipedia.org/wiki/Albin_Marine
Model82 MS
First built hull1975
Price89,900 $
Boat typeSail
CategoryCruiser BoatsMotorsailer BoatsDaysailer BoatsCenter Cockpit Boats
Hull typeMonohull
Hull materialMonohull
Cabins2
Births4
Heads1
General
NameValue
Top speed10.78 kmh
Length overall9.12 m
Length at waterline7.62 m
Beam overall2.84 m
Draft maximum1.19 m
Displacement3,400.13 kg
Ballast weight899.93 kg
Helm1 wheel
Rudder1 rudder on skeg
CockpitCentral cockpit
Designer
NameValue
Naval architect
Name/StudioPer Brohäll
Rig & Sails
NameValue
SparsMast and boom in Aluminum
Standing rigging1x19 strand wire continuous
Number of spreaders1
Spreaders angle0 °
Upwind sail area42.18 sq.m
Downwind sail area74.04 sq.m
Mainsail A183
Headsail A140
Spinnaker A614
Spinnaker A271
Engine
NameValue
Engine A
FuelDiesel
MakerVolvo Penta
ModelMD17C
Power35 HP
TypeInboard
Storage
NameValue
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 7.65
Upwind SA to Displacement18.97
Downwind SA to Displacement33.3
Hull Displacement Speed 6.7
Displacement to Length (D/L) 214.17
Ballast to Displacement (B/D) 26.47
Capsize Screening Formula (CSF) 1.92
