Boat Overview

Boat Description

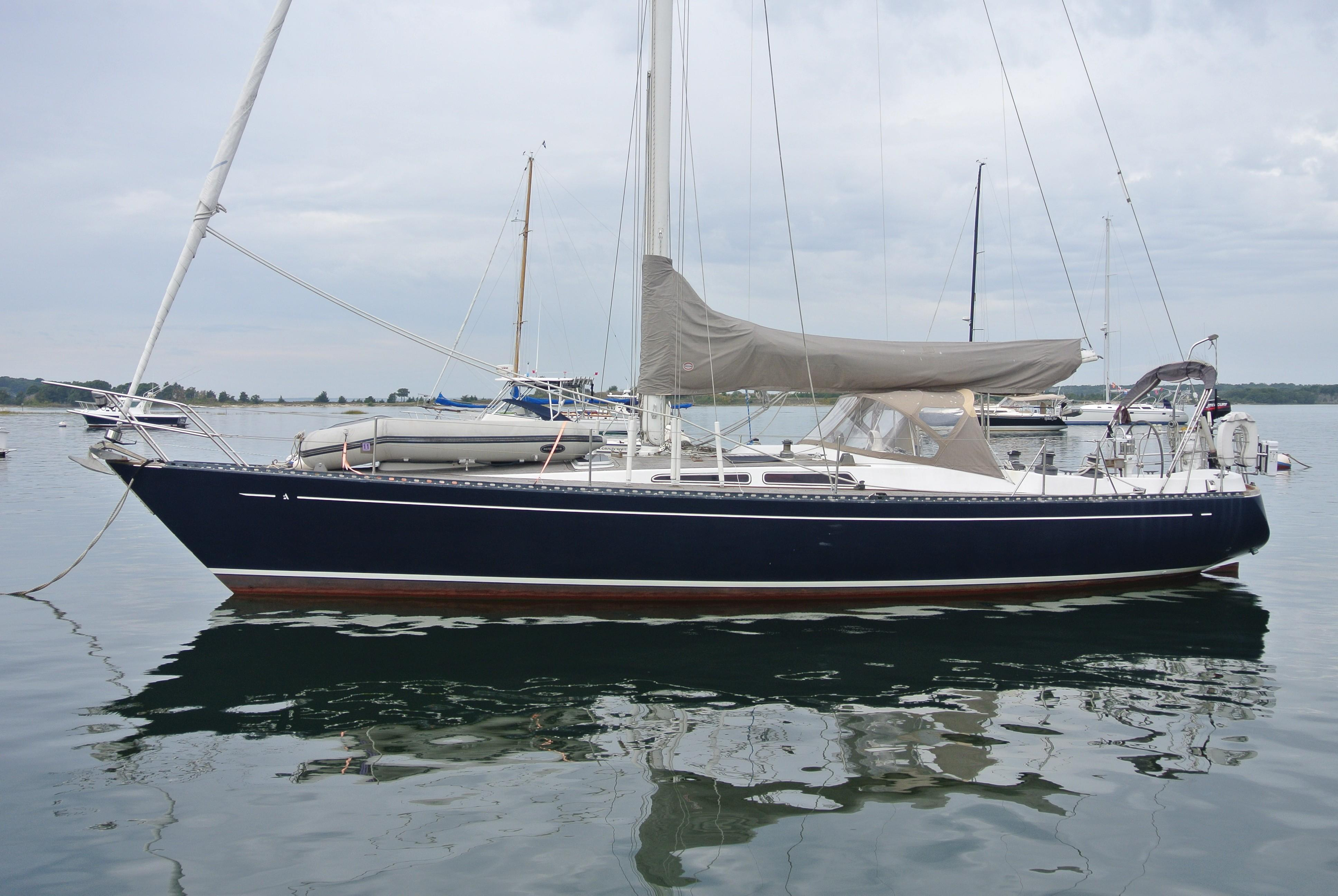

The Nimbus 42 is a Swedish sailboat that was designed by Americans F. Michael Kaufman and Robert Ladd as a cruiser-racer and first built in 1981

The Nimbus 42 is a recreational keelboat, built predominantly of fiberglass, with an Airex-cored deck and wood trim, including teak decks. It has a cutter rig, with aluminum spars and a keel-stepped mast. It features a raked stem, a raised counter reverse transom, a skeg-mounted rudder controlled by a wheel and a fixed fin keel, deep keel or optional stub keel and centerboard.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerAlbin Marine
Maker websitehttps://en.wikipedia.org/wiki/Albin_Marine
ModelNimbus 42
First built hull1981
Last built hull1985
VersionStandart
Price55,000 $
Boat typeSail
CategoryCruiser BoatsMotorsailer BoatsDaysailer Boats
Hull typeMonohull
Hull materialMonohull
General
NameValue
Top speed12.6 kmh
Mast height17.71 m
Length overall12.62 m
Length at waterline10.42 m
Beam overall3.84 m
Headroom1.95 m
Draft maximum1.78 m
Displacement10,580.03 kg
Ballast weight4,535.92 kg
Helm1 wheel
Rudder1 rudder on skeg
CockpitClosed aft cockpit
Designer
NameValue
Naval architect
Name/StudioRobert Ladd ; Michael Kaufman
Rig & Sails
NameValue
Mast58.1
SparsMast and boom in Aluminum
Standing rigging1x19 strand wire
Number of spreaders2
Spreaders angle0 °
Upwind sail area80.92 sq.m
Mainsail A367.5
Headsail A486
Engine
NameValue
Engine A
FuelDiesel
Maker Pathfinder
Power50 HP
TypeInboard
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Upwind SA to Displacement18.03
Displacement to Length (D/L) 7.83
Ballast to Displacement (B/D) 0.43
Capsize Screening Formula (CSF) 1.77
