1969 Albin Marine Shipman 28

No gallery images

1969 Albin Marine Shipman 28
Preview

Boat Overview

Boat Description

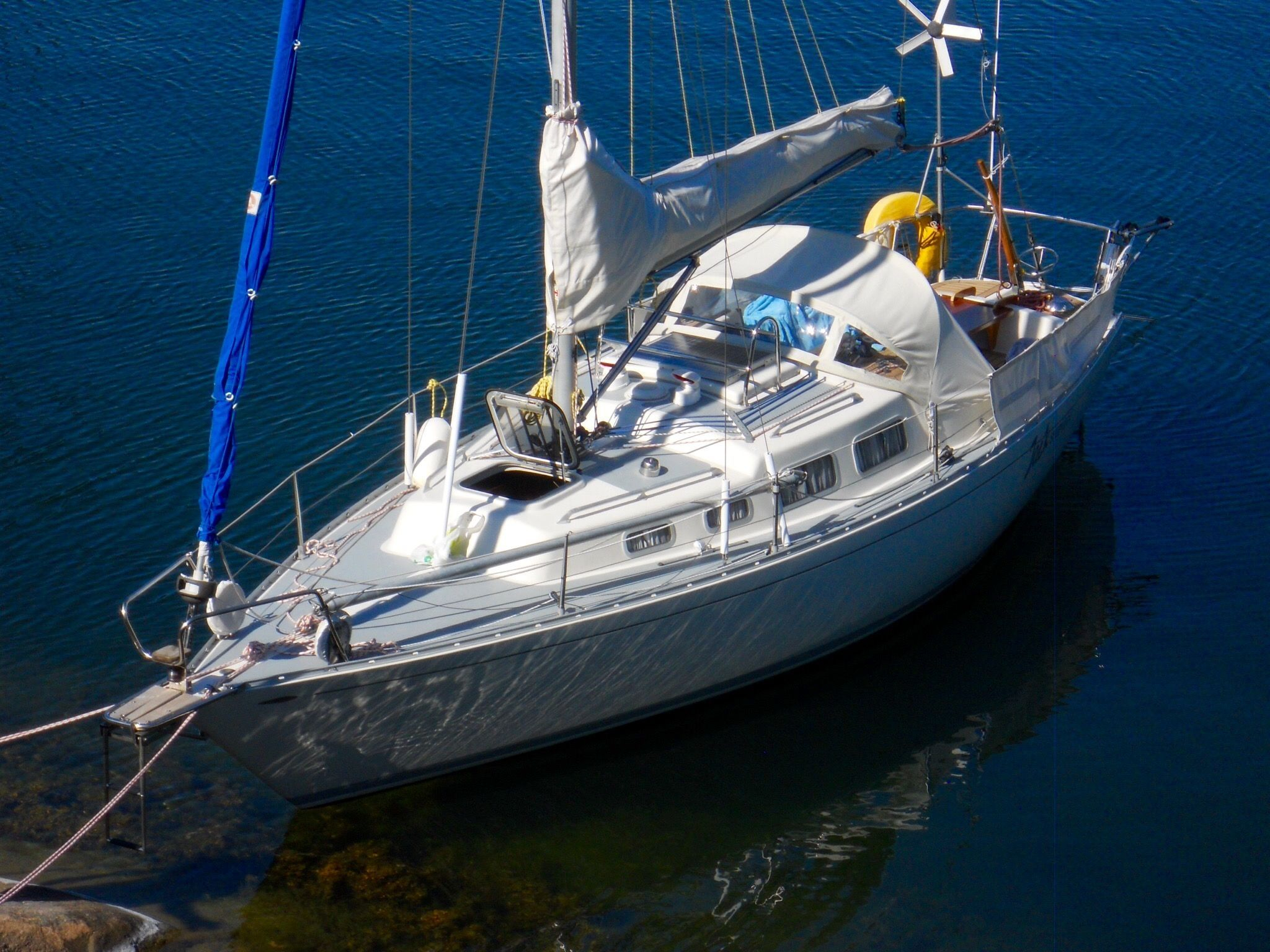

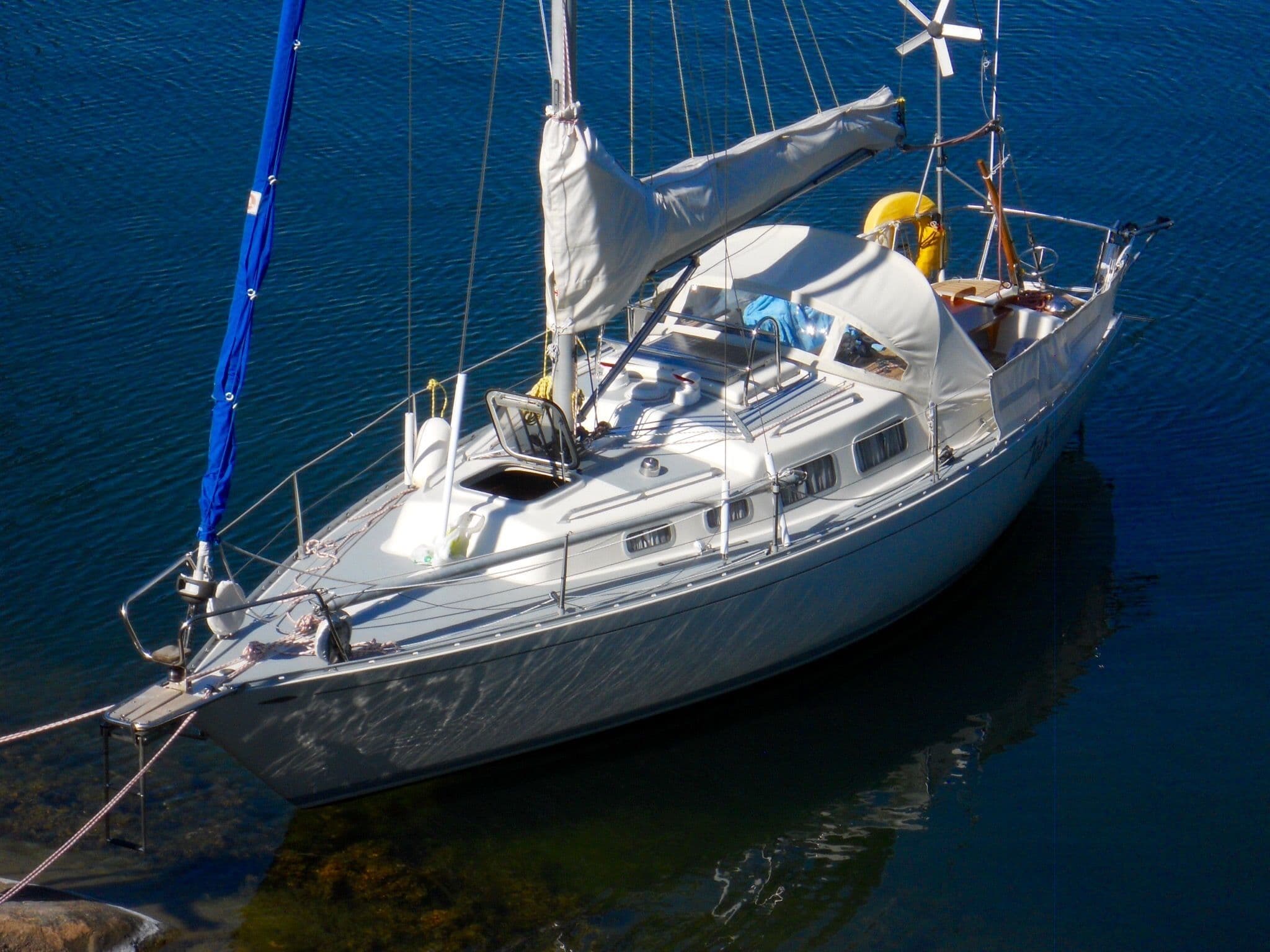

The Shipman 28, also sold as the Baltic 28, is a Swedish sailboat that was designed by Olle Enderlein as a cruiser and first built in 1969. The design was built by Shipman Sweden AB, Visby and Albin Marine, all in Sweden and Fiberman Composite Racing Products in the Republic of Ireland. About 1,000 boats were completed between 1969 and 1979, but it is now out of production.

The Shipman 28 is a recreational keelboat, built predominantly of fibreglass. It has a masthead sloop rig with aluminum spars, a deck-stepped mast, wire standing rigging and a single set of unswept spreaders. The hull has a spooned raked stem; a raised counter, reverse transom; a skeg-mounted rudder controlled by a tiller and a fixed fin keel.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerAlbin Marine
Maker websitehttps://en.wikipedia.org/wiki/Albin_Marine
ModelShipman 28
First built hull1969
Boat typeSail
CategoryCruiser Boats
Hull typeMonohull
Hull materialMonohull
General
NameValue
Top speed10.44 kmh
Length overall8.57 m
Length at waterline7.19 m
Beam overall2.62 m
Headroom1.58 m
Draft minimum1.55 m
Displacement2,800.02 kg
Ballast weight1,210.18 kg
Helm1 tiller
Rudder1 rudder on skeg
CockpitClosed aft cockpit
Designer
NameValue
Naval architect
Name/StudioOlle Enderlein
Rig & Sails
NameValue
SparsMast and boom in Aluminum
Standing rigging1x19 strand wire continuous
Number of spreaders1
Spreaders angle0 °
Upwind sail area42.83 sq.m
Downwind sail area76.27 sq.m
Mainsail A175.00
Spinnaker A646.00
Engine
NameValue
Engine A
Power12 HP
TypeInboard engine ; Diesel
Engine B
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.05
Upwind SA to Displacement21.93
Downwind SA to Displacement39.05
Hull Displacement Speed 0.05
Displacement to Length (D/L) 6.51
Ballast to Displacement (B/D) 0.43
Capsize Screening Formula (CSF) 1.88
