Boat Overview

Boat Description

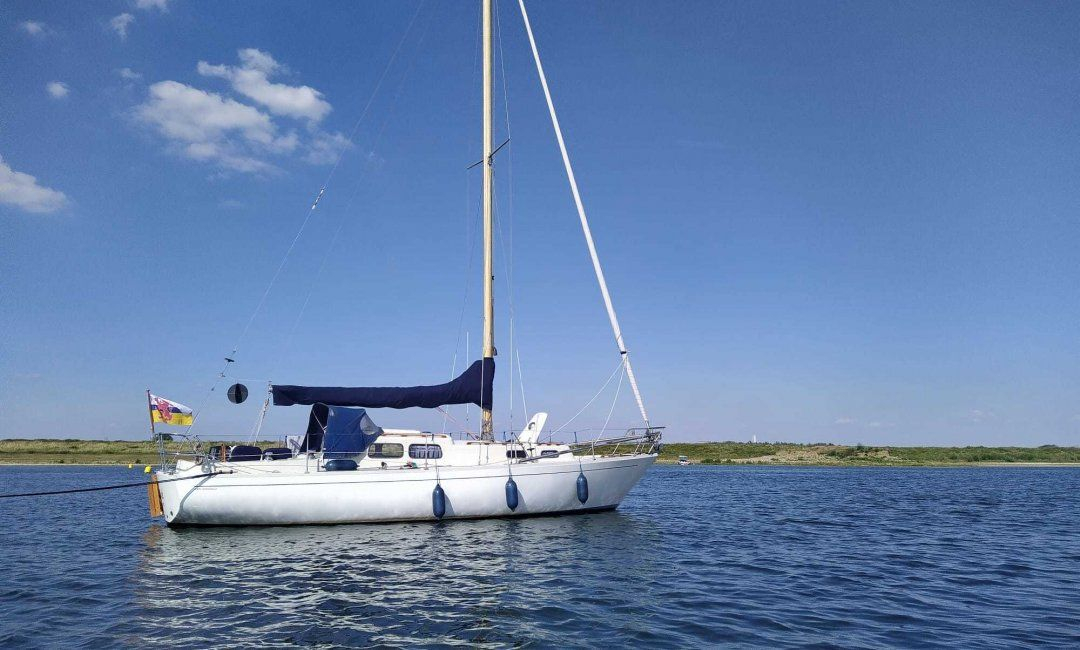

The Singoalla 34, also called the Albin Singoalla, is a Swedish sailboat designed by Per Brohäll as a cruiser and first built in 1970. The boat's designation is from a gypsy woman's name from a medieval legend and film.

The Singoalla 34 is a recreational keelboat, built predominantly of fibreglass, with wood trim. It has a masthead sloop rig with aluminum spars, a deck-stepped mast, wire standing rigging and a single set of unswept spreaders. The hull has a raked stem, a slightly angled transom, a skeg-mounted rudder controlled by a wheel and a fixed fin keel. It displaces 8,820 lb (4,001 kg) and carries 3,750 lb (1,701 kg) of ballast

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerAlbin Marine
Maker websitehttps://en.wikipedia.org/wiki/Albin_Marine
ModelSingoalla
First built hull1970
Boat typeSail
CategoryCruiser BoatsMotorsailer BoatsDaysailer Boats
Hull typeMonohull
Hull materialMonohull
General
NameValue
Top speed11.27 kmh
Length overall10.32 m
Length at waterline8.33 m
Beam overall3.3 m
Draft maximum1.58 m
Displacement4,000.68 kg
Ballast weight1,700.97 kg
Helm1 wheel
Rudder1 rudder on skeg
CockpitClosed aft cockpit
Designer
NameValue
Naval architect
Name/StudioPer Brohäll
Rig & Sails
NameValue
SparsMast and boom in Aluminum
Standing rigging1x19 strand wire continuous
Number of spreaders1
Spreaders angle0 °
Upwind sail area62.62 sq.m
Downwind sail area113.34 sq.m
Mainsail A251
Headsail A182
Spinnaker A969
Spinnaker A423
Spinnaker A290
Engine
NameValue
Engine A
FuelDiesel
ModelAD-21
Power22 HP
TypeInboard
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.06
Upwind SA to Displacement23.19
Downwind SA to Displacement41.98
Hull Displacement Speed 0.06
Displacement to Length (D/L) 7.01
Ballast to Displacement (B/D) 0.43
Capsize Screening Formula (CSF) 2.1
