1965 Albin Marine Vega

2995

Report error

1965 Albin Marine Vega

No gallery images

1965 Albin Marine Vega
Preview

Boat Overview

Boat Description

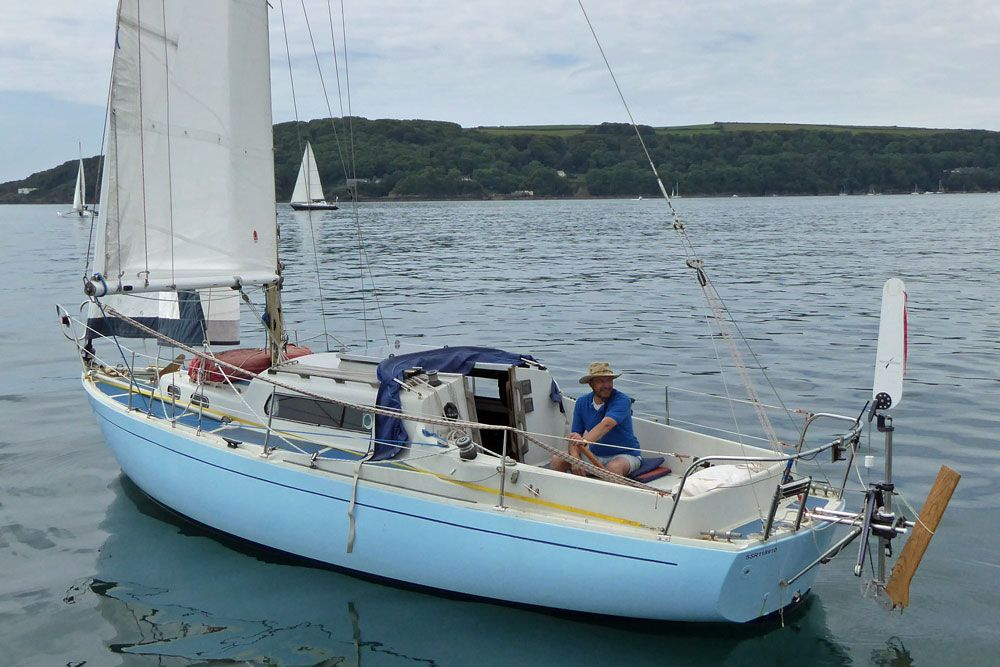

The Albin Vega, also called the Vega 27, is a Swedish sailboat that was designed by Per Brohäll as cruiser and first built in 1965. The design was built by Albin Marine in Sweden from 1965 until 1979, with about 3,450 boats completed, but it is now out of production. The Vega 27 is probably the most produced Scandinavian keelboat.

The Vega is a recreational keelboat, built predominantly of fibreglass, with wood trim. It has a masthead sloop rig with aluminum spars, a deck-stepped mast, wire standing rigging and a single set of unswept spreaders. The hull has a slightly reverse sheer line, a spooned raked stem, an angled transom, a keel-mounted rudder controlled by a tiller and a fixed modified long keel, with a cutaway forefoot.



Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerAlbin Marine
Maker websitehttps://en.wikipedia.org/wiki/Albin_Marine
ModelVega
First built hull1965
Last built hull1979
Price8,733 $
Boat typeSail
CategoryCruiser BoatsMotorsailer BoatsDaysailer Boats
Hull typeMonohull
Hull materialMonohull
General
NameValue
Top speed10.7 kmh
Length overall8.25 m
Length at waterline7.01 m
Beam overall2.46 m
Draft maximum1.12 m
Displacement2,299.71 kg
Ballast weight914.9 kg
Ballast typeCast iron
Helm1 tiller
Rudder1 rudder on skeg
CockpitClosed aft cockpit
Designer
NameValue
Naval architect
Name/StudioPer Brohäll
Rig & Sails
NameValue
SparsMast and boom in Aluminum
Standing rigging1x19 strand wire continuous
Number of spreaders1
Spreaders angle0 °
Upwind sail area37.44 sq.m
Downwind sail area61.78 sq.m
Mainsail A159
Headsail A145
Spinnaker A506
Spinnaker A243
Spinnaker A212
Engine
NameValue
Engine A
FuelDiesel
MakerVolvo Penta
Power10 HP
TypeInboard
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.04
Upwind SA to Displacement21.85
Downwind SA to Displacement36.06
Hull Displacement Speed 0.04
Displacement to Length (D/L) 6.43
Ballast to Displacement (B/D) 0.4
Capsize Screening Formula (CSF) 1.88
