1966 Albin Marine Viggen 23

Boat Overview

Boat Description

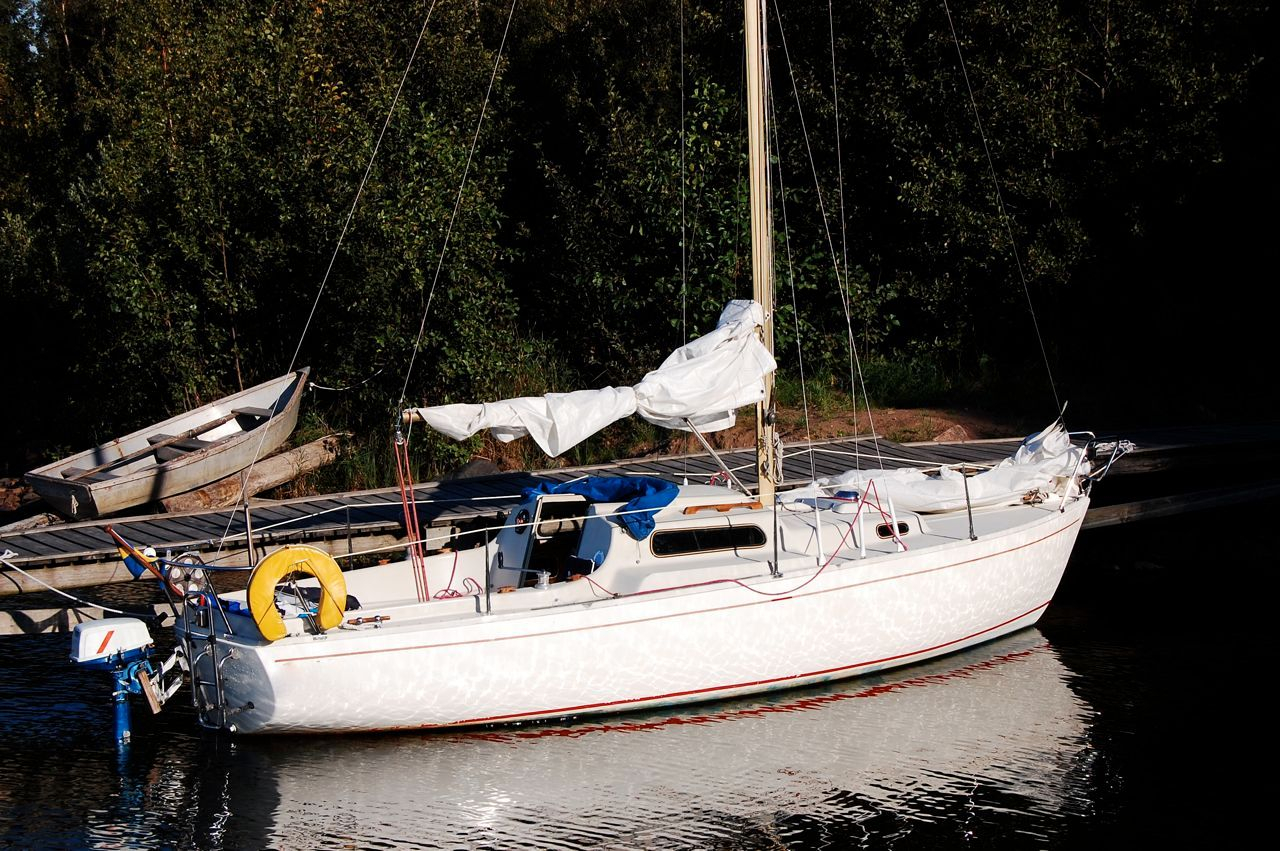

The Viggen 23, also called the Albin Viggen, is a Swedish trailerable sailboat that was designed by Per Brohäll as a cruiser.

The Viggen 23 is a recreational keelboat, built predominantly of fibreglass, with wood trim. It has a masthead sloop rig with aluminum spars, a deck-stepped mast, wire standing rigging and a single set of unswept spreaders. The hull has a spooned raked stem, an angled transom, a skeg-mounted rudder controlled by a tiller and a fixed fin keel.

The design was built by Shipyard Karlskrona in Sweden from 1966 to 1971. It then had its rudder and keel modified and was built by Albin Marine from 1971 until 1977. A total of about 1,450 boats were built, but it is now out of production.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Gold for Free


MakerAlbin Marine
Maker websitehttps://en.wikipedia.org/wiki/Albin_Marine
ModelViggen 23
First built hull1966
Last built hull1971
Boat typeSail
CategoryCruiser BoatsDaysailer Boats
Hull typeMonohull
Hull materialMonohull
Top speed9.58 kmh
Length overall7.1 m
Length at waterline6.1 m
Beam overall2.24 m
Draft maximum1.11 m
Displacement1,399.78 kg
Ballast weight600.1 kg
Helm1 tiller
Rudder1 rudder on skeg
CockpitClosed aft cockpit
Naval architect
Name/StudioPer Brohäll
Rig & Sails
SparsMast and boom in Aluminum
Standing rigging1x19 strand wire continuous
Number of spreaders1
Spreaders angle0 °
Upwind sail area29.73 sq.m
Downwind sail area53.23 sq.m
Mainsail A110
Headsail A108
Spinnaker A463
Spinnaker A210
No data
No data

Performance & Ratios

Sail Area to Displacement (SA/D) 8.31
Upwind SA to Displacement24.16
Downwind SA to Displacement43.26
Hull Displacement Speed 5.96
Displacement to Length (D/L) 177.48
Ballast to Displacement (B/D) 42.87
Capsize Screening Formula (CSF) 2.03
