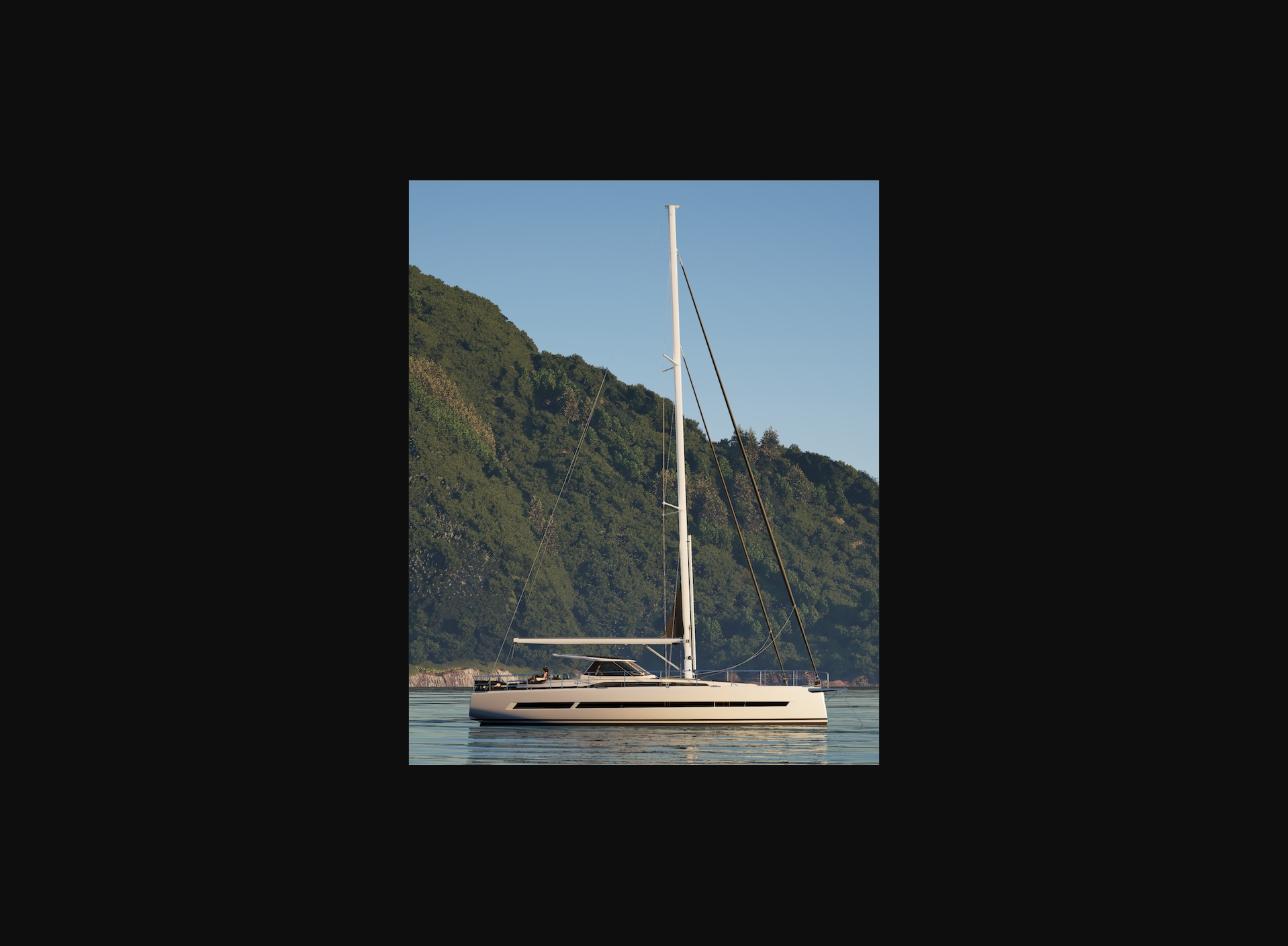

AMEL 50.2 sailing yacht
AMEL 50.2 sailing yacht
2026 Amel 50.2

Boat Overview

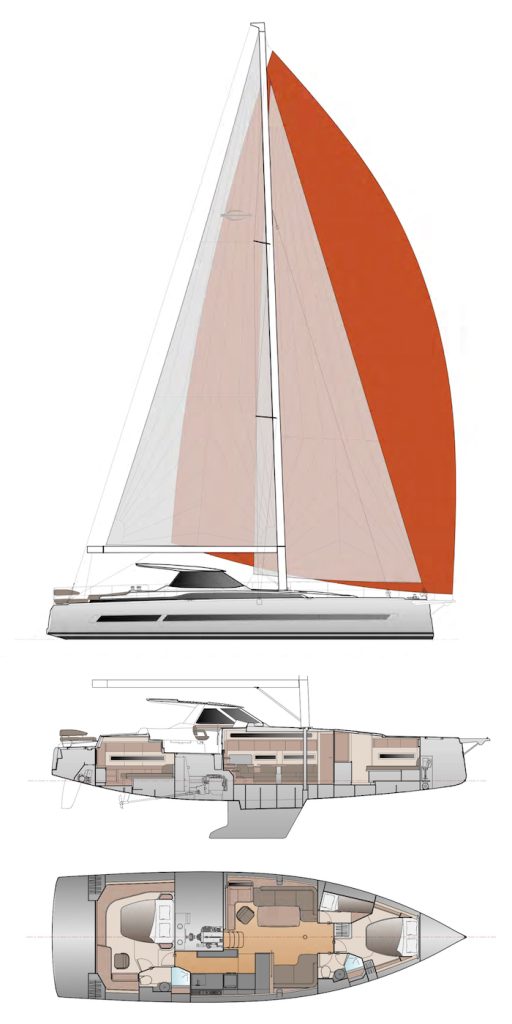

  • Amel-50.2-drawing-512x1024.jpeg
    • Plan view
    • Floor plan
    • Side view
    0.05MB Download

Overview

Specs
Main
General
Designer
Rig & Sails
Engine
Storage
Performance & Ratios
Detail

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
MakerAmel
Maker websitehttps://www.amel.fr
Model50.2
First built hull2026
Version50.2
Boat typeSail
CategoryKeel BoatsSloop Boats
Hull typeMonohull
Hull materialFiberglass
General
Top speed15.08 kmh
Mast height7.71 m
Length overall5.09 m
Length at waterline4.54 m
Beam overall1.52 m
Beam hull1.28 m
Draft maximum0.67 m
Displacement9,943 kg
Ballast weight2,812 kg
Ballast typeCast iron
RudderSpade rudder
Designer
Naval architect
Name/StudioBerret-Racoupeau Yacht Design
Websitehttp://www.berret-racoupeau.com/
Rig & Sails
Mast25.3
Upwind sail area12.54 sq.m
Mainsail A71 m2
Headsail A64 m2
Engine
Engine A
Fueldiesel
Power150 HP
Storage
Fuel tank A670 L
Water tank A600 L

Performance & Ratios

Detail
Sail Area to Displacement (SA/D) 17.52
Upwind SA to Displacement17.52
Hull Displacement Speed 9.37
Displacement to Length (D/L) 184.68
Ballast to Displacement (B/D) 0.28
Capsize Screening Formula (CSF) 1.8
