Jacques Carteau

santorin 1

santorin 2

Fiberglass

<p>Monohull boats are vessels with just one hull, as the name itself suggests. They can be monohull <a href="https://theboatdb.com/boats/type/sail">sailboats</a> or <a href="https://theboatdb.com/boats/type/power">powerboats</a>, which means they can be powered by an engine or by the wind. In addition, monohull boats can have a high level of luxury on board and can therefore be referred to as monohull yachts. At TheBoatDB you can look into monohull boats and explore their features. In addition, you can filter your search through monohull sailboat manufacturers and explore all models available on our site. Compare all models on our website from the comfort of your home.</p>

Monohull

santorin-1_1585742941

Factory

Amel

Euro

Symmetric spinnaker

<p>The category of sailboats includes both <a href="https://theboatdb.com/boats/category/daysailer">sailing yachts</a> which are luxurious and charming vessels used for recreational purposes, as well as <a href="https://theboatdb.com/boats/category/cruiserracer">racing sailboats</a> that are used for sports. Some have a single hull while others can have two or three. Compare different types of sailboats through sailing boat specs on TheBoatDB and find out the best one for you. Choose according to boat specs, and explore sailboats that vary from very large vessels, appropriate for ocean cruising, to small ones used to roam the shores.</p>

Name	Value
Maker	Amel
Maker website	https://www.amel.fr
Model	Santorin
First built hull	1989
Price	264,000 €
Boat type	Sail
Category	Cruiser Boats Center Cockpit Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	12.78 kmh
Mast height	16.79 m
Length overall	13.75 m
Length at waterline	10.7 m
Beam overall	3.99 m
Draft maximum	1.89 m
Displacement	11,000.06 kg
Ballast weight	3,699.95 kg
Helm	1 wheel
Rudder	1 rudder on skeg
Cockpit	Central cockpit

Name	Value
Naval architect
Name/Studio	Jacques Carteau

Name	Value
Mast	55.1
Spars	Mast and boom in Aluminum
Standing rigging	1x19 strand wire
Number of spreaders	2
Spreaders angle	0 °
Upwind sail area	90.02 sq.m
Downwind sail area	115.01 sq.m
Mainsail A	248.00
Spinnaker A	614.00

Name	Value
Engine A
Power	50 HP
Type	Inboard engine ; Diesel
Engine B

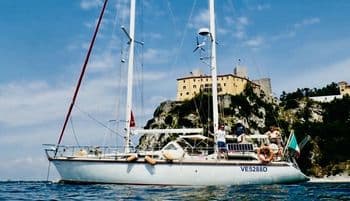

1989 Amel Santorin

Boat Overview

Type

Maker

Hull type

Hull Material

Fiberglass

Category

Boat length (LOA)

13.75 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	4.74
Upwind SA to Displacement	18.51
Downwind SA to Displacement	23.65
Hull Displacement Speed	7.94
Displacement to Length (D/L)	250.36
Ballast to Displacement (B/D)	33.64
Capsize Screening Formula (CSF)	1.81
