Boat Overview
Type
Maker
Hull type
Hull Material
Composite_Material
Category
Boat length (LOA)
16.03 m
Specs
Main
| Maker | Amel |
| Maker website | https://www.amel.fr |

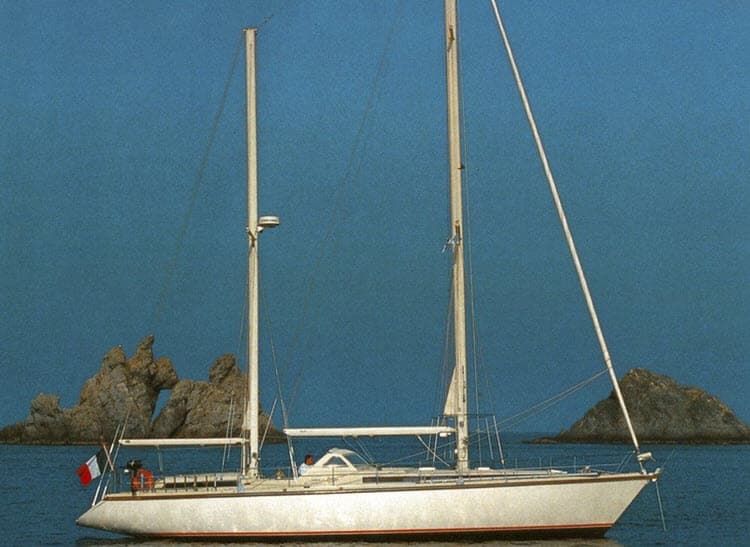

| Model | Super Maramu 2000 |
| First built hull | 2000 |
| Boat type | Sail |
| Category | Cruiser BoatsCenter Cockpit Boats |
| Hull type | Monohull |
| Hull material | Composite_Material |
General
| Top speed | 13.87 kmh |
| Mast height | 20.06 m |
| Length overall | 16.03 m |
| Length at waterline | 12.62 m |
| Beam overall | 4.6 m |
| Beam hull | 2.04 m |
| Draft maximum | 2.07 m |
| Displacement | 16,000 kg |
| Ballast weight | 5,499.8 kg |
| Ballast type | Lead |
| Helm | 1 wheel |
| Rudder | 1 rudder on skeg |
| Cockpit | Central cockpit |
Designer
| Naval architect | |
| Name/Studio | Henri Amel ; Jacques Carteau |
Rig & Sails
| Mast | 65.8 |
| Spars | Mast and boom in Aluminum |
| Standing rigging | 1x19 strand wire discontinuous |
| Number of spreaders | 2 |
| Spreaders angle | 0 ° |
| Upwind sail area | 119.01 sq.m |
| Downwind sail area | 141.96 sq.m |
Engine
| Engine A | |
| Power | 100 HP |
| Type | inboard |
| Engine B |
Storage
Performance & Ratios
Detail
| Sail Area to Displacement (SA/D) | 0.03 |
| Upwind SA to Displacement | 19.06 |
| Downwind SA to Displacement | 22.74 |
| Hull Displacement Speed | 0.03 |
| Displacement to Length (D/L) | 8.62 |
| Ballast to Displacement (B/D) | 0.34 |
| Capsize Screening Formula (CSF) | 1.84 |
