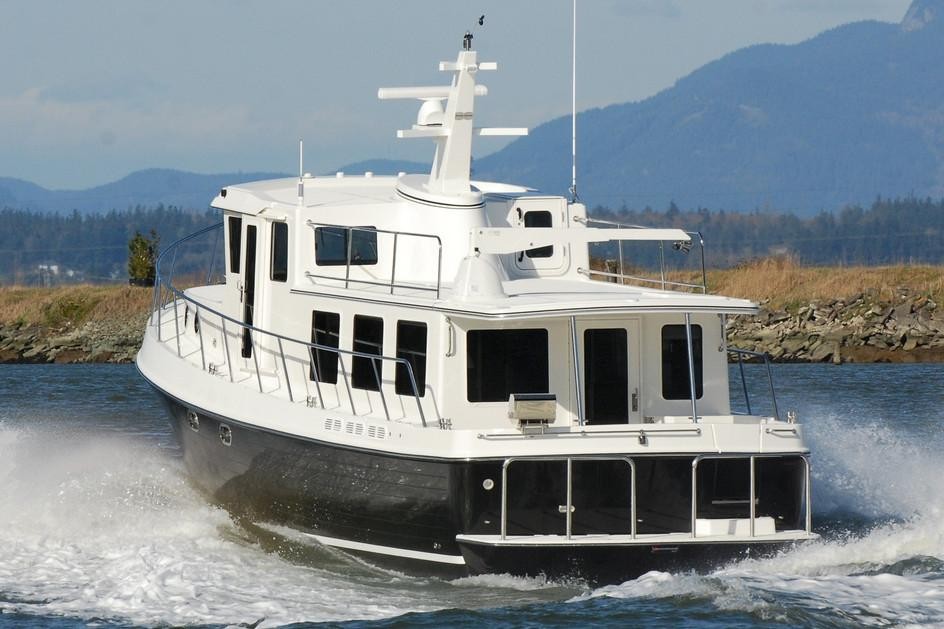

With over 5 1/2 feet of additional length in the salon/galley over the 435, the&nbsp;485 American Tug model will lend itself to full time live aboards and extended expedition cruising. The performance will be exceptional with the standard 550 HP Cummins engine and optional 405 HP commercial rated QSL9. Standard fuel is 640 US gallons giving her a range over 1500 nautical miles. The 485 comes standard with the Sidepower SEP Thruster System. The bow and stern thruster are variable speed DC giving performance similar to hydraulic thrusters of the same size. The large engine room is equipped with bright, white surfaces and LED lights to make maintenance more comfortable. The powerplant is centrally located in the engine room for ease of access to all components. AGM batteries provide nearly 1000 Ah of capacity while a Northern Lights generator will help charge them back up when away from the dock. Overall, the 485 will appeal to the yachtsman looking to explore beyond the horizon but one who refuses to leave the comforts of home behind. The seakeeping ability of the proven Lynn Senour designed hulls will keep you calm in the roughest of conditions.


Pilothouse

 Partially recessed Helm console for custom electronics installation, plus overhead console
 Center upholstered helm chair
 Ultraleather covered crew seating behind the helm w/ table
 Storage under seating
 Chart storage compartment and accessory drawer
 Starboard side hanging locker w/ add. Seat and 1.9 cuft freezer under.
 Stainless hand holds throughout
 Lighted compass
 Red lights over helm station for night navigation
 Intermittent windshield wipers w/ self park and washing system
 12v and 110v outlets
 Six opening windows and screens
 Icemaker
 Mini blinds in aft and aft/side window valances


Salon

 Custom Ultraleather settee
 Solid hardwood table w/drop leaves and floating base
 Storage cabinets
 Hatch allowing access to engine compartment
 In-house vacuum system&nbsp;
 Entertainment system w/ 40” flat screen TV and AM/FM/CD/DVD player
 Pleated day/night shades + 110v outlets
 Three opening windows w/ screens on each side


Galley

 Marine propane 3-burner cooktop and oven
 5.8 cuft refrigerator and freezer
 Convection microwave oven over cooktop
 Hard Surface countertops w/ stainless undermount sink
 Drawers
 Multiple 110v outlets
 Sapele and Maple sole
 Dinette w/ seating for four w/ folding table &amp; storage


Master Stateroom

 Center island queen berth (76”L x 60” W - tapered at foot)
 En suite head
 Nightstand on each side of berth w/ drawers underneath
 Reading lights
 Three drawers w/ mirror above
 Large aromatic cedar lined hanging locker
 Two stainless steel ports w/ screens
 Three 110v outlets
 Mini blinds over ports
 Bookshelf above headboard


Guest Stateroom

 Large side berth (77”L X 61”W - tapered at foot) with optional bunk available
 En suite head
 Hanging locker
 Four large drawers under berth
 Overhead opening screened hatch
 Two stainless steel port lights w/ screens
 Stacked Washer and Dryer 240v
 Upper bunk
 Companionway access to guest head


Heads

 Fresh water 12v toilets
 Vanity and mirror w/ overhead lighting
 Vanity light in forward head
 Built-in shower stalls w/ seat
 Hard Surface counters with stainless undermount sink
 Sapele and Maple sole
 Stainless steel ports w/ screens&nbsp;
 110v outlets


Interior Finish
&nbsp;

 Cabinetry w/ sapele veneers, solid sapele trim and drawer fronts
 Overhead and walls in marine grade vinyl w/ foam backing
 High quality carpeting and carpet pad


Heat / Air Systems

 Hydronic diesel furnace 32,000 BTU on West Coast models, or 48,000 BTU air conditioning system on East Coast models.
 1000w 110v electric heater in salon
 750w 110v electrical heater in master stateroom and forward head (silent running)


Mechanical Systems

 9kw Northern Lights genset w/ sound shield
 Side-power SEP electric bow and stern thruster system (variable speed DC thrusters)
 2-1/2” main prop shaft w/ dripless shaft seals on main shaft and rudder shaft
 CNC machined Nibral bronze five- bladed propeller meets class “S” specifications&nbsp;
 Composite rudder and skeg&nbsp;
 Reverso Oil changing system for main, gear and genset&nbsp;
 Racor filter for genset&nbsp;
 Dual Racor filters for main engine
 Seawater strainers on engine, genset and air conditioning systems&nbsp;
 Underwater exhaust system for main engine and generator&nbsp;
 Heavy duty sound deadening throughout engine room&nbsp;
 Two 2000 gph bilge pumps and One 3700 gph pump w/ automatic float switches
 Waste discharge system w/ macerator
 Electronic shift and throttle system
 High water alarm system
 Shower sump system w/ high water alarm
 Steelhead Marine WD800 crane w/ hydraulic luffing


Electrical

 AC and DC distribution panels in pilothouse w/ digital meter
 Battery selector switch system&nbsp;
 Battery combiner system for charging
 Four 8-D AGM batteries for house (980 amp hours)
 One 8-D AGM battery for main engine start&nbsp;
 One 8-D AGM battery for bow thruster&nbsp;
 One group 27AGM battery for generator start&nbsp;
 Magnum 2000w inverter/charger&nbsp;
 50A /240V shore cord w/ reel
 Defroster system for windshield in pilothouse
 Two nautical mile international LED navigation lights
 Buell 12v dual trumpet air horn
 LED Lighting throughout
 12v LED courtesy lights throughout boat


Steering

 Autopilot valve system installed
 Stainless steel Edson Steering wheel
 Hydraulic helm pump and cylinder
 Integral rudder port w/ bearing and dripless seal


Tankage

 Tank monitoring system w/ digital readout
 Fresh water pressure system w/ accumulator tank
 Two FRP water tanks (200 gallons total)
 11 gallon water heater w/ heat exchanger and 110v heat
 Taste/odor filter for galley fresh water&nbsp;
 60 gallon waste tank&nbsp;
 Two aluminum fuel tanks (640 gallons total) each w/ sight glass w/ valves


Deck

 Molded non-skid walking surfaces
 Three Bomar hatches in trunk cabin
 Hinged transom door
 Swim platform
 Cockpit propane / storage locker&nbsp;
 Hot / Cold water shower in transom
 Seawater Washdown system in bow &amp; stern
 2” fuel fills
 Two 1-1/2” water fill fittings&nbsp;
 One 1-1/2” waste pump out fitting
 316 stainless steel 1-1/2” bow and side deck rails&nbsp;
 316 stainless steel 1-1/2” upper deck rails&nbsp;
 316 stainless steel ladder from cockpit to upper deck&nbsp;
 316 Stainless steel bow roller&nbsp;
 Color matched powder coated aluminum framed windows and sliding or hinged doors&nbsp;
 Fiberglass mast&nbsp;
 Recessed line holder in cockpit


Safety and Mooring

 Windlass with all chain rode
 Four portable fire extinguishers&nbsp;
 Six fenders and mooring lines&nbsp;
 66lb claw style anchor&nbsp;
 Secondary bow roller w/ 35lb Delta anchor and 20’ 5/16” chain, 200’ 9/16” line
 Nine custom “h-bitt” mooring cleats (316 stainless steel)&nbsp;
 Automatic fire extinguisher in engine room&nbsp;
 Automatic engine shut down and bypass + Ships bell


Hull

 10-year warranty (workmanship and blisters)
 Solid bottom laminate
 Vacuum Bagged Cored hull side above waterline (adds strength, insulation and sound nullification)
 Black hull-guard w/ stainless steel insert
 Black anti-fouling paint (two coats)
 Painted boot stripe
 Molded composite skeg protects props and supports rudder
