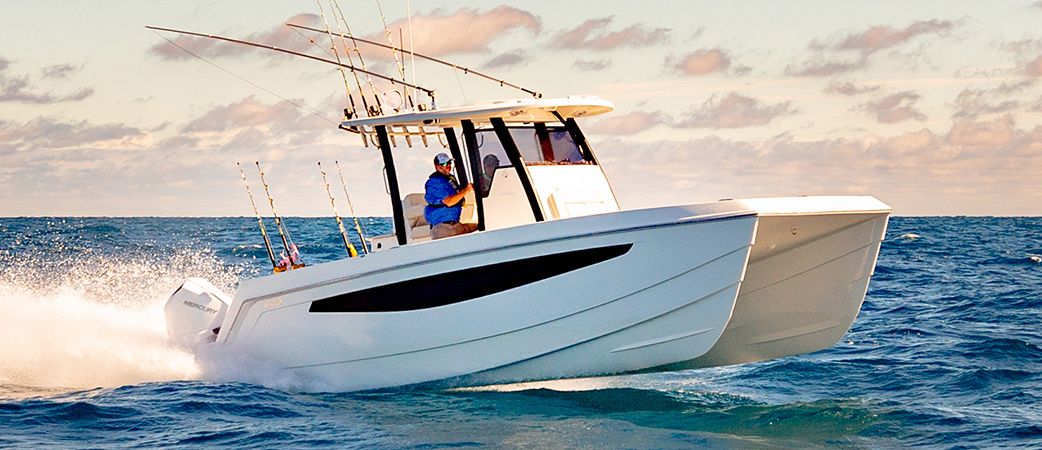

Aquila 28 Molokai centre-console power catamaran running at speed

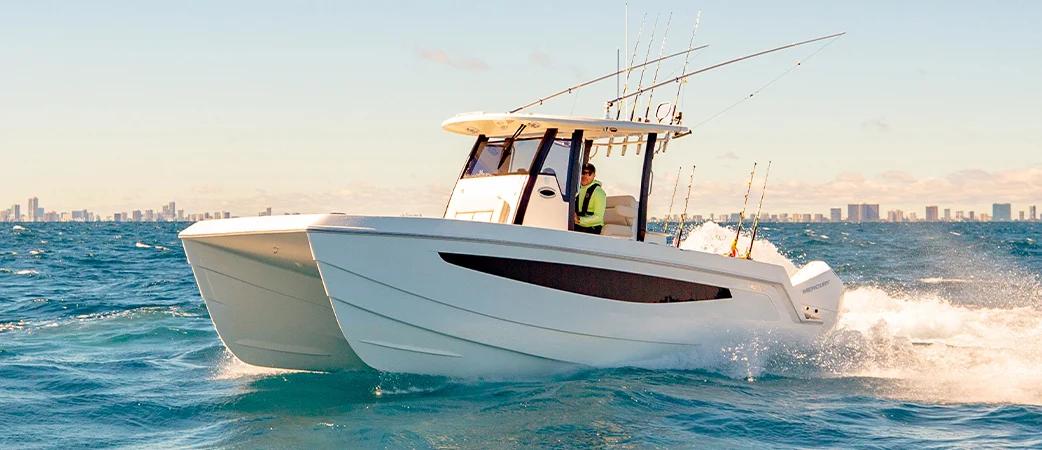

Aquila 28 Molokai at speed at sunset, starboard side view

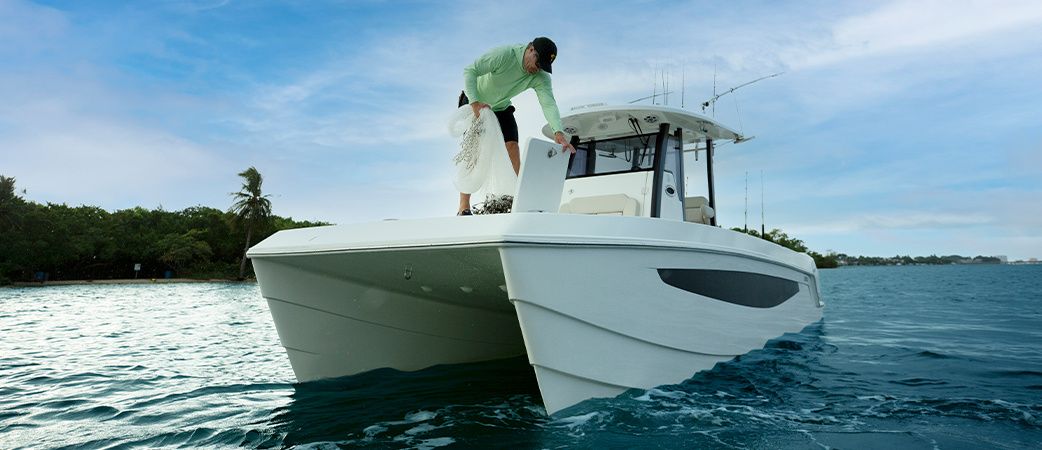

Angler on the bow of the Aquila 28 Molokai, showing the twin hulls

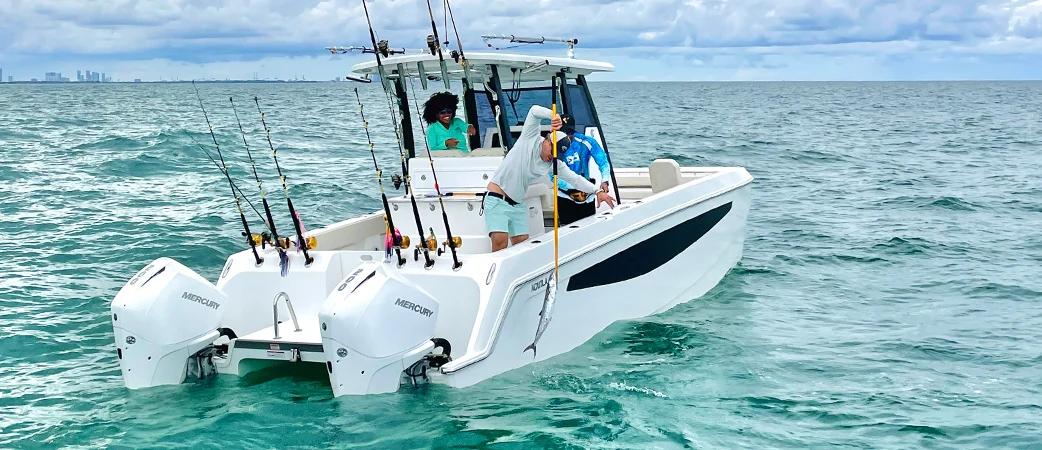

Aquila 28 Molokai from astern with twin outboards and rods in the hardtop rocket launchers
Anglers fishing from the Aquila 28 Molokai cockpit
Guests relaxing on the Aquila 28 Molokai bow seating

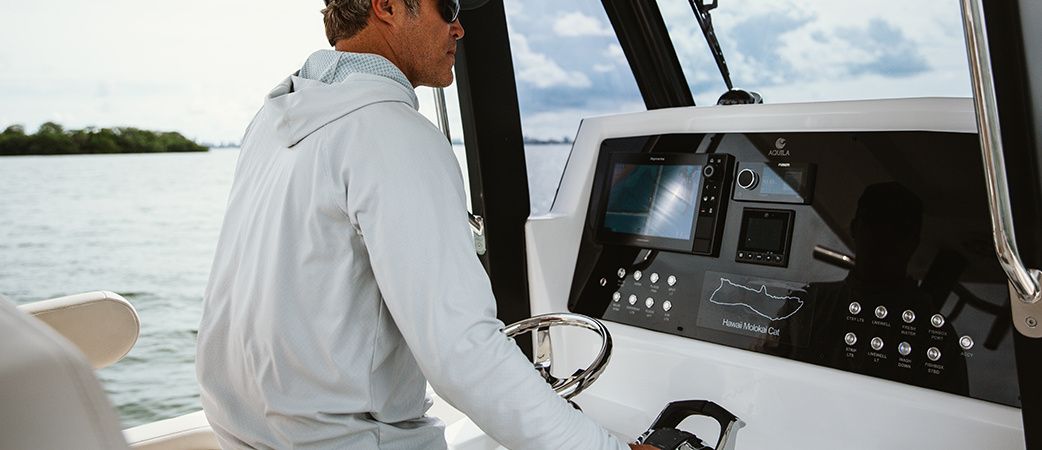

Aquila 28 Molokai centre-console helm with multifunction display
Aquila 28 Molokai centre-console power catamaran running at speed
Aquila 28 Molokai at speed at sunset, starboard side view
Angler on the bow of the Aquila 28 Molokai, showing the twin hulls
Aquila 28 Molokai from astern with twin outboards and rods in the hardtop rocket launchers
Anglers fishing from the Aquila 28 Molokai cockpit
Guests relaxing on the Aquila 28 Molokai bow seating
Aquila 28 Molokai centre-console helm with multifunction display

Boat Overview

Boat Description

Aquila 28 Molokai: Born from the Pacific, Built to Fish

1. General Information

The Aquila 28 Molokai is a rugged, nimble and highly capable centre-console power catamaran, the open sibling of the 28 Molokai Cuddy and the boat that launched Aquila's Offshore line in December 2021. Measuring 9.38 m overall with a 2.96 m beam, its hull was inspired by outrigger canoe racing across the Hawaiian channel between Maui and Molokai, and it is built to handle Pacific swell and short Atlantic chop with equal poise.

A broad stance makes it easy to walk right around the console, while well-placed controls give the skipper a 360-degree view. The fishing kit is serious: two insulated fish boxes totalling 712 L, a 113 L livewell, a rigging station with sink and cutting board, and two FRP-lined deck lockers. When the rods are stowed, the split bow seating takes ten or more guests for sandbar days, tow sports and dockside dining, and 570 L of fuel in twin aluminium tanks gives useful offshore range.

2. Construction and Design

Aquila builds the 28 Molokai with vinylester resin infusion for the hull, deck, cockpit floor and bulkheads over an infused fibreglass structural grid, finished in white gelcoat and covered by a five-year hull and deck structural warranty. Each hull is split into four separate compartments that can be individually drained or isolated, adding a valuable margin of safety offshore.

The builder claims the highest tunnel clearance in its class, creating a better air cushion and reducing hull slap when trolling. A central transom walkthrough with door, a removable boarding ladder, a fibreglass hardtop with dedicated radar and antenna mounts, and a fixed windshield with wiper make it equally practical for anglers, divers and families.

3. Key Features

Proven Hawaiian hull: Developed in rough island channels for a stable, dry and confident ride offshore.

360-degree fishability: Wide side decks let anglers walk right around the centre console.

Serious fish storage: Twin insulated fish boxes, a 113 L livewell and generous tackle storage.

Versatile bow seating: Split bow seating with storage below seats ten or more guests.

Twin outboards: Twin Mercury 150 hp as standard, with optional twin 225 hp.

4. Summary

The Aquila 28 Molokai is aimed at anglers, divers, tournament competitors and charter operators who want a tough, stable and dry offshore catamaran, as well as families looking for a versatile day boat. It suits owners who value seakeeping, safety and open deck space in a compact centre console that is simple to run and maintain.

  • Aquila, 28 Molokai, Side-view.png

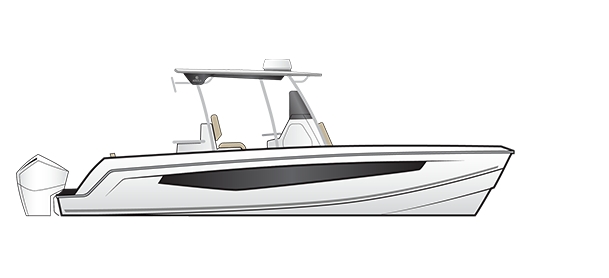

    • Side view
    0.04MB Download
  • Aquila, 28 Molokai, Brochure, Floor-plan.pdf
    • Brochure
    • Floor plan
    0.85MB Download

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
MakerAquila
Maker websitehttps://www.aquilaboats.com
Model28 Molokai
First built hull2021
Version28
Boat typePower
CategoryCatamaran BoatsCenter Console BoatsSport Fishing BoatsOutboard Boats
Hull typeCatamaran Boats
Hull materialFiberglass
General
Length overall2.86 m
Beam overall0.9 m
Draft maximum0.23 m
Displacement1,269 kg
HelmCentre-console helm under fibreglass hardtop
CE classification B8
CE classification C12
CE classification D14
Designer
Rig & Sails
Engine
Engine A
Fuelgasoline
MakerMercury
Model150
Power150 HP
TypeOutboard
Engine B
Fuelgasoline
MakerMercury
Model150
Power150 HP
TypeOutboard
Storage
Fuel tank A285 L
Fuel tank B285 L
Water tank A60 L

Performance & Ratios

Detail
Capsize Screening Formula (CSF) 2.12
