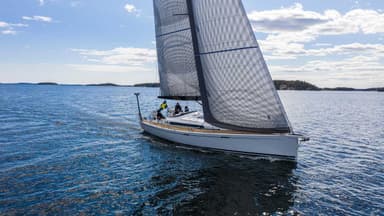

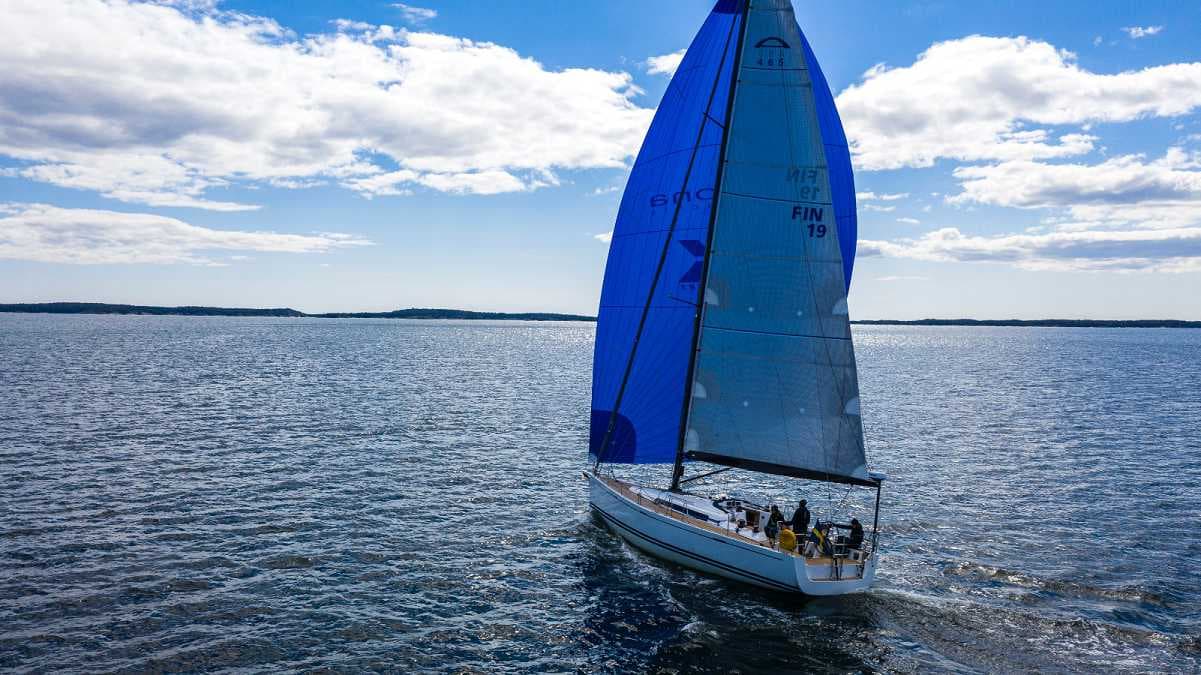

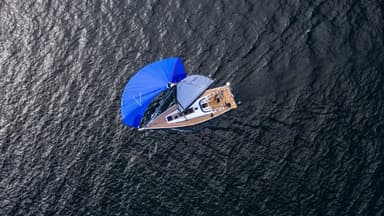

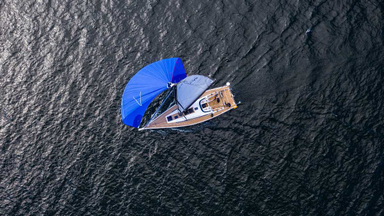

2016 Arcona Yachts 465 Carbon

3971

Report error

2016 Arcona Yachts 465 Carbon
2016 Arcona Yachts 465 Carbon
2016 Arcona Yachts 465 Carbon
2016 Arcona Yachts 465 Carbon
2016 Arcona Yachts 465 Carbon
2016 Arcona Yachts 465 Carbon
2016 Arcona Yachts 465 Carbon
2016 Arcona Yachts 465 Carbon
2016 Arcona Yachts 465 Carbon
2016 Arcona Yachts 465 Carbon
2016 Arcona Yachts 465 Carbon
2016 Arcona Yachts 465 Carbon
Preview
2016 Arcona Yachts 465 Carbon
Preview
2016 Arcona Yachts 465 Carbon
Preview
2016 Arcona Yachts 465 Carbon
Preview
2016 Arcona Yachts 465 Carbon
Preview
2016 Arcona Yachts 465 Carbon
Preview
2016 Arcona Yachts 465 Carbon
Preview
2016 Arcona Yachts 465 Carbon
Preview
2016 Arcona Yachts 465 Carbon
Preview
2016 Arcona Yachts 465 Carbon
Preview
2016 Arcona Yachts 465 Carbon
Preview

Boat Overview

Boat Description

“This is a sailor’s boat. A pure dynamo generating sailing excitement. She is simply a beautifully balanced, gloriously responsive cruiser’s dream.” – Sailing Today 2017

Built wholly in carbon, the Arcona 465 is a masterpiece. Designed for sailors to enjoy both cruising and racing. She has a handcrafted wood interior with all the comfort of a cruiser, yet she has logged speeds over 24kts. The Arcona 465 is a true performance cruiser, a world class yacht.

The carbon makes her extraordinary successful on the race course and light enough to give initial allowance for the extra gear you would need for your dream of blue water cruising.

Like all boats in the Arcona range, the 465 reflects the quality expected from the Swedish boat builders using the best materials and techniques and hand – picked suppliers; Infusion technology for hull and deck, Bulkheads laminated to the hull for the greatest possible strength.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerArcona Yachts
Maker websitehttps://www.arconayachts.se
Model465 Carbon
First built hull2016
Price779,730 €
Boat typeSail
CategoryCruiser BoatsMotorsailer BoatsRacer BoatsDaysailer Boats
Hull typeMonohull
Hull materialMonohull
General
NameValue
Top speed14.21 kmh
Length overall14.08 m
Length at waterline13.29 m
Beam overall4 m
Draft maximum2.5 m
Displacement9,549.93 kg
Ballast weight3,800.19 kg
Ballast typeCast iron fin with lead bulb
Helm2 wheels
Rudder1 spade rudder
CockpitOpen aft cockpit
Designer
NameValue
Naval architect
Name/StudioStefan Qviberg
Websitehttp://www.sqyachtdesign.se/
Rig & Sails
NameValue
SparsMast and boom in Carbon fiber
Standing riggingSingle-strand (ROD) discontinuous
Number of spreaders2
Spreaders angleSwept-back
Upwind sail area135.92 sq.m
Downwind sail area289.67 sq.m
Mainsail A804
Headsail A659
Spinnaker A2314
Spinnaker A2260
Engine
NameValue
Engine A
FuelDiesel
MakerYanmar
Power57 HP
TypeInboard
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.08
Upwind SA to Displacement30.71
Downwind SA to Displacement65.45
Hull Displacement Speed 0.08
Displacement to Length (D/L) 8.85
Ballast to Displacement (B/D) 0.4
Capsize Screening Formula (CSF) 1.9
