Boat Overview

Boat Description

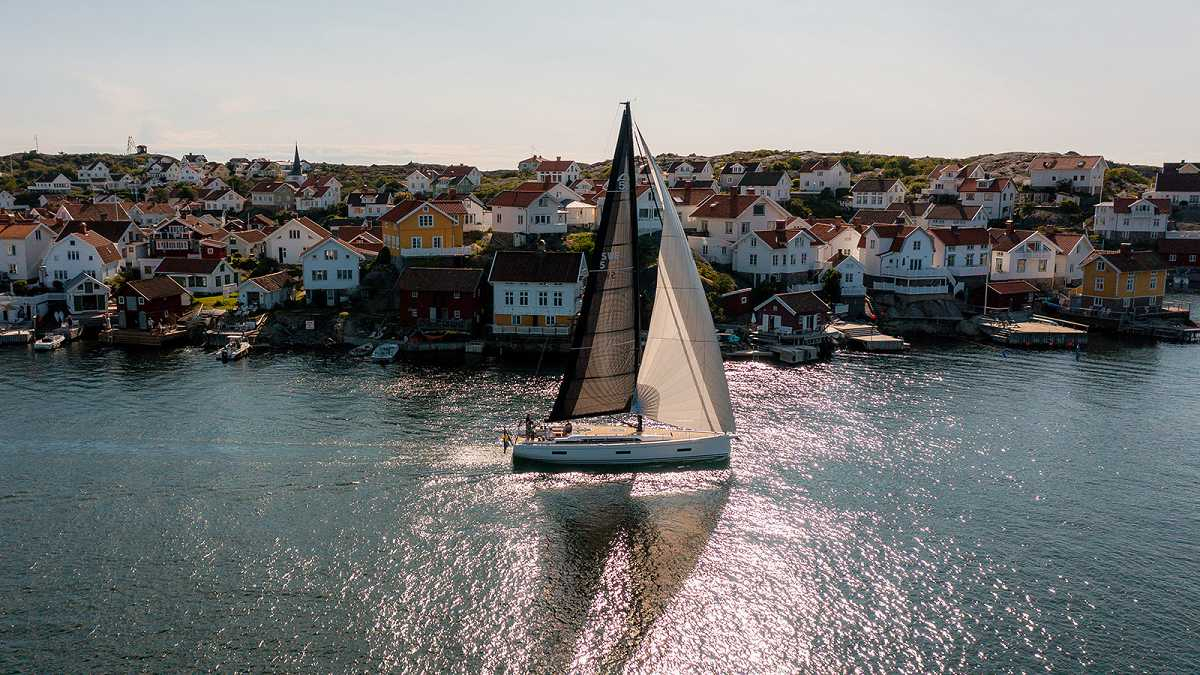

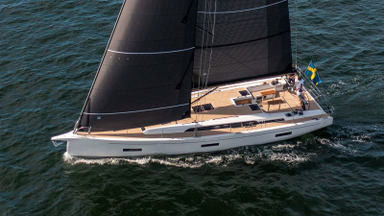

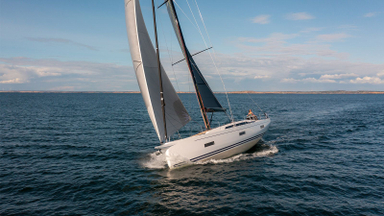

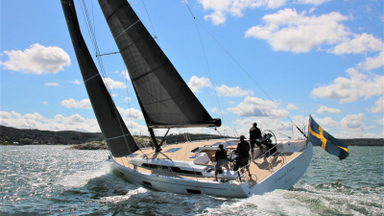

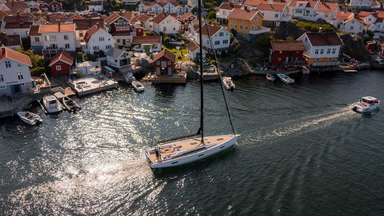

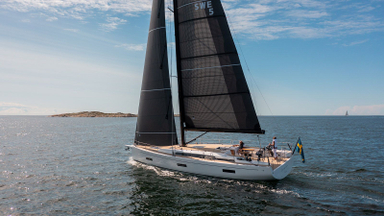

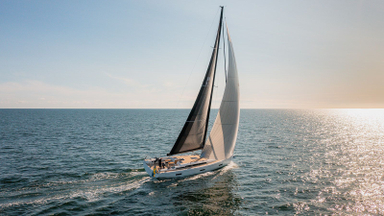

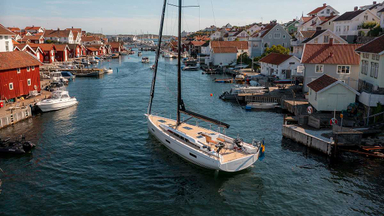

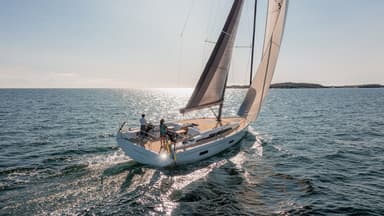

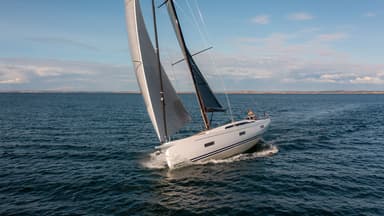

Introducing the Arcona 50, the first model designed by Jeppesen & Pons, and the new flagship of the Arcona fleet. This captivating 50ft performance cruiser marks a step change for Arcona Yachts with a new design collaboration and many new design features.

With over 6000 yachts on the water and a ¾ ton cup winning race pedigree, Principal Designer, Niels Jeppesen, and Yacht Designer & Naval Architect, Ariadna Pons, bring a wealth of experience to Arcona Yachts.

The brief for Jeppesen & Pons’ first Arcona was to design a 50-foot performance cruiser that can be easily handled by two people, while simultaneously delivering in terms of cruising comfort and sailing performance, in true Arcona style. Created to go further, this yacht forges ahead in all design aspects, setting a new standard to meet the high demands of our customers, whether it’s their ambition to go cruising the Stockholm Archipelago or to cross an ocean.

The Arcona 50 is ideal for safe and comfortable long distance performance cruising. In a first for Arcona, this new flagship has twin rudders, with aluminium rudder stocks as a standard, providing more control in the water. Another first for Arcona is the addition of a dinghy garage. Watertight composite bulkheads separate the accommodation from both the bow sail locker and the dinghy garage.

Also new to Arcona are the L-shaped cockpit benches and the two cockpit tables, which improve functionality and enable guests and crew to move around the cockpit more easily under sail. Liferaft locker recessed into the cockpit floor, halyard and sheet lockers under the side decks in front of the helmsman. Aft coaming lockers to hide the yacht’s gas bottles and shore power socket.

The Arcona 50 has twin wheels as standard, and the cockpit layout and the sail handling systems are set up for shorthanded sailing and ease of use.

She has a three-spreader mast with discontinuous rod rigging plus double hydraulic backstay cylinders with a central pumpstation. A carbon mast and furling carbon boom is available as an upgrade. There is an optional inner forestay to attach a furling heavy weather jib for ocean passages. There is also the option for a bowsprit for easily controllable use of asymmetric sails.

The central single mainsheet block is recessed below the cockpit floor. The yacht is available with an electrically operated mainsheet traveller track, also recessed below the cockpit floor, as an upgrade.

Next to the winches, there are dedicated lockers for halyards and sheets enabling the cockpit to be ‘clean’.

Under power, an standard 80hp or optional 100Hp common rail engine propels a folding propeller, keeping vibrations and noise to a minimum. Optional retractable thrusters will secure maximum manoeuvrability in narrow marinas.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerArcona Yachts
Maker websitehttps://www.arconayachts.se
Model50
First built hull2023
Price1,000,000 €
Boat typeSail
CategoryCruiser BoatsMotorsailer BoatsDaysailer Boats
Hull typeMonohull
Hull materialMonohull
Cabins3
Births6
Heads2
General
NameValue
Length overall15.64 m
Length at waterline13.96 m
Beam overall4.57 m
Draft maximum2.19 m
Displacement13,899.87 kg
Designer
NameValue
Naval architect
Name/StudioJeppesen & Pons
Rig & Sails
NameValue
Mainsail A882
Headsail A602.7
Spinnaker A2389
Engine
NameValue
Engine A
FuelDiesel
MakerYanmar
Model4JH80CR
TypeInboard
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Displacement to Length (D/L) 9.07
Capsize Screening Formula (CSF) 1.92
