Boat Overview

Boat Description

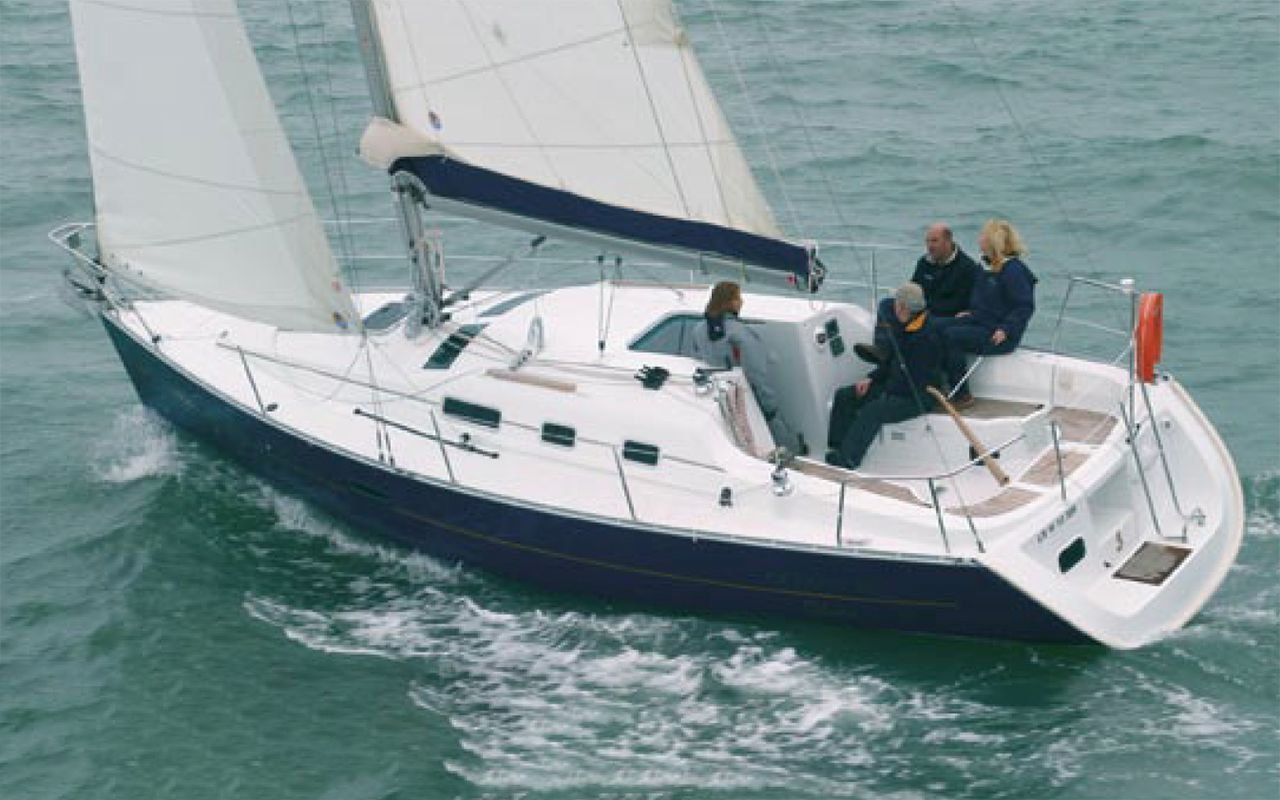

The Beneteau 323 is a recreational keelboat, built predominantly of fibreglass. The hull is single skin polyester fiberglass, while the deck is a polyester fibreglass and balsa sandwich. It has a masthead sloop rig with a deck-stepped mast and aluminium spars, a nearly plumb stem, a rounded reverse transom with a walk-through swimming platform, an internally mounted spade-type rudder controlled by a wheel. Optionally it was built with a fixed fin (shoal draft) keel, deep draft keel or stub keel with a centreboard combination.[1][4]

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerBeneteau
Maker websitehttps://www.beneteau.com
Model 323
First built hull2003
Price60,000 $
Boat typeSail
CategoryCruiser Boats
Hull typeMonohull
Hull materialMonohull
Cabins2
Births4
Heads1
General
NameValue
Top speed11.65 kmh
Mast height14.84 m
Length overall9.78 m
Length at waterline8.9 m
Beam overall3.29 m
Headroom1.98 m
Draft maximum1.56 m
Displacement4,230.2 kg
Ballast weight987.92 kg
Ballast typeCast iron
Helm1 wheel
Rudder1 spade rudder
CockpitClosed aft cockpit
Designer
NameValue
Naval architect
Name/StudioFinot Conq Architectes
Websitehttp://www.finot-conq.com
Rig & Sails
NameValue
Mast48.7
SparsMast and boom in Aluminum
Standing rigging1x19 strand wire continuous
Number of spreaders1
Spreaders angle25 °
Upwind sail area50.73 sq.m
Downwind sail area101.82 sq.m
Mainsail A305
Headsail A241
Spinnaker A791
Engine
NameValue
Engine A
FuelDiesel
Power21 HP
TypeInboard
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.05
Upwind SA to Displacement19.72
Downwind SA to Displacement39.59
Hull Displacement Speed 0.05
Displacement to Length (D/L) 7.24
Ballast to Displacement (B/D) 0.23
Capsize Screening Formula (CSF) 2.05
