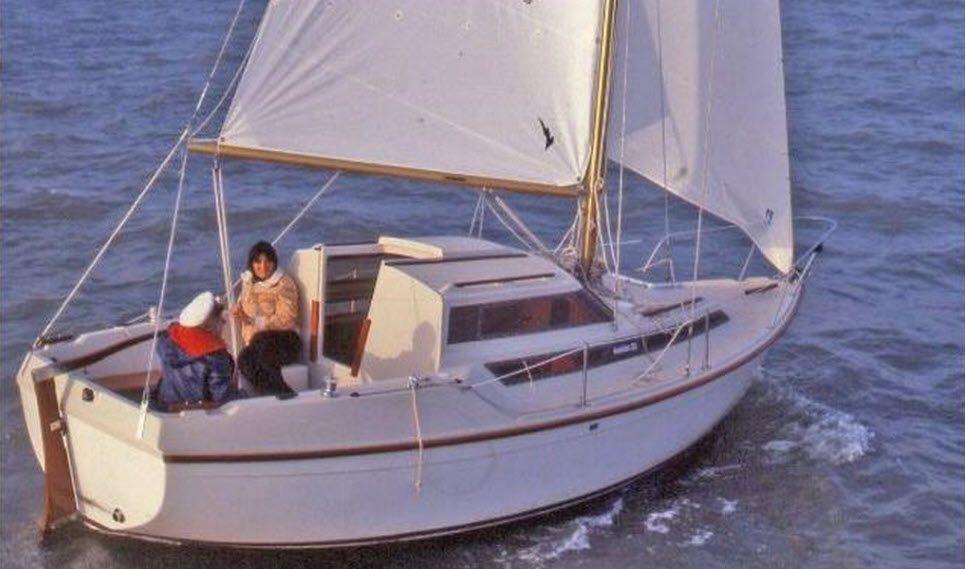

1980 Beneteau Evasion 22

1231

Report error

No gallery images

Boat Overview

Type
Sail
Maker
Beneteau
Hull type
Monohull
Hull Material
Fiberglass
Category
Cruiser Boats
Boat length (LOA)
6.74 m
See all details

Boat Description

Designed as part of the Evasion line, the 22 has all the seafaring qualities. A powerful motor for supporting sails that are simple to manoeuvre with the help of generously-sized and well-arranged fittings.

Overview

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Hide empty fields

Main

Name	Value
Maker	Beneteau
Maker website	https://www.beneteau.com
Model	Evasion 22
First built hull	1980
Last built hull	1984
Price	149,500 $
Boat type	Sail
Category	Cruiser Boats
Hull type	Monohull
Hull material	Monohull
Cabins	1
Births	2
Heads	1

General

Name	Value
Top speed	9.45 kmh
Length overall	6.74 m
Length at waterline	5.85 m
Beam overall	2.62 m
Draft maximum	1.04 m
Displacement	1,799.85 kg
Ballast weight	729.83 kg
Ballast type	Cast iron
Helm	1 tiller
Rudder	1 transom hung rudder
Cockpit	Closed aft cockpit

Designer

Name	Value
Naval architect
Name/Studio	Beneteau
Website	http://www.beneteau.com

Rig & Sails

Name	Value
Spars	Mast and boom in Aluminum
Standing rigging	1x19 strand wire continuous
Number of spreaders	1
Spreaders angle	0 °
Upwind sail area	22.39 sq.m
Mainsail A	125
Headsail A	116

Engine

Name	Value
Engine A
Fuel	Diesel
Power	25 HP
Type	Inboard

Storage

Name	Value
No data

Performance & Ratios

Hide empty fields

Detail

Name	Value
Upwind SA to Displacement	15.39
Displacement to Length (D/L)	5.87
Ballast to Displacement (B/D)	0.41
Capsize Screening Formula (CSF)	2.18

Notes

This boat can be found in Fin Keel and Twin Keel.
