1975 Beneteau Evasion 28

No gallery images

1975 Beneteau Evasion 28
Preview

Boat Overview

Boat Description

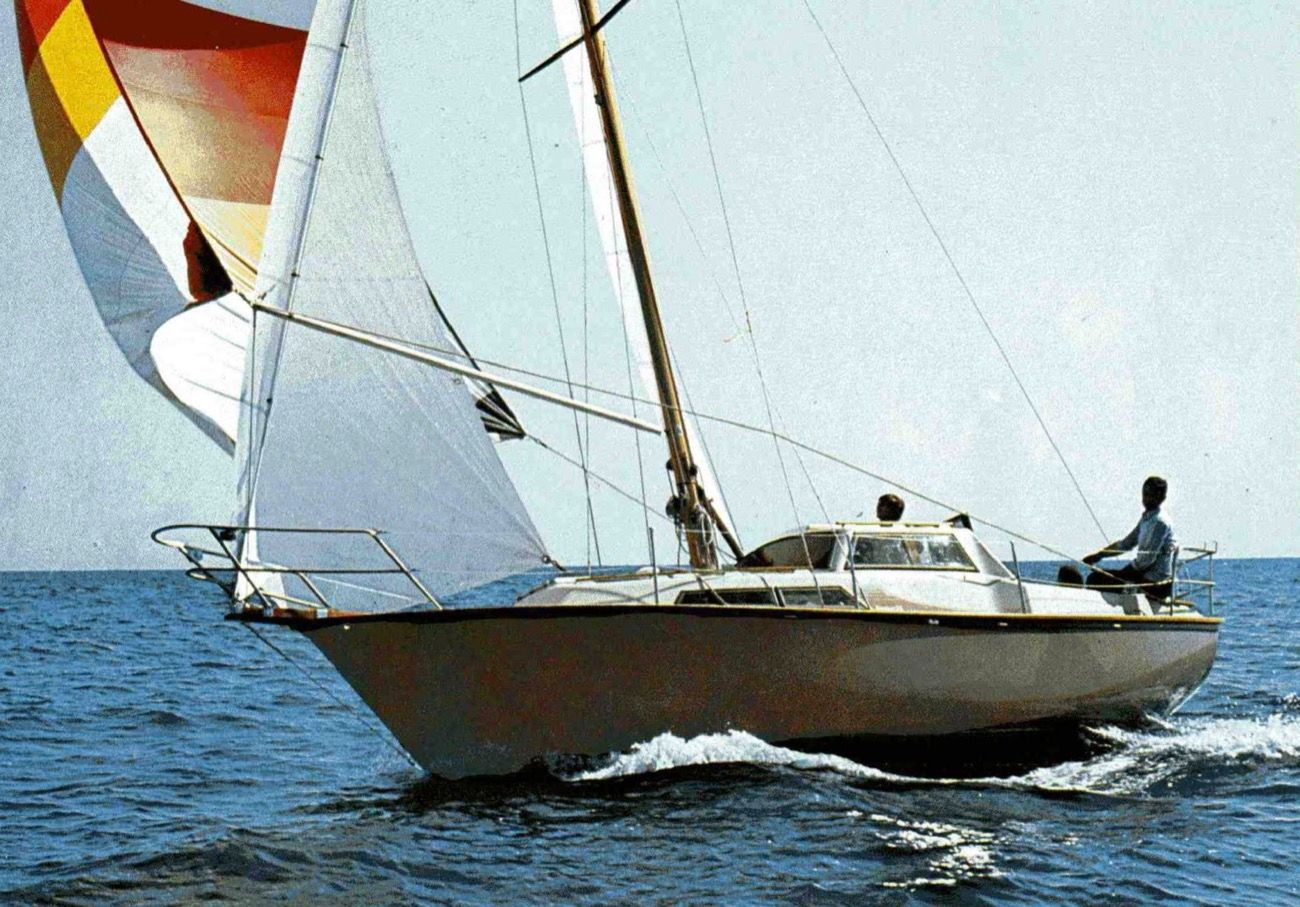

Underneath the elegant motor-sailor superstructures, the Evasion 28 hides a beautiful sailboat hull. Powerful, stiff, stable on its journey, goes well upwind, the Evasion 28 is an excellent sailing boat both in the breeze and light winds.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerBeneteau
Maker websitehttps://www.beneteau.com
ModelEvasion 28
First built hull1975
Last built hull1980
Price14,000 €
Boat typeSail
CategoryCruiser Boats
Hull typeMonohull
Hull materialMonohull
Cabins1
Births2
Heads1
General
NameValue
Top speed10.04 kmh
Mast height12.07 m
Length overall8.26 m
Length at waterline6.64 m
Beam overall2.93 m
Headroom1.83 m
Draft maximum1.25 m
Displacement4,300.05 kg
Ballast weight1,399.78 kg
Ballast typeCast iron
Helm1 wheel
Rudder1 rudder on skeg
CockpitClosed aft cockpit
Designer
NameValue
Naval architect
Name/StudioBeneteau
Websitehttp://www.beneteau.com
Rig & Sails
NameValue
Mast39.6
SparsMast and boom in Aluminum
Standing rigging1x19 strand wire continuous
Number of spreaders1
Spreaders angle0 °
Upwind sail area44.31 sq.m
Downwind sail area72.84 sq.m
Mainsail A170
Headsail A307
Headsail B117
Headsail C46
Spinnaker A614
Engine
NameValue
Engine A
FuelDiesel
Power30 HP
TypeInboard
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.03
Upwind SA to Displacement17.04
Downwind SA to Displacement28.01
Hull Displacement Speed 0.03
Displacement to Length (D/L) 6.26
Ballast to Displacement (B/D) 0.33
Capsize Screening Formula (CSF) 1.82
