Boat Overview
Type
Maker
Hull type
Hull Material
Composite_Material
Category
Boat length (LOA)
7.62 m
Specs
Main
| Maker | Catalina Yachts |
| Maker website | https://www.catalinayachts.com |

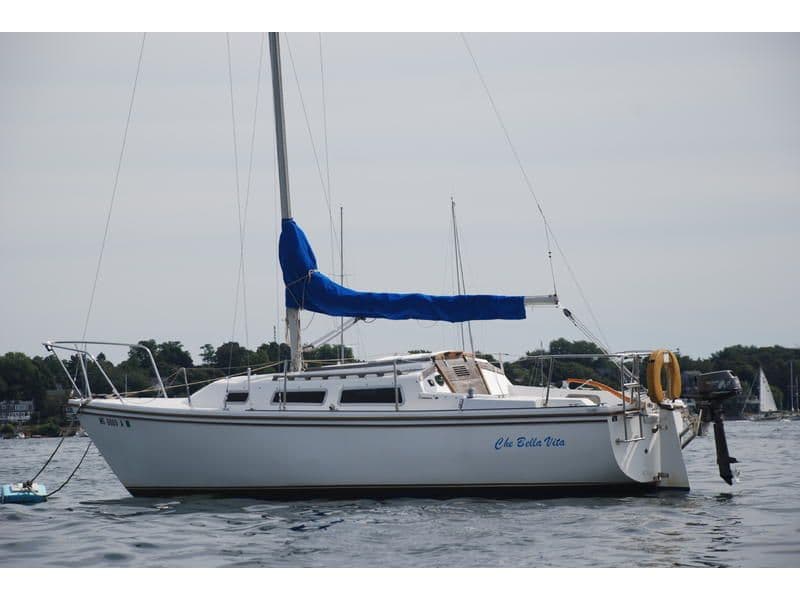

| Model | Catalina 25 - Swing Keel |
| First built hull | 1978 |
| Version | Swing Keel |
| Boat type | Sail |
| Category | Cruiser Boats |
| Hull type | Monohull |
| Hull material | Composite_Material |
General
| Top speed | 10.15 kmh |
| Length overall | 7.62 m |
| Length at waterline | 6.77 m |
| Beam overall | 2.44 m |
| Draft maximum | 1.52 m |
| Displacement | 1,881.95 kg |
| Ballast weight | 679.93 kg |
| Helm | 1 tiller |
| Rudder | 1 transom hung rudder |
| Cockpit | Closed aft cockpit |
Designer
| Naval architect | |
| Name/Studio | Frank Butler |
| Website | http://www.catalinayachts.com/ |
Rig & Sails
| Spars | Mast and boom in Aluminum |
| Standing rigging | 1x19 strand wire continuous |
| Number of spreaders | 1 |
| Spreaders angle | 0 ° |
| Upwind sail area | 25.08 sq.m |
Engine
| Engine A | |
| Engine B |
Storage
Performance & Ratios
Detail
| Upwind SA to Displacement | 16.74 |
| Displacement to Length (D/L) | 6.31 |
| Ballast to Displacement (B/D) | 0.36 |
| Capsize Screening Formula (CSF) | 1.99 |
