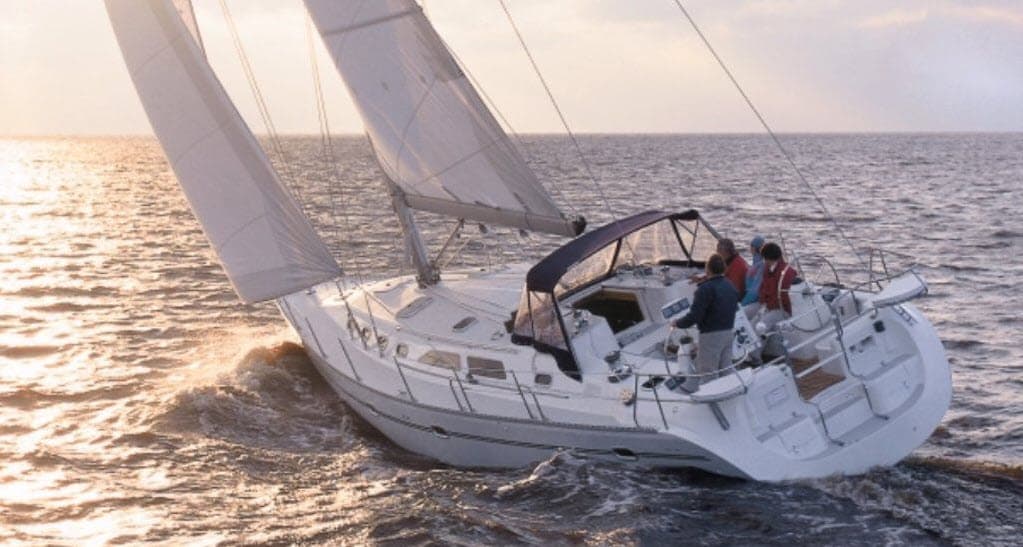

1998 Catalina Yachts Catalina 470 - Tall Rig

2563

Report error

1998 Catalina Yachts Catalina 470 - Tall Rig

No gallery images

1998 Catalina Yachts Catalina 470 - Tall Rig

Boat Overview

Overview

Specs
Main
General
Designer
Rig & Sails
Engine
Storage
Performance & Ratios
Detail

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
MakerCatalina Yachts
Maker websitehttps://www.catalinayachts.com
ModelCatalina 470 - Tall Rig
First built hull1998
VersionTall Rig
Boat typeSail
CategoryCruiser Boats
Hull typeMonohull
Hull materialComposite_Material
General
Top speed13.97 kmh
Mast height20.67 m
Length overall14.36 m
Length at waterline12.8 m
Beam overall4.27 m
Beam hull2.32 m
Draft maximum2.16 m
Displacement12,370 kg
Ballast weight4,091 kg
Ballast typeLead
Helm2 wheels
Rudder1 spade rudder
CockpitClosing aft cockpit with opening system
Designer
Naval architect
Name/StudioGerry Douglas
Websitehttp://www.catalinayachts.com
Rig & Sails
Mast67.8
SparsMast and boom in Aluminum
Standing rigging1x19 strand wire
Number of spreaders2
Spreaders angle0 °
Upwind sail area101.36 sq.m
Engine
Engine B
Power75 HP
TypeInboard
Storage
Fuel tank A333.12 liter
Water tank A810.08 liter
Holding tank A249.84 liter
Water heater A74.95 liter

Performance & Ratios

Detail
Sail Area to Displacement (SA/D) 19.27
Upwind SA to Displacement19.27
Hull Displacement Speed 8.68
Displacement to Length (D/L) 164.33
Ballast to Displacement (B/D) 0.33
Capsize Screening Formula (CSF) 1.86
