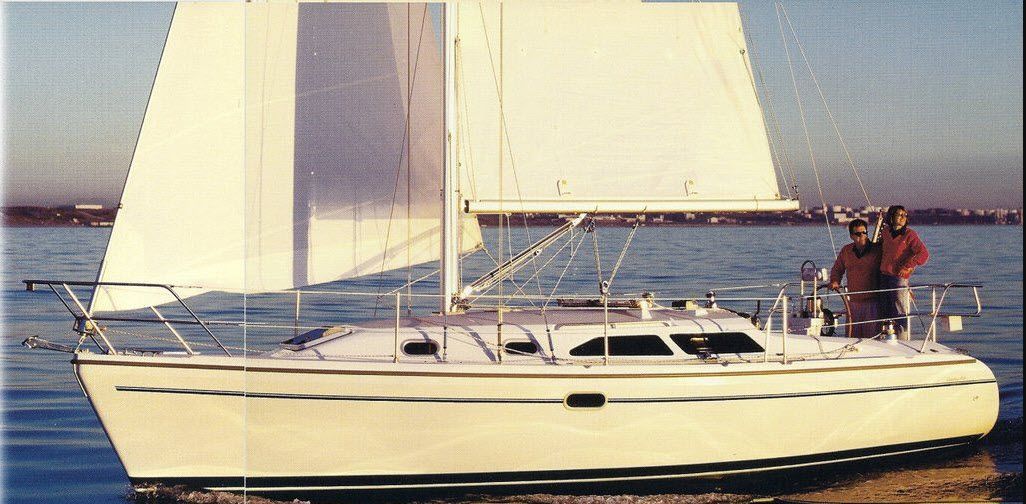

1999 Catalina Yachts Catalina 310 - Fin Keel

2017

Report error

1999 Catalina Yachts Catalina 310 - Fin Keel

No gallery images

1999 Catalina Yachts Catalina 310 - Fin Keel

Boat Overview

Overview

Specs
Main
General
Designer
Rig & Sails
Engine
Storage
Performance & Ratios
Detail

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
MakerCatalina Yachts
Maker websitehttps://www.catalinayachts.com
ModelCatalina 310 - Fin Keel
First built hull1999
VersionFin Keel
Boat typeSail
CategoryCruiser Boats
Hull typeMonohull
Hull materialComposite_Material
General
Top speed11.1 kmh
Length overall9.48 m
Length at waterline8.11 m
Beam overall3.54 m
Draft maximum1.77 m
Displacement4,854 kg
Ballast weight1,996 kg
Ballast typeLead
Helm1 wheel
Rudder1 spade rudder
CockpitOpen aft cockpit
Designer
Naval architect
Name/StudioGerry Douglas
Websitehttp://www.catalinayachts.com
Rig & Sails
SparsMast and boom in Aluminum
Standing rigging1x19 strand wire
Number of spreaders2
Spreaders angle0 °
Upwind sail area45.52 sq.m
Engine
Engine A
Power26 HP
TypeInboard
Storage
Fuel tank A76.09 liter
Water tank A207.82 liter
Holding tank A76.09 liter

Performance & Ratios

Detail
Sail Area to Displacement (SA/D) 16.14
Upwind SA to Displacement16.14
Hull Displacement Speed 6.91
Displacement to Length (D/L) 253.82
Ballast to Displacement (B/D) 0.41
Capsize Screening Formula (CSF) 2.11
