Boat Overview
Type
Maker
Hull type
Hull Material
Composite_Material
Category
Boat length (LOA)
10.55 m
Specs
Main
Name | Value |
---|---|
Maker | Catalina Yachts |
Maker website | https://www.catalinayachts.com |

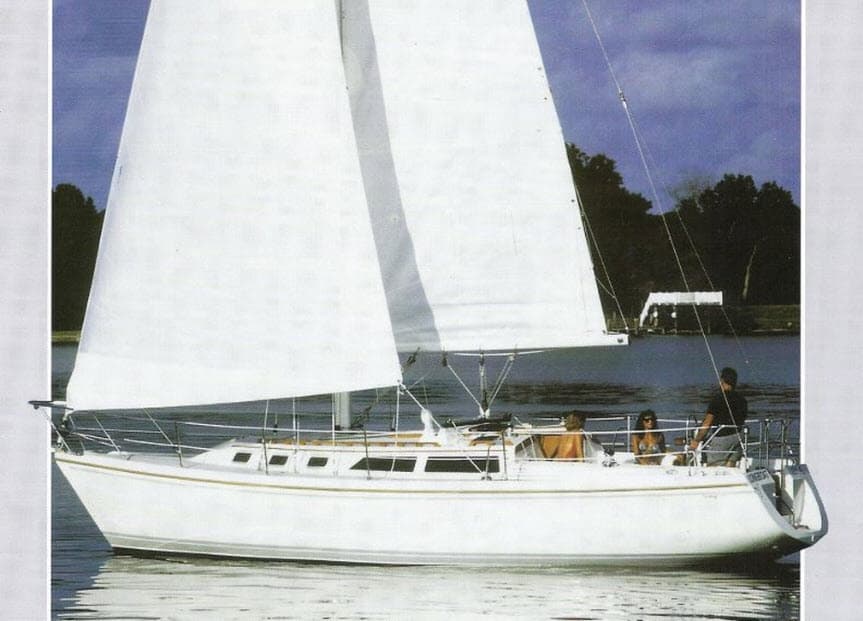

Model | Catalina 34 MkI - Tall Rig |
First built hull | 1985 |
Version | Tall Rig |
Boat type | Sail |
Category | Cruiser Boats |
Hull type | Monohull |
Hull material | Composite_Material |
General
Name | Value |
---|---|
Top speed | 11.78 kmh |
Length overall | 10.55 m |
Length at waterline | 8.87 m |
Beam overall | 3.6 m |
Draft maximum | 1.74 m |
Displacement | 5,413.17 kg |
Ballast weight | 2,264.78 kg |
Ballast type | Cast iron |
Helm | 1 wheel |
Rudder | 1 spade rudder |
Cockpit | Open aft cockpit |
Designer
Name | Value |
---|---|
Naval architect | |
Name/Studio | Frank Butler |
Website | http://www.catalinayachts.com/ |
Rig & Sails
Name | Value |
---|---|
Spars | Mast and boom in Aluminum |
Standing rigging | 1x19 strand wire |
Number of spreaders | 1 |
Spreaders angle | 0 ° |
Upwind sail area | 51.47 sq.m |
Engine
Name | Value |
---|---|
Engine A | |
Power | 30 HP |
Type | Inboard engine ; Diesel |
Engine B |
Storage
Name | Value |
---|---|
No data |
Performance & Ratios
Detail
Name | Value |
---|---|
Upwind SA to Displacement | 16.98 |
Displacement to Length (D/L) | 7.23 |
Ballast to Displacement (B/D) | 0.42 |
Capsize Screening Formula (CSF) | 2.07 |
