Name	Value
Maker	Catalina Yachts
Maker website	https://www.catalinayachts.com
Model	Catalina 34 MkII - Fin Keel
First built hull	1996
Version	Fin Keel
Boat type	Sail
Category	Cruiser Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	11.78 kmh
Length overall	10.91 m
Length at waterline	8.87 m
Beam overall	3.6 m
Draft maximum	1.74 m
Displacement	5,419.97 kg
Ballast weight	2,267.96 kg
Ballast type	Cast iron
Helm	1 wheel
Rudder	1 spade rudder
Cockpit	Closing aft cockpit with opening system

Name	Value
Naval architect
Name/Studio	Frank Butler
Website	http://www.catalinayachts.com/

Name	Value
Spars	Mast and boom in Aluminum
Standing rigging	1x19 strand wire
Number of spreaders	1
Spreaders angle	0 °
Upwind sail area	48.96 sq.m
Mainsail A	231.00

Name	Value
Engine A
Power	35 HP
Type	Inboard engine ; Diesel
Engine B

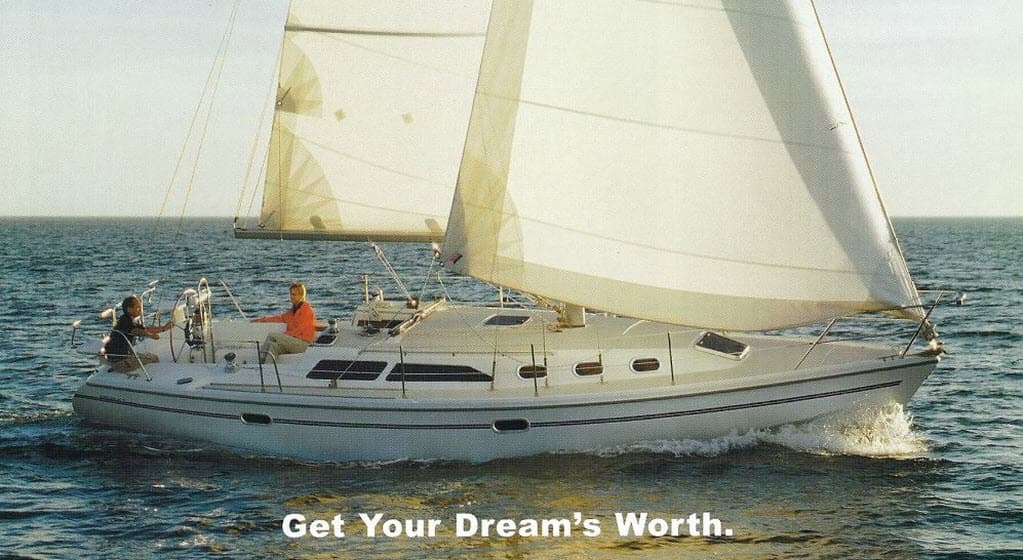

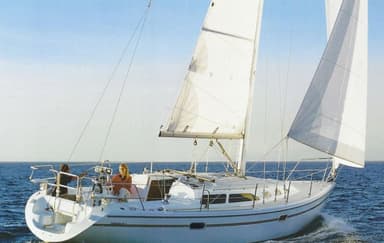

1996 Catalina Yachts Catalina 34 MkII - Fin Keel

Boat Overview

Type

Maker

Hull type

Hull Material

Composite_Material

Category

Boat length (LOA)

10.91 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	7.07
Upwind SA to Displacement	16.14
Hull Displacement Speed	7.23
Displacement to Length (D/L)	216.47
Ballast to Displacement (B/D)	41.84
Capsize Screening Formula (CSF)	2.06
