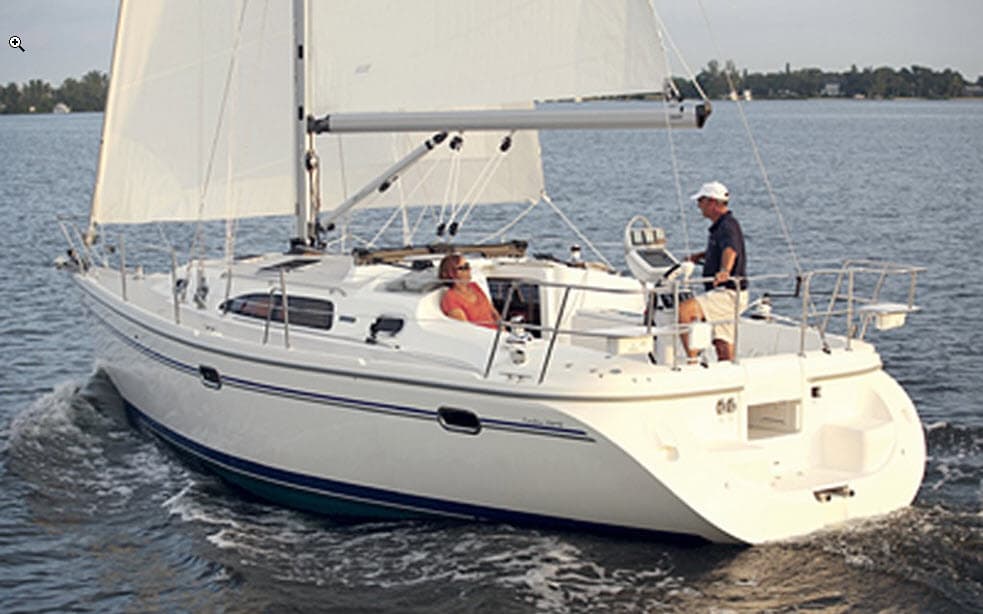

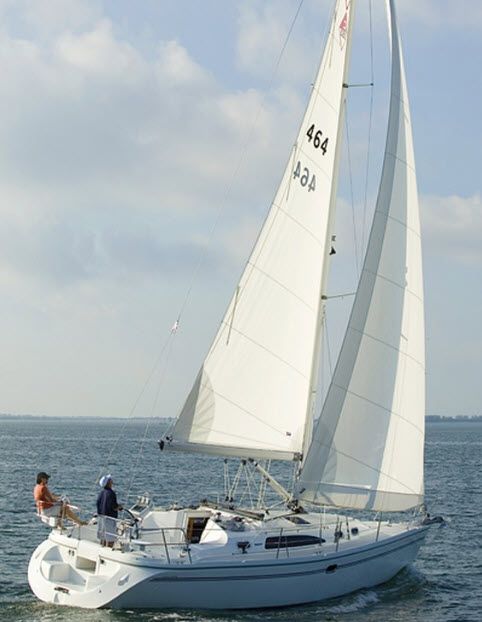

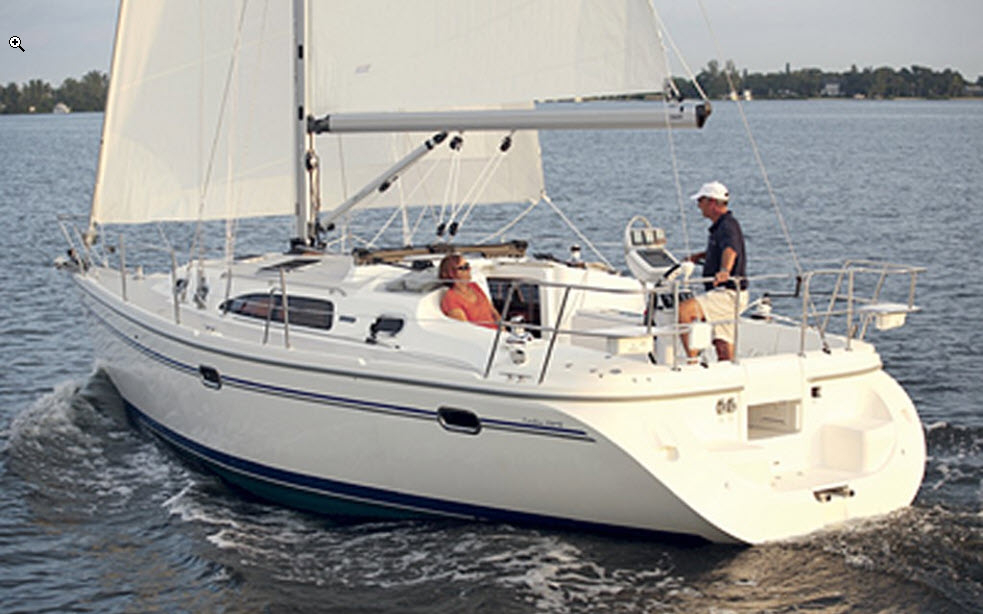

2007 Catalina Yachts Catalina 350 MkII - Wing Keel

2647

Report error

2007 Catalina Yachts Catalina 350 MkII - Wing Keel
2007 Catalina Yachts Catalina 350 MkII - Wing Keel
2007 Catalina Yachts Catalina 350 MkII - Wing Keel
2007 Catalina Yachts Catalina 350 MkII - Wing Keel
2007 Catalina Yachts Catalina 350 MkII - Wing Keel
Preview
2007 Catalina Yachts Catalina 350 MkII - Wing Keel
Preview
2007 Catalina Yachts Catalina 350 MkII - Wing Keel
Preview
2007 Catalina Yachts Catalina 350 MkII - Wing Keel
Preview

Boat Overview

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Gold for Free

Specs

Main
NameValue
MakerCatalina Yachts
Maker websitehttps://www.catalinayachts.com
ModelCatalina 350 MkII - Wing Keel
First built hull2007
VersionWing Keel
Boat typeSail
CategoryCruiser Boats
Hull typeMonohull
Hull materialMonohull
General
NameValue
Top speed12.05 kmh
Length overall11.13 m
Length at waterline9.57 m
Beam overall3.96 m
Draft maximum1.4 m
Displacement6,356.18 kg
Ballast weight2,818.17 kg
Ballast typeCast iron
Helm1 wheel
Rudder1 spade rudder
CockpitClosing aft cockpit with opening system
Designer
NameValue
Naval architect
Name/StudioGerry Douglas
Websitehttp://www.catalinayachts.com/
Rig & Sails
NameValue
SparsMast and boom in Aluminum
Standing rigging1x19 strand wire
Number of spreaders2
Spreaders angle0 °
Upwind sail area67.91 sq.m
Mainsail A276.00
Engine
NameValue
Engine A
Power30 HP
TypeInboard engine ; Diesel
Engine B
Storage
NameValue
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 7.6
Upwind SA to Displacement20.13
Hull Displacement Speed 7.51
Displacement to Length (D/L) 202.07
Ballast to Displacement (B/D) 44.34
Capsize Screening Formula (CSF) 2.16
