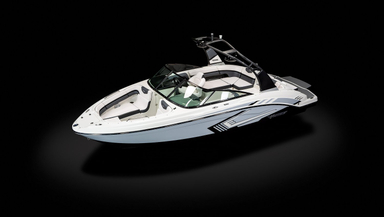

VRX-223-F3Q-PT-19

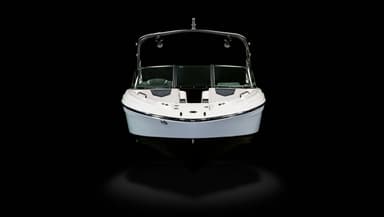

VRX-223-FRONT-19

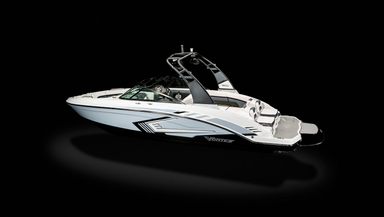

VRX-223-R3Q-PT-19

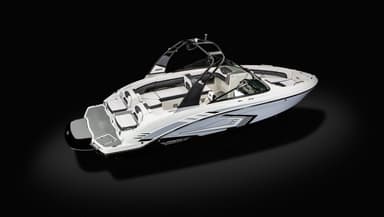

VRX-223-R3Q-SB-19

Fiberglass

Maker - Compare boat manufacturers on TheBoatDB and find the best boat and brand for you. You can look up boats by maker and filter your search to save some time. Check out the various models they have on our database and explore in detail the shape, performance, look, interior, and more specifications and features.

Other

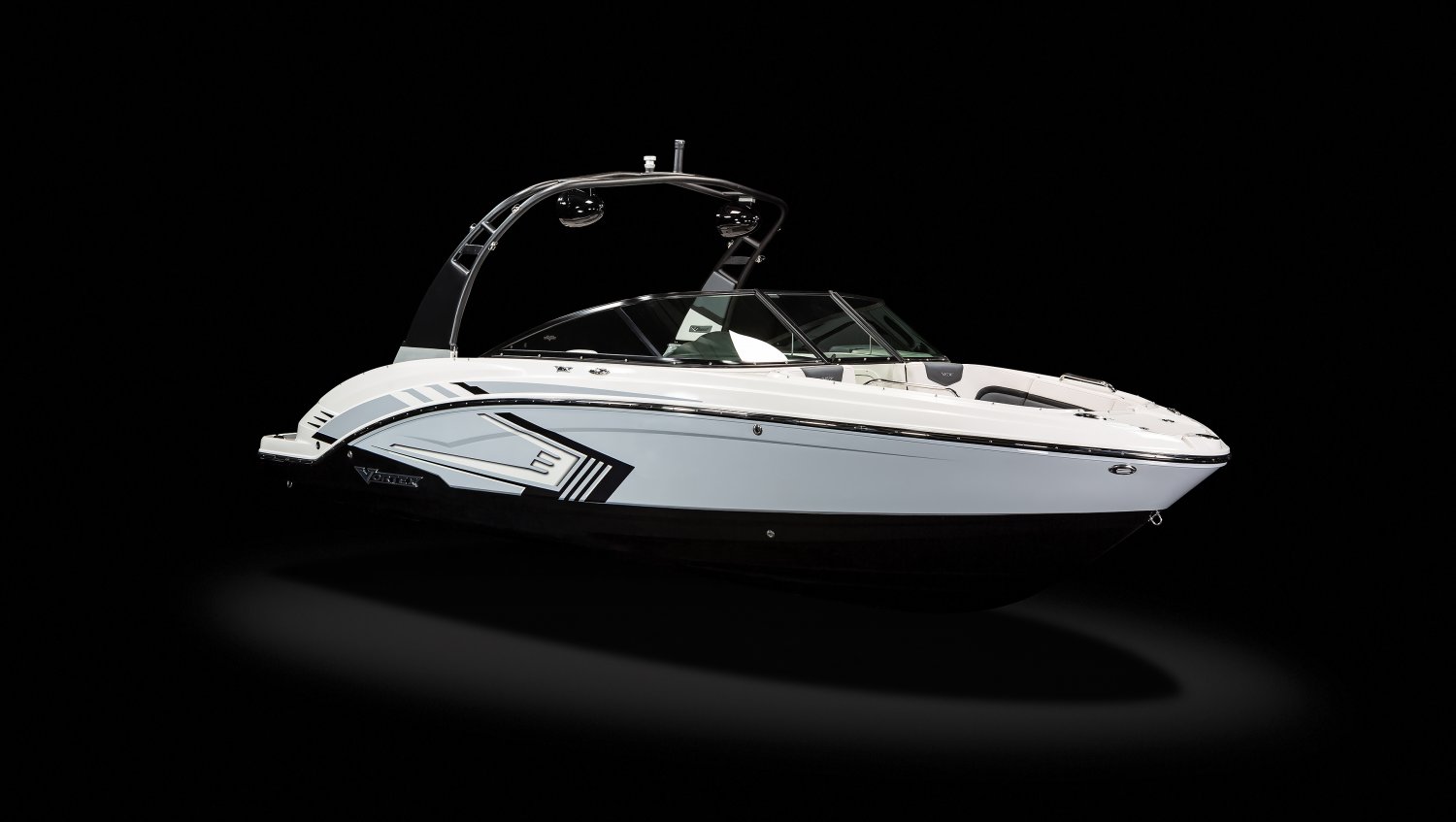

VRX-223-F3Q-SB-19

Chaparral Boats

US Dollars

Powerboats are vessels with an onboard or outboard engine that powers them and allows them to gain speed and move on the water in a way that feels like it is just sliding on the surface. As such, they are also known as speedboats. Learn more about powerboats and their speed on TheBoatDB. Pick a model and check out its maximum velocity, <a href="https://theboatdb.com/maker">manufacturer</a>, whether it is an outboard motorboat or inboard one, and other features and specifications on our online database. Check out all types of powerboats and compare side by side the ones that pique your interest the most.

Power

D5D3A6BB-0B40-4856-8618-0A82E7BC7913-1536x1152

Sylvan

8321188_20220516145417116_1_XLARGE

Key West Boats

2400 PATHFINDER TRS - 2022 Model Year
PAINTED BLACK MOTOR
This Boat is on Order
Call us for more details: 302 - 436 - 1737
 PATHFINDER 2400 TRS (PM), 2022 MOTORF300XCA&nbsp; YAMAHA CLP DEC S/N 6X6C1040787 STEERING, HYDRAULIC TILT, PM Whisper Grey, all solid color (no two-tone) Deck color: Pure White Console color: Pure White Console insert &amp; footrest color: Whisper Grey Fiberglass cooler: Whisper Grey 2-tone hardtop underside color: Whisper Grey TRIM, CONSOLE, BLACK GLOVEBOX DOOR &amp; KEEPER (PM) TRIM, HARDTOP, BLACK DOORS, LIGHTS (PM) 2-TONE GREY CUSHIONS PAINT MOTOR, BLACK T-TOP, HARD-TOP W/ELEC BOX, STORAGE BOX &amp; SPREADER LIGHTS POWDER COATING OPTION, GLOSS BLACK, W/ T-TOP WASH DOWN SYSTEM FRESH WATER STEREO, W/4 (BLACK) SPEAKERS, JL AUDIO SPEAKERS (2) BLACK FOR HARD TOP JL AUDIO TRIM TAB INDICATORS, (PM) BATTERY CHARGER, (4 BANK) 30 AMP CLEAT, SPRINGLINE, FOLDING W/ HAWSE PIPE, (SET OF 2) ROD HOLDERS, FLUSH MOUNT, PM HARD-TOP, ROD RACK, (6 ROD HOLDERS, 4 VERT &amp; 2 KING FISH) BATTERY, 31 SERIES, AGM POWER POLE, BLACK, 10 FT, SIGNATURE SERIES BLADE, PORT SIDE POWER POLE, BLACK, 10 FT. SIGNATURE SERIES BLADE, STBD SIDE LEANING POST BACKREST, WITH CUSHION {OPTION} STEERING WHEEL, PREMIUM W/KNOB UPGRADE, (EDSON BLACK) DECKING, FREEBOARD, EVA, FAUX TEAK, GREY / BLACK TRAILER, PATHFINDER 2400TRS, TANDEM AXLE, PM TRAILER OPTION, SPARE TIRE W/ MOUNT TRAILER OPTION, ALUMINUM STAR WHEELS
<div class="show-more">
<div class="show-more__content">
<h4>Boat Trailers Wholesale</h4>
.
</div>
<a data-more="More…" data-less="Show Less…" class="show-more__toggle" href="javascript:void(0);">Show More…</a>
</div>

6913082_20190323112115887_1_XLARGE

Pathfinder

Request Price
Durable, roomy and with formed-in spray rails for a drier ride, the 1400 CR Jon is a great way to spend some time on the water.&nbsp;


Seating

Seat, center, w/gravity-fed livewell (1448 CR Jon, 1448T CR Jon, 1448M CR Jon, 1448MT CR Jon only)
Seat, bench (2)

Interior Features

Plug, drain

Exterior Features

Eye, stainless steel (bow)
Corner caps, formed (stern)
Gunnel, extruded
Spray rails, formed
Handles (stern)
Paint Process, Enamel

Accessories

Oar lock sockets


Show More…
Show Less…


6889706_20181025111337650_1_XLARGE

Crestliner

Request Price
The 630 Cockpit Motoryacht is ideal for fishing, diving and water sport adventures with your family and friends. An expansive lazarette provides the owner with a very large storage area needed for provisions and many other cruising necessities.


Hull Construction

Hand laid-up FRP hull with PVC core sandwich construction above water line
Solid laminate, commensurate for hull size, made in female mold
Vinylester barrier lamination for osmosis protection
Simulated planked hull
Full length longitudinal engine stringers and athwartship stringers
Gel coated finish above waterline
Two (2) coats of black antifouling paint over five (5) coats of epoxy primer below waterline
Integrally molded rub rails with stainless steel capping
Full length keel extends below running gear
Stainless steel rudders and struts with two (2) Seatorque enclosed drive shaft systems
CE-approved stainless steel portlights
Boat construction from only 3 major molds
Divinycell PVC cored construction with cook gelcoat
All deck and hull area hardware attachments are finished with solid lamination – no coring
Bilge area finished smooth and coated with bright white epoxy paint
Windows with 3/8" tempered safety glass in salon and ½' tempered safety glass in pilothouse
WheelHouse™ Technologies, Inc Marine Maintenance System

Mechanical/Plumbing
MECHANICAL

Side-power 10.7hp (24v) electric bow thruster with dual station controls and two (2) AGM 8dl-255 AH batteries
ABT Trac 220 stabilizers with 6.0 sq. ft. fins
Northern Lights uplift water separator exhaust system with bypass and FRP mufflers
Copper bonding system to all underwater fittings with zinc anodes
Two (2) Seatorque enclosed drive shaft systems and two (2) Nibral propellers
Rigid fresh water pipes and color coded copper fuel lines
Stainless steel struts with bearings
Headhunter 24v DC fresh water pump with accumulator tank
Two (2) 24v DC automatic shower sump systems with external pump
Accessible wiring raceway throughout

TANKAGE

One (1) holding tank with a max capacity of 100 US gallons (378 lts) with two (2) macerator/discharge pumps. One (1) is wired and plumbed for backup redundancy
One (1) stainless steel water tank with a max capacity of 300 US gallons (1135 lts)
Three (3) aluminum fuel tanks with a total capacity of 1,000 US gallons (3785 lts)
Lexan sight gauges on fuel tanks
Inspection and cleaning ports on all tanks
Fuel fills built into house sides in FRP cabinet

LAZARETTE

Edura beige coin dot flooring
Hull finished with white gloss polyurethane paint
Two (2) LED overhead lights with two (2) two-way switches
One (1) 110v AC GFI outlet (220v 50hz for AU-EU)
Formica finish on walls

ENGINE ROOM

Acoustically insulated stand-up engine room lined with sound absorbing material
Edura beige coin dot flooring
Twin John Deere 6090 (500 HP) OR Caterpillar C9.3 (476 HP) diesel engines with ZF transmissions
Fiberglass drip pans under engines
Northern Lights Generator – one (1) 16kw (60hz) w/ sound shields (one (1) 16kw (50hz) for AU-EU)
MarineAir direct expansion air conditioning system
Ball-valve bronze seacocks on all through-hulls below waterline
Oil change pump for engines and generator
Two (2) 50amp isolation transformers
One (1) 3.0kw inverter/charger (24VDC to 115VAC-60Hz or 230VAC/50Hz)
Two (2) Racor 1000 MA dual fuel filters for main engines
One (1) Racor 1000 MA single fuel filters for generator
Fuel polishing system&nbsp;
Fuel management system
Fireboy fire suppression system including both intake and outlet air shutdown system with aluminum louvers
Four (4) automatic bilge pumps 24v DC and emergency bilge suction on engine
Fire system and bilge high-water alarm system with warning panel
Fresh water hose bibb
AGM (Absorbed Glass Matt) batteries in FRP boxes:

Two (2) engine banks with two (2) 8D batteries for each bank
One (1) house bank with four (4) 8D batteries with a total 510 amp-hours (24VDC)
One (1) generator bank with one (1) battery

One (1) 24v and one (1) 12v battery charger
Two (2) battery isolators
20 gallon water heater with heat exchanger
Four (4) 24v DC blowers
Six (6) LED overhead Lights –110v AC/24v DC (220v AC/ 24v DC for AU-EU) with two (2) two-way switches
Two (2) 110v AC GFI outlets (220v 50hz for AU-EU) with water proof covers
316 Stainless steel safety rails around engines
Two watertight bulkheads
Watertight aluminum engine room doors with sight windows

Exterior/Decks
AFT DECK AREA

Aft deck with molded white non-skid surface
Aft deck FRP bench seating with storage beneath
Exterior furniture fabric for aft deck and Portuguese seats (deducted from décor allowance)
FRP sliding door to salon with glass window top and bottom
Shorepower inlets for 110v/220v 60hz (220v 50hz for AU-EU)
Glendinning 50 amp cable master with 75' of cable on transom with additional 50 amp shore power inlet
Four (4) LED overhead lights with one (1) standard switch inside the salon
One (1) 110v AC GFI outlet (220v 50hz for AU-EU)
316 Stainless steel heavy duty cleats secured to stainless steel backing plates inside bulwarks
316 Stainless steel handrail to and from aft deck&nbsp;

SIDE DECKS

Molded with white non-skid surface
Weathertight doors opening into pilothouse port and starboard
House side fixed windows with tinted tempered glass
Two (2) sets of 316 stainless steel spring-line chocks per side
Four (4) 316 stainless steel hawser holes with stainless steel cleats per side recessed in bulwarks
Fuel fill fittings for tanks recessed into house side
316 stainless steel overhead safety rails
Four (4) LED courtesy lights along walk ways
Four (4) LED overhead lights with one (1) standard switch

PORTUGUESE BRIDGE

Portuguese bridge molded with white non-skid surface
Locker doors in aft face of Portuguese bridge
Hinged door through Portuguese bridge to foredeck
Three (3) stainless steel Exalto dual speed (intermittent) self-parking windshield wipers with wash down system
½" Clear tempered glass in forward facing windshields
Windows are fixed with FRP recessed frames - no FRP trim around for easy removal and installation of glass
Three (3) LED courtesy lights with one (1) standard switch

FORE DECK

Foredeck with white non-skid surface
316 Stainless steel CE-approved skylight/emergency hatch from the VIP stateroom below
316 Stainless steel rail on bulwarks increasing in width going forward
316 Stainless steel stanchions to support handrail
Deck lockers forward either side of anchor platform finished in white epoxy paint
316 Stainless steel anchor chute/roller at bow
60 lb plow-type anchor with 300' long 3/8" high test chain
Maxwell VWC-2500c (24v) vertical windlass with foot switches and remote controls for dual stations
Salt water wash down pump with outlet
Fresh water wash down with outlet
Salt water and fresh water 316 SS faucets inside foredeck lockers
Deck drains plumbed to boot-stripe to prevent black streaks

FLYBRIDGE

Exclusive Deluxbridge® full-beam width deck with white non-skid surface and ample storage space
316 stainless steel safety rails
Venturi windscreen with 316 stainless steel rails
Molded FRP steering console with engine controls
Electronics console
Glendinning engine controls
4" magnetic compass
Teleflex hydraulic steering system
316 Stainless steel destroyer steering wheel
One (1) Stidd helm seat, Slimline series with powder coated base and naugahyde fabric
Fire system repeater alarm
One (1) L-shaped settee with exterior furniture fabric for cushions (deducted from décor allowance) and one (1) white FRP table to port
FRP cabinets to starboard
Five (5) Aquasignal navigation lights in accordance with appropriate collision regulations
Kahlenberg D-OA dual trumpet air horn with compressor
Two (2) 24v to 12v DC-DC converters with 12v battery back-up system
316 Stainless steel mast with bow and anchor lights
316 Stainless steel hatch and stairs starboard side down to pilothouse with five (5) LED courtesy lights and two (2) two-way switches
Two (2) LED overhead lights with one (1) standard switch
One (1) LED service light under flybridge steering console with one (1) standard switch
Two (2) 110v AC GFI outlets (220v 50hz for AU-EU)
One (1) 12v DC outlet (220v 50hz for AU-EU)&nbsp;

BOAT DECK

Deck with white non-skid surface
316 Stainless steel hand rails
450KGS/1000lb aluminum painted davit with 4-way hydraulic control with rotating base, luff, lift, pendant switch and a 9.25' telescoping arm
Two (2) SeaBob F5S's with custom Outer Reef graphics

Interior/Accomodations
INTERIOR ALLOWANCE

Interior décor allowance $30,000. This is a "Use or Lose" allowance for the purchase of interior and exterior soft goods (cushion fabrics, bed covers, shams, pillows, etc). This allowance is not transferable to any designer other than Outer Reef's designated in house designer

SALON

Sliding door entrance from aft deck
Fixed windows in house sides with medium 3/8" tinted tempered safety glass
Teak valance over windows with LED rope lighting
Nine (9) LED overhead lights with two (2) two-way switches
Access hatches to allow for engine removal
Vinyl headliner
Built-in L-shaped settee with 5" foam seats
One (1) free standing fixed teak coffee table (Wood species other than teak, such as wenge, cherry, walnut, etc, are optional)
TV (optional) mounted on bulkhead between galley and salon
One (1) end table (built in)
Air conditioning control panel
Teak cabinetry and lockers
Four (4) 110v AC outlets (220v AC for AU-EU)
One (1) TV outlet
Carpeted floor (deducted from décor allowance)
Teak wall paneling with satin finish
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers

GALLEY

Corian countertops with stainless steel under mount sinks
Drawer for soap and sponges in front of the sink
Chrome Grohe Europlus II faucet with pull out spray
Nine (9) LED overhead lights with three (3) standard switches
Teak cabinets and cabinet doors with chrome push-button locks
Teak wall paneling with satin finish
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Two (2) 110v AC GFI outlets (220v AC GF for AU-EU)
Teak and holly sole
Appliances – GE Stainless Monogram Package (US Model)

36" counter-depth side x side refrigerator
18" dishwasher with stainless interior
30" built-in microwave
30" electric cooktop and oven
15" trash compactor
Garbage disposal with switch

Appliances (AU-EU Model)

567L side x side refrigerator
450mm fully integrated dishwasher
600mm touch control ceran cooktop
600mm 7-function oven
600mm stainless steel microwave
380mm stainless steel automatic trash compactor
Stainless steel garbage disposal with switch


PILOTHOUSE

L-shaped settee on raised platform
Teak table with single 316 stainless steel pedestal (Wood species other than teak, such as wenge, cherry, walnut, etc, are optional)
Seven (7) LED overhead lights with one (1) standard switch and two (2) two-way switches
Two (2) LED red night lights with one (1) dimmer switch
One (1) chart light
LED red and white bridge lights
Two (2) 110v AC outlets (220v AC GFI for AU-EU)
One (1) USB outlet
One (1) 12v DC outlet
One (1) Stidd helm seat, model 500-N, naugahyde with matching powder coated base
Custom Outer Reef wood steering wheel at pilothouse helm
Teleflex hydraulic steering system
Engine display screens
Overhead electronics console
Wiring routes to facilitate equipment installation
Main electrical distribution panels with gauges and circuit breakers for AC and DC
Alarm and advisory panel
Transom doors on AC, DC and advisory panels
Glendinning engine controls
4" magnetic compass
½"Clear tempered glass in forward facing windshields
Vinyl headliner
Control for bow thruster
Air conditioning control panel
Generator digital control panel
24v DC to 12v DC converter
Windlass up/down switch and control circuit breaker
Bilge pump control on advisory panel
Equipment running advisory panel
Teak wall paneling with satin finish
Teak stairway to flybridge to starboard
Weathtertight doors opening out to port and starboard
Curved teak stairway leading to accommodations
Teak and holly sole

LOWER HALLWAY

Curved teak stairway from pilothouse with five (5) LED courtesy lights and two (2) two-way switches
Three (3) LED overhead lights with two (2) two-way switches
Combination of wall covering and teak wall paneling with satin finish in stairwell and hallway
Cabinet for storage or optional stackable washer and dryer
Storage under first two steps of the stairwell below
Access doors to staterooms
Carpeted floor (deducted from décor allowance)&nbsp;

FULL BEAM MIDSHIP MASTER SUITE

King size berth
7" layered foam mattress
Drawer storage under the berth
LED rope lighting under the bed and at valance with one (1) standard switch
Two (2) hanging lockers with teak-faced doors with access to stabilizer gear
One (1) walk-in closet
Two (2) built in cabinets
Automatic interior lights in lockers
Drawers with center guides and stops
Door stops and holders
Teak framed door
Teak wall paneling with satin finish
Cantalupi chrome reading lights
Two (2) CE-approved portlights with removable insect screen
Three (3) 110v AC outlets (220v AC for AU-EU)
One (1) TV outlet
Eight (8) LED overhead lights with two (2) two-way switches and one (1) standard switch
Air conditioning control panel
Nightstand teak tables with two drawers each
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Dyson V8 Absolute vacuum cleaner
Carpeted floor (deducted from décor allowance)

MASTER HEAD (ENSUITE)

Ensuite head with shower
CE-approved portlight with removable insect screen in shower
Clear tempered glass shower door with towel bar
Molded white FRP shower
Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
Ventilator fan in shower
Corian countertop with white Kohler under-mount sink
Chrome Grohe center-set single lever faucet at sink
Teak framed mirror with medicine chest
Storage cabinet under sink
Wallcovering
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Tecma Marine 24v electric white toilet with sanitary hose for all discharge plumbing
24v DC ventilator blower
One (1) 110v AC GFI outlets (220v AC GFI for AU-EU)
Five (5) LED overhead lights with two (2) standard switches
Teak and holly sole

VIP STATEROOM FORWARD

316 Stainless steel CE-approved skylight
Tapered queen-size berth
7" layered foam mattress
Teak storage drawers under the berth
Two steps on each side of the berth for easy access
LED rope lighting at valance with one (1) standard switch
Two (2) hanging lockers with teak-faced doors
Automatic interior lights in lockers
Teak wall paneling with satin finish
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Teak framed door
Two (2) 110v AC outlets (220v AC for AU-EU)
Four (4) LED overhead lights with two (2) two-way switches
Two (2) Cantalupi chrome reading lights
Air conditioning control panel
Carpeted floor (deducted from décor allowance)

GUEST STATEROOM PORT

CE-approved portlight with removable insect screen
Two (2) bunk berths with storage drawers underneath the bottom one
7" layered foam mattress
LED rope lighting at valance with one (1) standard switch
One (1) hanging lockers with teak-faced doors
Teak wall paneling with satin finish
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Automatic interior light in locker
Door stops and holders
Teak framed door
One (1) 110v AC outlet (220v AC for AU-EU)
Three (3) LED overhead lights with one (1) standard switch
Air conditioning control panel
Two (2) Cantalupi chrome reading lights
Carpeted floor (deducted from décor allowance)

GUEST HEAD

Head with shower with access doors from the VIP stateroom and lower hallway
CE-approved portlight with removable insect screen
Clear glass shower door with towel bar
Molded white FRP shower
Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
24v DC ventilator blower
Corian countertop with white Kohler under-mount sink
Chrome Grohe center-set single lever faucet at sink
Teak framed mirror with medicine chest
Storage cabinet under sink
Wallcovering
Drawers with full extension guides and push button latches
Teak cabin doors and cabinet doors
Chrome door handles on all interior lockers
Tecma Marine 24v electric white toilet with sanitary hose for all discharge plumbing
One (1) 110v AC GFI outlet (220v AC GFI for AU-EU)
Three (3) LED overhead lights with two (2) two-way switches and one (1) standard switches
Teak and holly sole

Cruising/Safety Package

Six (6) 15" x 41" Polyform F-series black fenders
Twelve (12) 15' x ½" black fender lines
Four (4) 3/4" x 35' double-braid nylon black dock lines
Two (2) 3/4" x 50' double-braid nylon black dock lines
Twelve (12) Safeguard type I orange life vests for adults over 90 lbs
Six (6) Kiddie Mariner 2 ¾ lb M10 fire extinguishers
One (1) Bernard oil discharge placard (US Model Only)
One (1) Bernard waste discharge placard (US Model Only)
Two (2) Jim-Buoy 24" white ring buoys
Four (4) Perko chrome/brass 4-ring buoy holders
One (1) Orion alert/locate flare kit
One (1) Orion circumnavigator first aid kit
One (1) Orion safety blaster horn

Other

Engine - generator integration onto the Garmin screens
AC/DC power monitoring
Alarm
Tank level monitoring
Wi-Fi interface
Engine exhaust, transmission and SeaTorque shaft temperature monitoring
8” Maretron screen in the crew area (where applicable)
Navigation lights, bilge pump monitors
All monitors projected onto the Garmin screens
Further information available upon request


Show More…
Show Less…


7584784_20200910111541874_1_XLARGE

Outer Reef Yachts

Name	Value
Maker	Chaparral Boats
Maker website	https://www.chaparralboats.com
Model	Vortex VRX 223 Surf
First built hull	2019
Price	68 $
Boat type	Power
Category	Wakeboard Boats
Hull type	Other
Hull material	Fiberglass

Name	Value
Engine A
Fuel	Gas
Maker	BRP
Power	400 HP
Type	Inboard

2019 Chaparral Boats Vortex VRX 223 Surf

Boat Overview

Type

Maker

Hull type

Hull Material

Fiberglass

Category

Boat length (LOA)

7.01 m

See all details

Overview

Specs

Performance & Ratios
