1994 Corsair Marine F24 MkII

1679

Report error

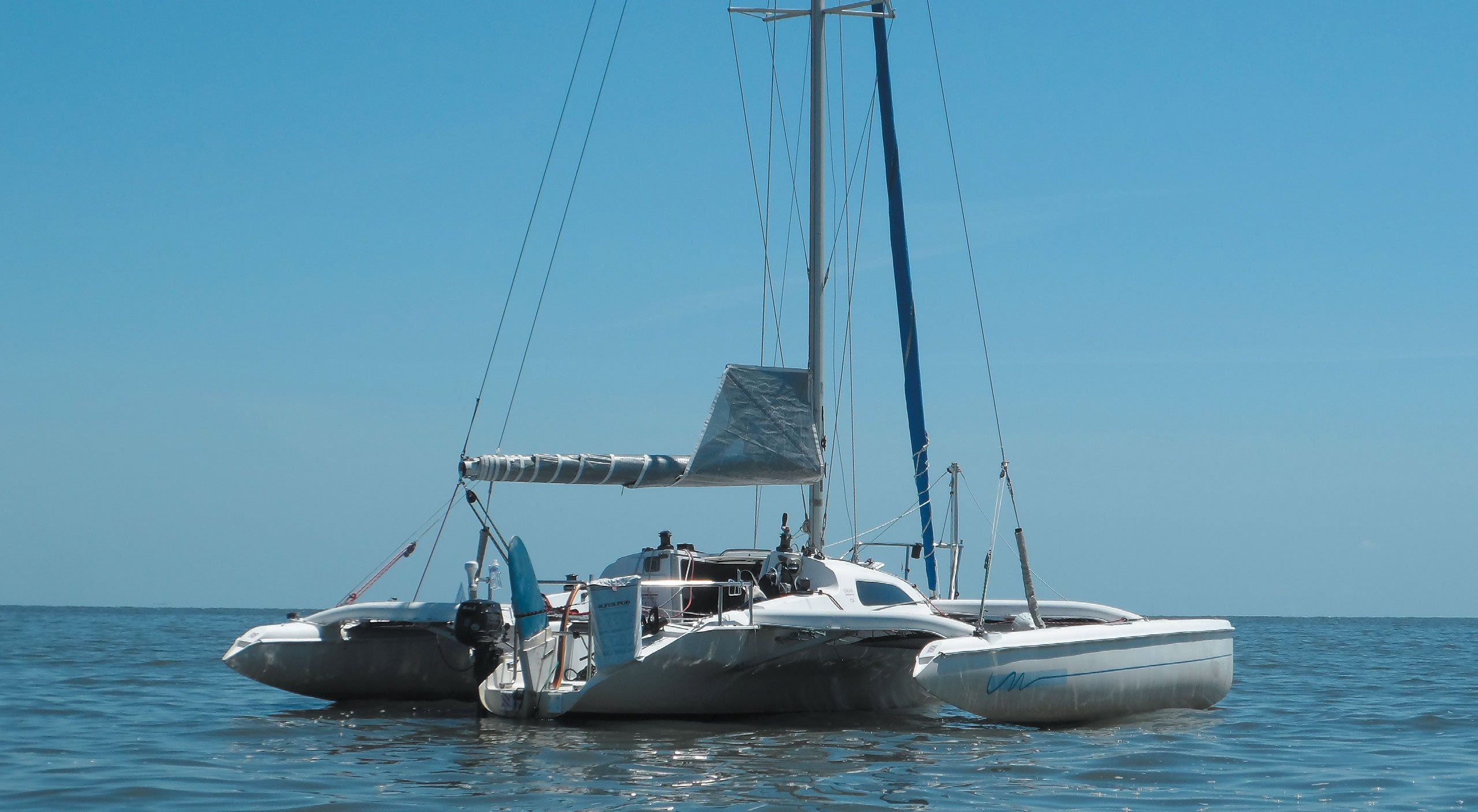

1994 Corsair Marine F24 MkII

No galley images

1994 Corsair Marine F24 MkII
Preview

Boat Overview

  • Type
    Sail
  • Maker
    Corsair Marine
  • Hull type
    Trimaran
  • Hull Material
    Fiberglass
  • Category
    Daysailer Boats, High Performance Boats, Trimaran Boats
  • Boat length (LOA)
    7.38 m

  • See all details

Boat Description

The Corsair F24 Mkii is the perfect boat for people who love to explore and have fun.

Corsair F24 Mkii features a sleek, modern design. It comes with a large cockpit and seating area, which makes it great for entertaining guests on the water. The large cockpit also provides plenty of space for storing your gear, as well as room for up to six people to fit comfortably.

Overview

Specs
Main
General
Designer
Rig & Sails
Engine
Storage
Performance & Ratios
Detail

Discover the Gold

Hide ads, help pay for servers & development and unlock Gold only features like, sharing, advanced dashboard, extra storage space & more!

Try Gold for Free

Specs

Main
NameValue
MakerCorsair Marine
Maker websitehttps://corsairmarine.com/
ModelF24 MkII
First built hull1994
Last built hull2005
Price29900 $
Boat typeSail
Category Daysailer Boats, High Performance Boats, Trimaran Boats
Hull typeTrimaran
Hull materialTrimaran
Cabins1
Births4
General
NameValue
Mast height11.22 m
Length overall7.38 m
Length at waterline7.22 m
Beam overall5.22 m
Draft maximum0.30 m
Displacement816.01 kg
HelmSingle tiller
RudderSingle transom hung rudder
CockpitOpen aft cockpit
Designer
NameValue
Naval architect
Name/StudioIan Farrier
Websitehttp://www.f-boat.com/
Rig & Sails
NameValue
Rotating spars
Mast36.8
SparsAluminum spars
Standing rigging1x19 strand wire continuous
Number of spreaders1
Spreaders angleSwept-back (diamond)
Upwind sail area33.82 sq.m
Mainsail A242
Headsail A122
Engine
NameValue
Engine A
FuelGas
Power5 HP
TypeOutboard
Storage
NameValue
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 26.18
Upwind SA to Displacement39.38
Hull Displacement Speed 6.52
Displacement to Length (D/L) 60.33
Capsize Screening Formula (CSF) 5.63
