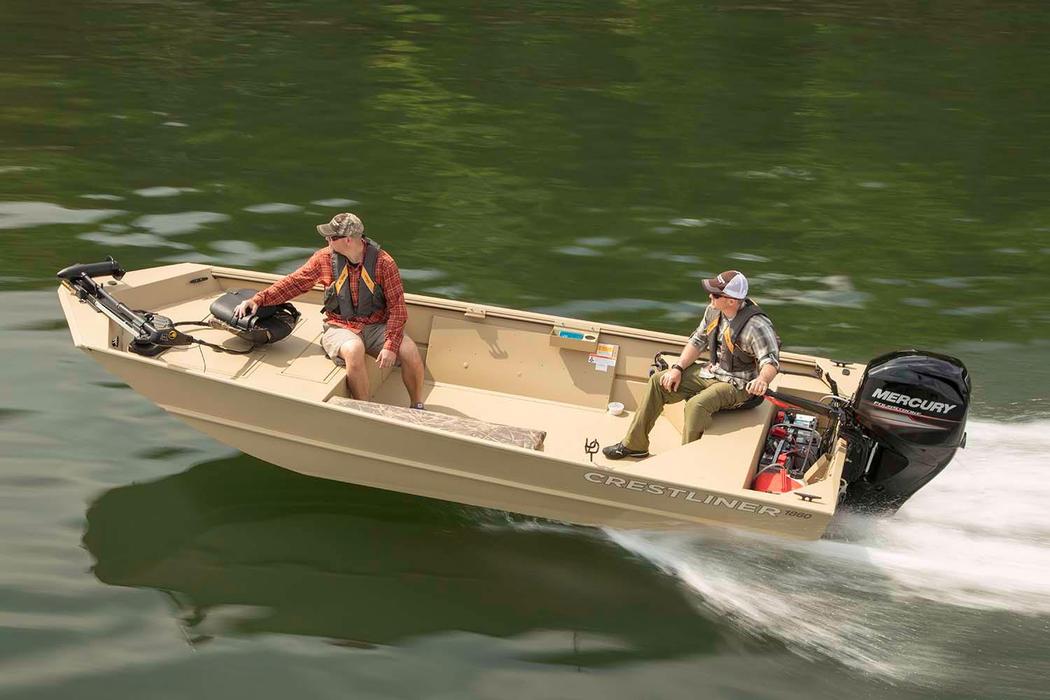

Crestliner 1860 Retriever Jon Deluxe: An 18-Foot Aluminium Jon Boat for Hunting and Fishing
1. General Information
The Crestliner 1860 Retriever Jon Deluxe is a 5.49-metre all-welded aluminium tiller jon boat that works as hard for bass anglers as it does for duck hunters. The Deluxe trim adds lockable bow storage and a 16-gallon aerated livewell to the proven Retriever Jon hull, turning a tough utility boat into a capable fishing platform. With a 2.16-metre beam, seating for six and a 753 kg maximum weight capacity, it carries a full crew, dogs, decoys and tackle. Rated for tiller outboards from 20 to 75 hp, with jet-drive options for skinny water, it is an open day boat built for marshes, backwaters, rivers and shallow lakes.
2. Construction and Design
The hull is all-welded marine aluminium with 2.54 mm (0.100-inch) plating on the bottom, sides and transom, with an optional 3.18 mm (0.125-inch) hull gauge upgrade for owners who want extra toughness. A full-length extruded welded keel, extra-strength extruded ribs and cross and side rib construction add rigidity, while a shallow 3.5-degree deadrise and 1.52-metre chine width create a flat, stable platform for standing to cast or shoot. Six formed strakes and formed spray rails aid tracking, and the flat aluminium floor, wood-free construction, compartment seals and level flotation keep the boat durable and low-maintenance. At around 340 kg dry without an engine, it is easy to tow and launch.
3. Key Features
16-Gallon Aerated Livewell – A bow-mounted livewell of roughly 61 litres keeps bait and catch lively and close at hand.
Lockable Bow Storage – Port and starboard bow compartments with compression latches and seals keep gear secure and dry.
Quick-Access Rod Rack – A port-side rack holds up to three full-size rods ready for action.
Trolling Motor Ready – A 24V bow outlet with 6-gauge wiring harness, a switch panel and a lock-track gunwale simplify rigging.
Hunting-Ready Options – Mossy Oak camouflage finishes, a 53-inch gun box with rod tubes, sponson pods and jet modifications tailor the boat to the marsh.
4. Summary
The Crestliner 1860 Retriever Jon Deluxe suits duck hunters, bass and river anglers who want a roomy, rugged aluminium boat that does both jobs well. Its welded hull, stable flat floor, livewell, secure storage and up-to-75 hp rating make it a dependable, affordable choice for shallow and sheltered waters year-round.
- Crestliner, 1860 Retriever Jon Deluxe, Floor-plan, Plan-view.png16.54MB Download
Overview
Discover the Pro
Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!
Try Pro for FreeSpecs
Performance & Ratios
Compatible outboard range: 20–75 hp (min 20 hp, max 75 hp), tiller-steered. Mercury packages listed: 40ELHPT FourStroke with Advanced Tiller Handle, Jet 40ELPT EFI FourStroke (requires jet modification and transom riser), 50ELHPT EFI, 60ELHPT EFI and 75ELPT EFI FourStroke; no single engine is fitted as standard, so no engine has been recorded.
Seating capacity: 6 persons. Maximum weight capacity: 753 kg (1,659 lbs).
Dry weight (no engine): 340 kg (749 lbs); with maximum engine: 503 kg (1,108 lbs).
Aluminium gauge: 2.54 mm (0.100") bottom, sides and transom; optional 3.18 mm (0.125") hull gauge. All-welded hull with full-length extruded welded keel, cross and side rib construction, six formed 1-1/4" strakes and formed spray rails.
Deadrise: 3.5°. Chine width: 1.52 m (60"). Transom height: 0.51 m (20"). Side depth: 0.61 m (24").
16 US gal (approx. 61 L) aerated bow livewell (42" x 10" x 9"); port quick-access rod rack for up to 3 full-size rods; lockable port and starboard bow storage with compression latches; low bow platform and bow pedestal base; winged stern bench seat on seat track.
24V bow trolling motor outlet with 6-gauge wiring harness; switch panel; manual bilge pump; level flotation; navigation light; wood-free construction; enamel paint.
Boat/motor/trailer length: 6.40 m (21'); width 2.16 m (7'1"); height 2.08 m (6'10"). Standard trailer: basic 816 kg (1,800 lb) bunk trailer, painted black.
Options include Big Tiller Handle, Crest-Liner interior coating, jet modification (incl. 27" transom version), sponson pods, 53" gun box with rod tubes, welded transducer bracket, spray deflector and Tempress seats. Colours: Marsh Tan, Olive Drab, Mossy Oak Break-Up and Mossy Oak Shadowgrass Blades.
Reference Price is the manufacturer's starting MSRP (base package, USA, excludes prop/freight/prep/taxes): US$25,090.
