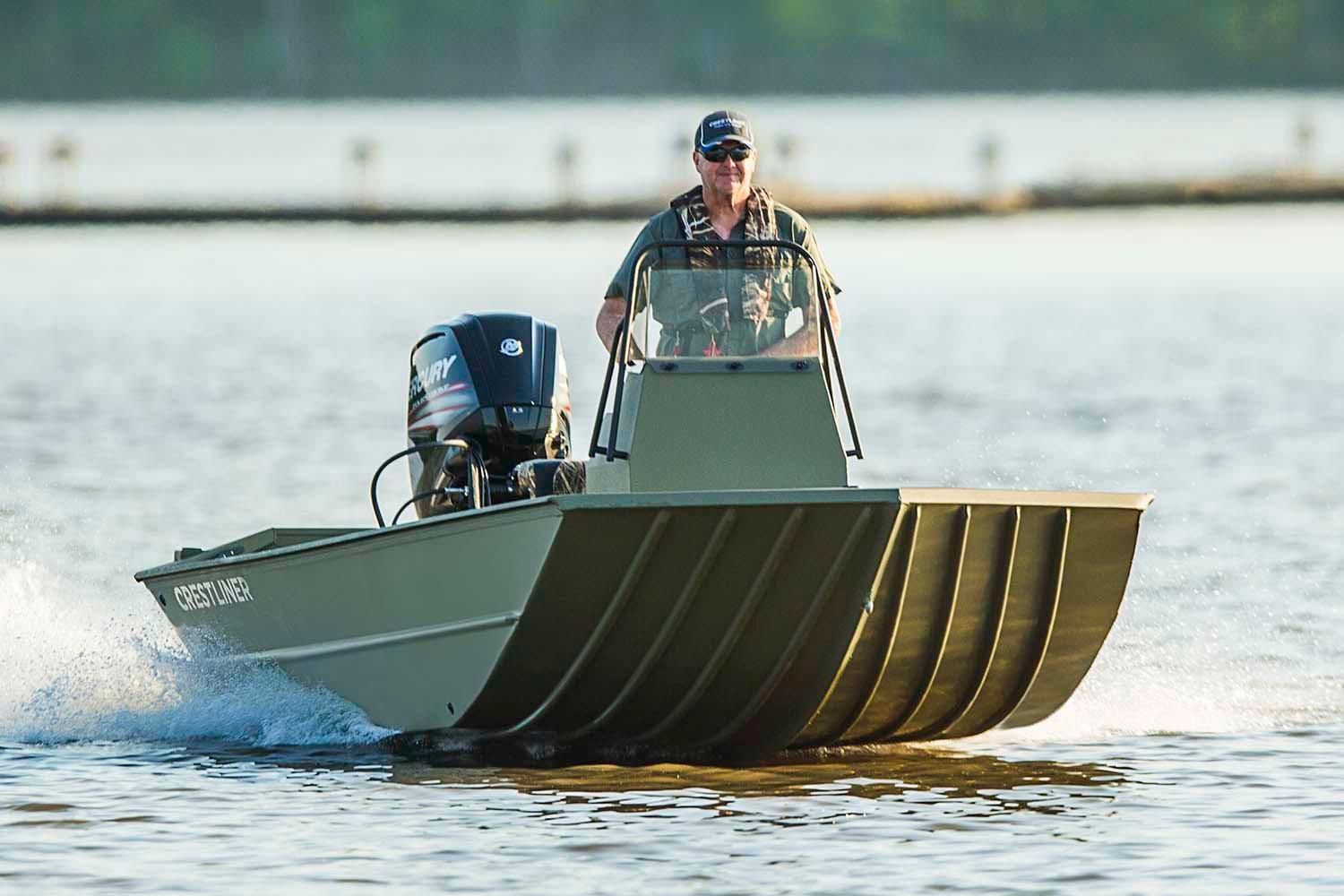

Crestliner 1870 Retriever FCC: A Shallow-Water Tunnel-Hull Jet Boat with Forward Centre Console
1. General Information
The Crestliner 1870 Retriever FCC is a 5.49-metre all-welded aluminium forward-centre-console boat built on a jet tunnel hull, designed to reach the shallow, rocky and weedy water that conventional boats cannot. Among the newest additions to the Retriever series, it is aimed at river anglers, waterfowl hunters and outdoors enthusiasts who need to run skinny water confidently. A 2.44-metre beam, seating for seven and a 736 kg maximum weight capacity provide room for a full crew and gear, while the forward console gives the driver a clear line of sight to read the water ahead. It is rated for jet outboards from 65 to 105 hp.
2. Construction and Design
The all-welded aluminium tunnel-jet hull uses 2.54 mm (0.100-inch) plating on the bottom, sides and transom, with an optional 3.18 mm (0.125-inch) hull gauge for extra protection on rocky shorelines. A full-length extruded welded keel, extra-strength extruded ribs, cross and side rib construction, six formed strakes and formed spray rails add strength and tracking, while the shallow 3.5-degree deadrise and 1.78-metre chine width give a flat, stable platform. A 0.69-metre transom suits jet outboards, and the flat aluminium floor, wood-free construction, compartment seals and level flotation keep the boat durable and easy to maintain. The forward-mounted aluminium console carries six vertical rod holders, toggle switches, a 12V outlet and space for top-mounted electronics.
3. Key Features
Jet Tunnel Hull – Lets the boat run and manoeuvre in extremely shallow water, reaching spots other boats cannot.
Forward Centre Console – Improves visibility ahead and holds six rods vertically alongside switches and electronics space.
17-Gallon Aerated Livewell – A bow livewell of roughly 64 litres keeps bait and catch in good condition.
Spacious Bow Storage – Dual port and starboard compartments with snap latches keep gear secure and dry.
Seven-Person Capacity – Room for a full crew, with a box seat, stern platform and service compartment.
4. Summary
The Crestliner 1870 Retriever FCC suits river anglers and hunters who need to get into the shallowest, rockiest water with confidence. Its welded tunnel-jet hull, forward console visibility, livewell and storage make it a rugged, versatile choice for rivers, backwaters and marshes.
- Crestliner, 1870 Retriever FCC, Floor-plan, Plan-view.jpg0.70MB Download
Overview
Discover the Pro
Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!
Try Pro for FreeSpecs
Performance & Ratios
Rated for jet outboards of 65–105 hp (min 65 hp, max 105 hp). Mercury packages listed: Jet 65ELPT EFI (requires jet modification or jet modification with 27" transom option), Jet 80ELPT EFI (requires transom riser) and Jet 105ELPT EFI FourStroke; no single engine is fitted as standard, so no engine has been recorded.
Seating capacity: 7 persons. Maximum weight capacity: 736 kg (1,623 lbs).
Dry weight (no engine): 440 kg (970 lbs); with maximum engine: 611 kg (1,348 lbs).
Aluminium gauge: 2.54 mm (0.100") bottom, sides and transom; optional 3.18 mm (0.125") hull gauge. All-welded tunnel-jet hull with full-length extruded welded keel, cross and side rib construction, six formed 1-1/4" strakes and formed spray rails.
Deadrise: 3.5°. Chine width: 1.78 m (70"). Transom height: 0.69 m (27"). Side depth: 0.61 m (24").
Fuel capacity: 19 US gal (approx. 72 L). 17 US gal (approx. 64 L) aerated bow livewell (43" x 11.5" x 8").
Standard: forward aluminium console with 6 vertical rod holders, port quick-access rod rack for 3 rods, box seat with storage, 2 pedestal bases, bow platform, stern platform with service compartment, bow storage with snap latches, bow trolling motor outlet with 6-gauge harness, manual bilge pump.
Boat/motor/trailer length: 6.40 m (21'); width 2.44 m (8'); height 2.08 m (6'10"). Standard trailer: basic 1,089 kg (2,400 lb) bunk trailer, painted black.
Options include Gauge Package, windscreen, Tempress seats, leaning post, Crest-Liner interior coating, sponson pods, welded transducer bracket and spray deflector. Colours: Marsh Tan, Olive Drab, Mossy Oak Break-Up, Mossy Oak Shadowgrass Blades and painted black/white/gun-metal with grey Crest-Liner interior.
Reference Price is the manufacturer's starting MSRP (base package, USA, excludes prop/freight/prep/taxes): US$32,414.
