Boat Description
Crestliner 2070 Retriever SCHD: The Toughest 20-Foot Aluminium Side Console in the Retriever Range
1. General Information
The Crestliner 2070 Retriever SCHD (Side Console Heavy Duty) is a 6.10-metre all-welded aluminium boat built for anglers and hunters who work hard water and harder conditions. It is the most rugged model in the Retriever family, with thicker plating than the standard SC, a broad 2.44-metre beam and seating for seven. A huge aerated bow livewell makes it a natural choice for catfishing, while its side console, storage and rod racks keep it just as capable on a duck hunt or a river trip. It is rated for 75 to 150 hp outboards, including a Mercury jet option for shallow water.
2. Construction and Design
What sets the SCHD apart is its 3.18 mm (0.125-inch) aluminium plating on the bottom, sides and transom, paired with an all-welded hull, a full-length extruded welded keel and extra-strength extruded ribs in a cross and side rib layout. A shallow 3.5-degree deadrise and 1.78-metre chine width create a flat, stable working platform, with eight formed strakes and formed spray rails for tracking. Inside, the flat aluminium floor, wood-free construction, compartment seals and level flotation keep maintenance low. The forward-mounted aluminium console carries three vertical rod holders, switches, a 12V outlet, a master power switch and space for electronics, and the boat weighs around 552 kg dry without an engine.
3. Key Features

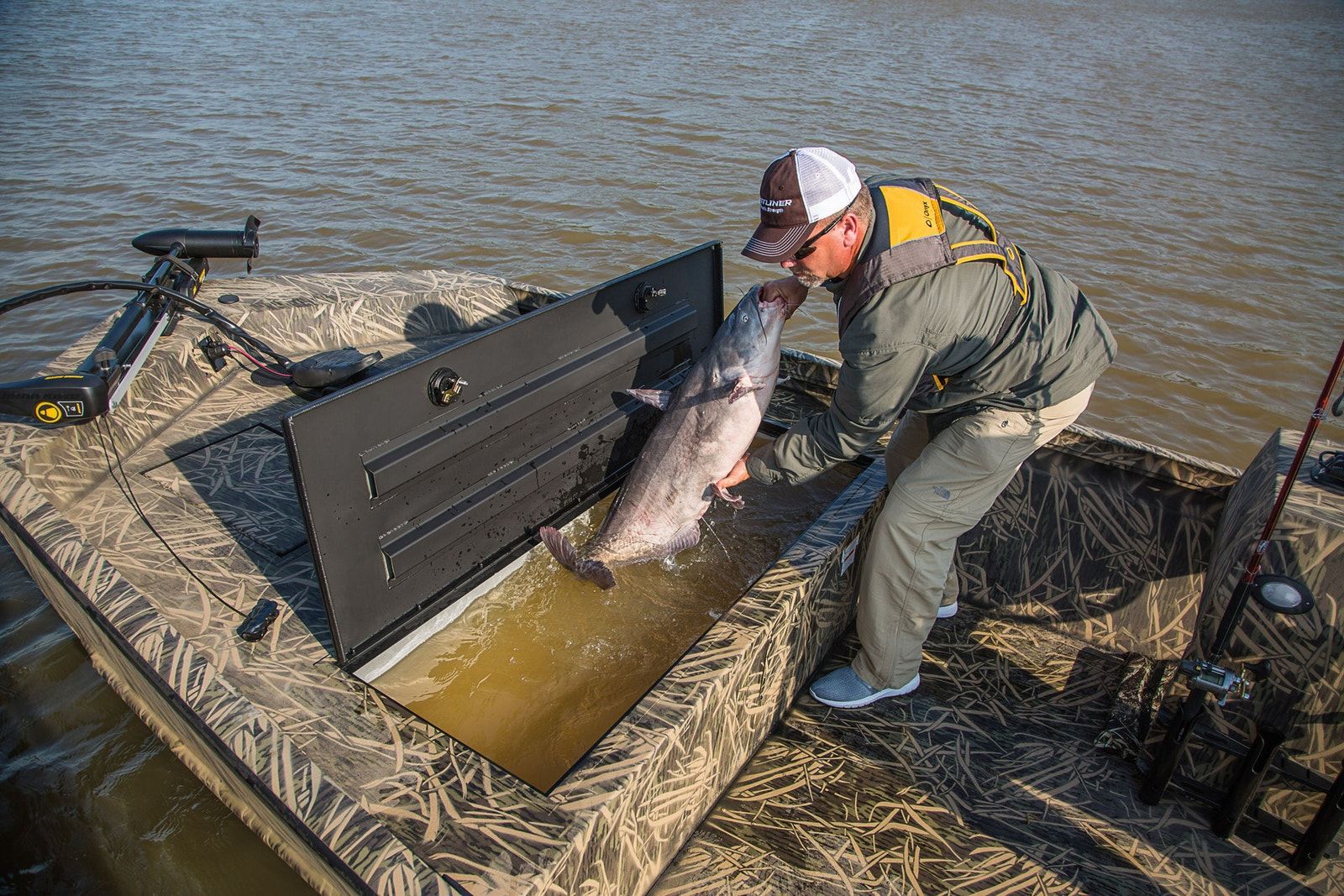

60-Gallon Bow Livewell – A 227-litre aerated livewell with removable dividers handles big catches, especially catfish.
Heavy-Duty Hull – 3.18 mm aluminium plating throughout makes this the toughest Retriever model.

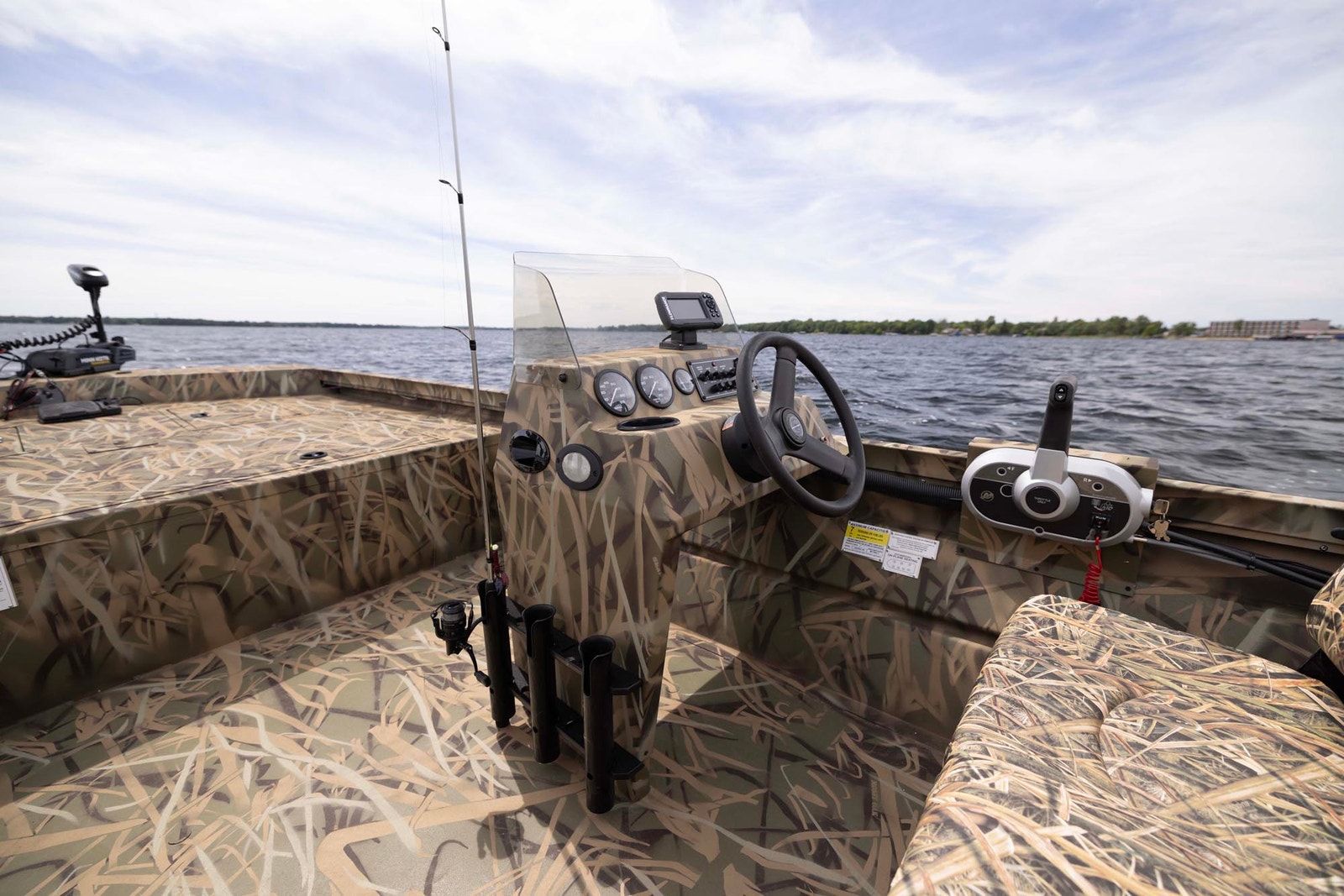

Aluminium Side Console – Room for electronics, three vertical rod holders, a drink holder and a grab handle.

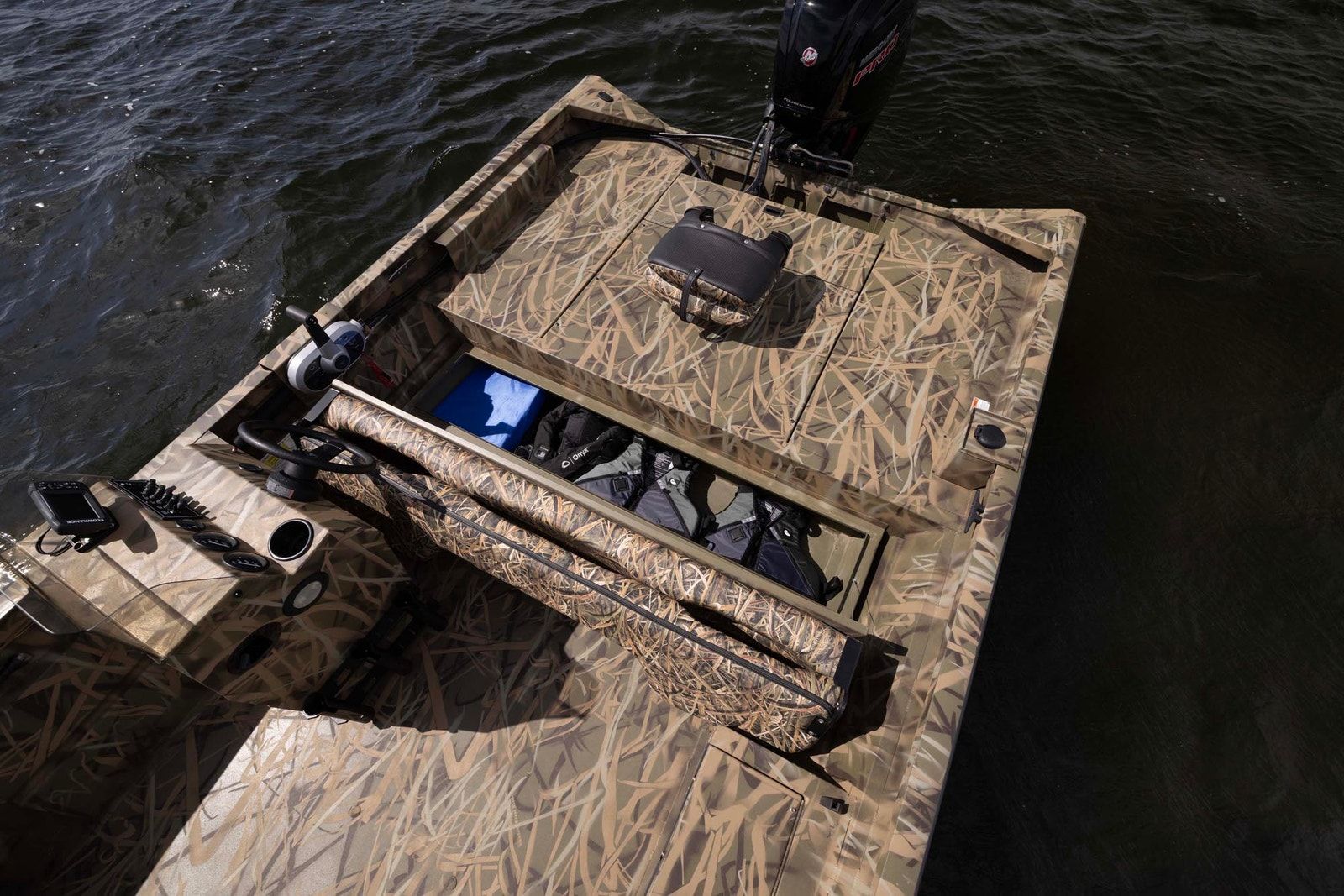

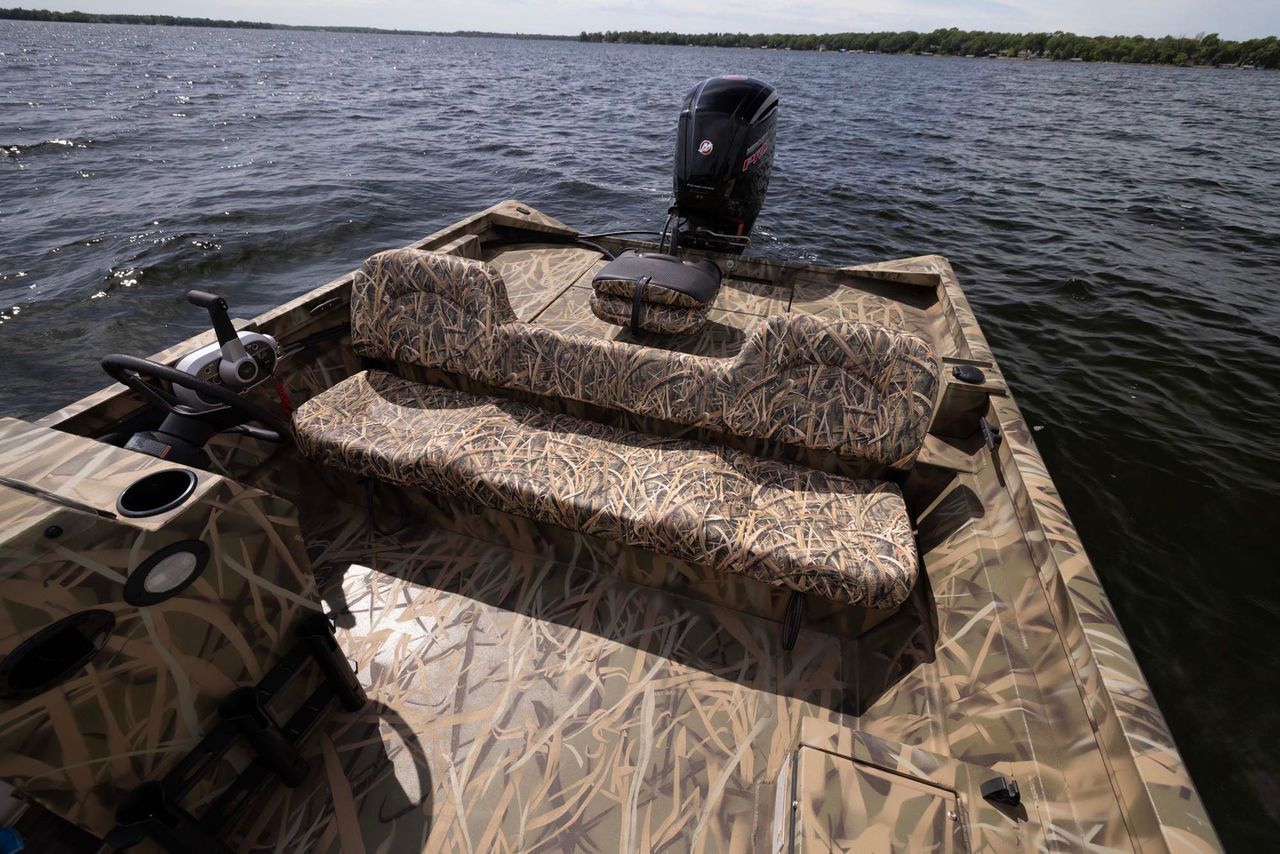

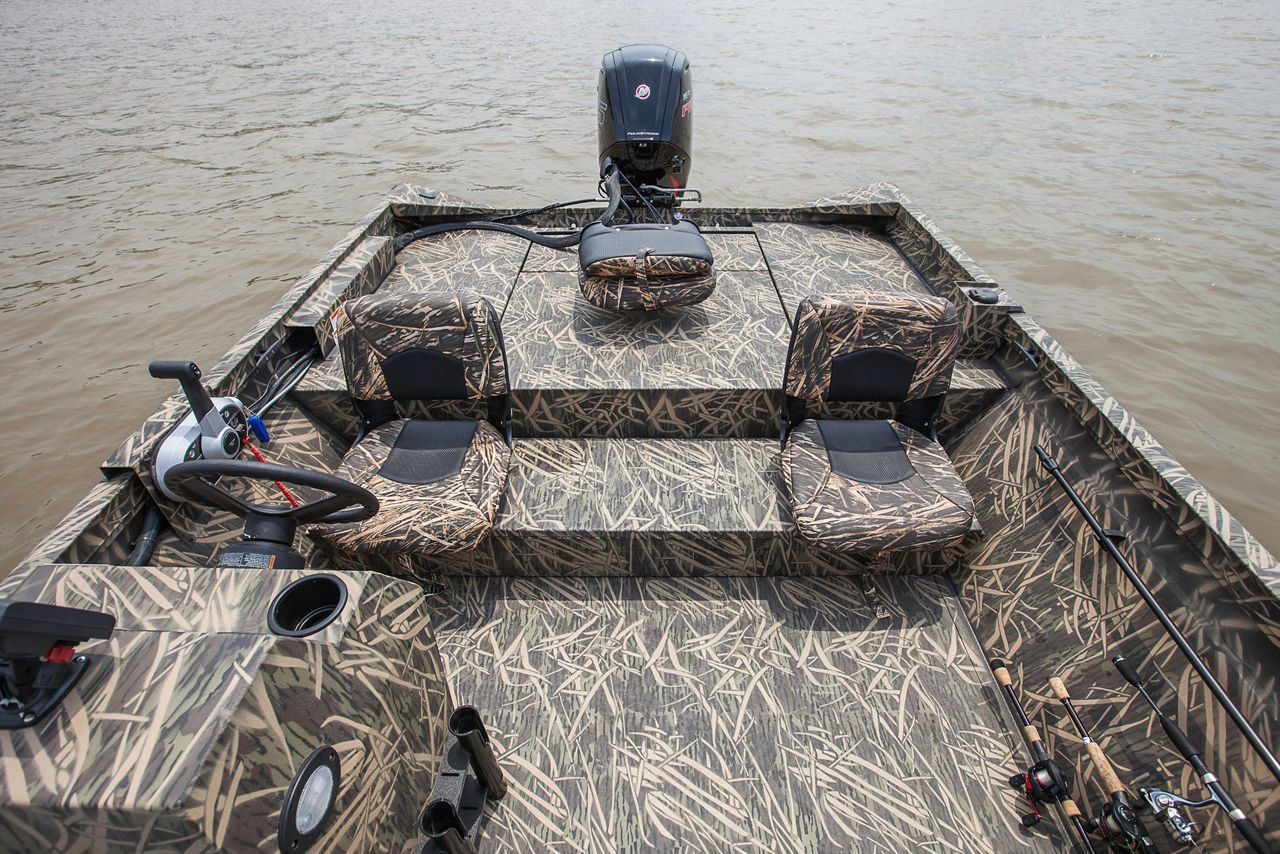

Seats with Storage Below – Two Mossy Oak Shadowgrass Tempress seats, with lockable bow compartments and a stern service platform for gear.
Quick-Access Rod Storage – A port rod rack holds three full-size rods, ready for action.
4. Summary
The Crestliner 2070 Retriever SCHD suits anglers and hunters who want the strongest possible aluminium side console for rivers, marshes and big lakes. Its heavy-gauge welded hull, stable flat floor, massive livewell and wide power range make it a dependable, do-anything workboat.

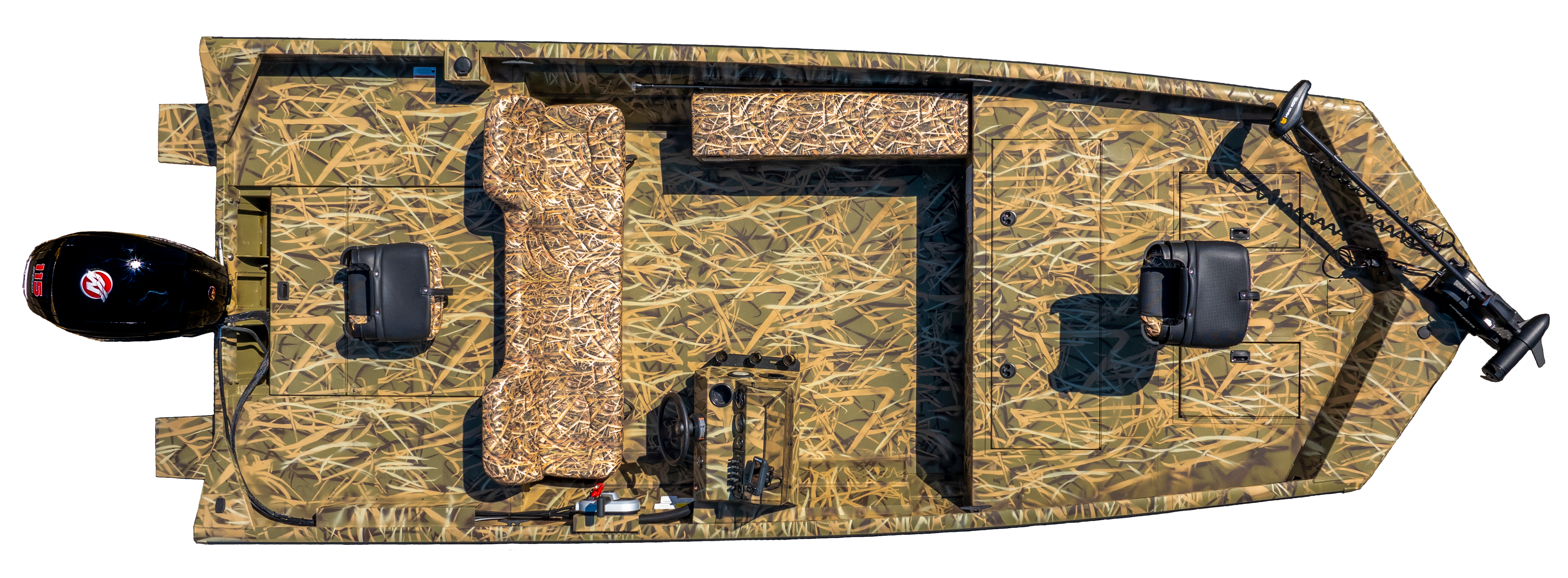

- Crestliner, 2070 Retriever SCHD, Floor-plan, Plan-view.png11.93MB Download
Overview
Discover the Pro
Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!
Try Pro for FreeSpecs
Performance & Ratios
Outboard range: 75–150 hp (min 75 hp, max 150 hp). Mercury packages listed: Jet 105ELPT EFI (requires jet modification), 115ELPT EFI, 115ELPT Pro XS, 150L and 150L Pro XS FourStroke (150 hp requires hydraulic steering); no single engine is fitted as standard, so no engine has been recorded.
Seating capacity: 7 persons. Maximum weight capacity: 845 kg (1,862 lbs).
Dry weight (no engine): 552 kg (1,218 lbs); with maximum engine: 759 kg (1,674 lbs).
Aluminium gauge: 3.18 mm (0.125") bottom, sides and transom. All-welded hull with full-length extruded welded keel, cross and side rib construction, eight formed 1-1/4" strakes and formed spray rails.
Deadrise: 3.5°. Chine width: 1.78 m (70"). Transom height: 0.51 m (20"). Side depth: 0.61 m (24").
Fuel capacity: 19 US gal (approx. 72 L). 60 US gal (approx. 227 L) aerated bow livewell with removable dividers (60" x 22" x 10.5"). Port quick-access rod rack for 3 full-size rods plus 3 vertical rod holders on the console.
Boat/motor/trailer length: 7.01 m (23'); width 2.44 m (8'); height 2.08 m (6'10"). Standard trailer: basic 998 kg (2,200 lb) bunk trailer, painted black.
Options include Gauge Package, windscreen, horn, hydraulic steering, bench seats, sponson pods, 53" gun box, bow trim switch, battery chargers, Crest-Liner interior coating and factory-installed Hook 3x or Lowrance Hook 5x fishfinders. Colours: Marsh Tan, Olive Drab, Mossy Oak Break-Up and Mossy Oak Shadowgrass Blades.
Reference Price is the manufacturer's starting MSRP (base package, USA, excludes prop/freight/prep/taxes): US$36,634.
