Boat Overview

Boat Description

The era of the performance cruiser began 30 years ago with the Dehler 34. Today, the new Dehler 34 is the direct successor of this cult yacht. Discover the original of this performance cruiser in its modern form!

The Dehler 34 sets standards in its class, with its living space, headroom and tank volumes and offers outstanding sailing performance. Dehler yachts stand out with their unique personality, which amazes with clear lines. Simply unmistakeable.

Available as standard, the Dehler Carbon Cage lends the hull 20 per cent more stability. That means you can sail higher into the wind with your Dehler.

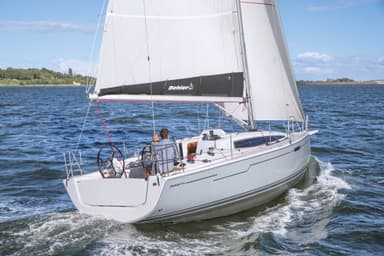

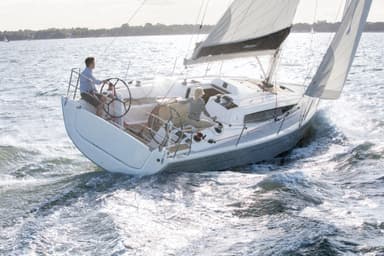

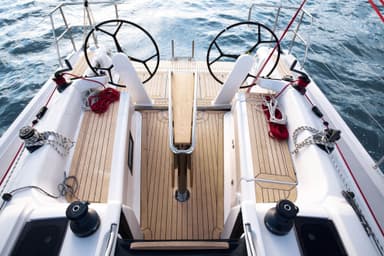

Choose how you want to have control over your Dehler. The twin wheels come as standard, or opt for the tiller steering. All sheets can be led directly to the helm via the six winches integrated as standard. You will immediately notice the tidy and clear deck layout. This is particularly thanks to the rope guidance integrated into the deck and out of sight.

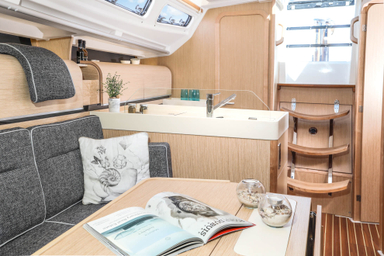

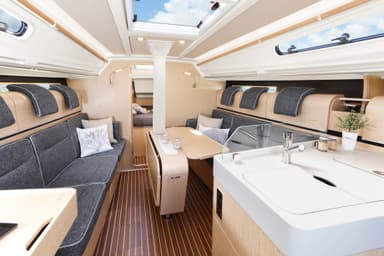

Elegantly rounded corners, perfectly harmonised colours and soft lighting pamper you below deck.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerDehler
Maker websitehttps://www.hanseyachtsag.com/dehler
Model34
First built hull2016
VersionStandard
Price117,000 €
Boat typeSail
CategoryDaysailer BoatsHigh Performance BoatsMotorsailer Boats
Hull typeMonohull
Hull materialMonohull
Cabins2
Births4
Heads1
General
NameValue
Mast height16.31 m
Length overall10.7 m
Length at waterline9.63 m
Beam overall3.38 m
Draft maximum1.98 m
Displacement5,950.22 kg
Ballast weight2,100.13 kg
Ballast typeCast iron
HelmSingle tiller (helm wheel in option)
RudderSingle spade rudder (twin as option)
CockpitClosing aft cockpit with opening system
Designer
NameValue
Naval architect
Name/StudioJudel/Vrolijk Design
Websitehttp://www.judel-vrolijk.com/
Rig & Sails
NameValue
Mast53.5
SparsMast and boom in Aluminum (carbon fiber as an option)
Standing riggingDyform
Spreaders angleSwept-back
Upwind sail area65.03 sq.m
Downwind sail area127.46 sq.m
Mainsail A404
Headsail A296
Spinnaker A829
Spinnaker A969
Spinnaker A552
Engine
NameValue
Engine A
FuelDiesel
Power27 HP
TypeInboard engine
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.05
Upwind SA to Displacement20.14
Downwind SA to Displacement39.48
Hull Displacement Speed 0.05
Displacement to Length (D/L) 7.53
Ballast to Displacement (B/D) 0.35
Capsize Screening Formula (CSF) 1.88
