Boat Overview

Boat Description

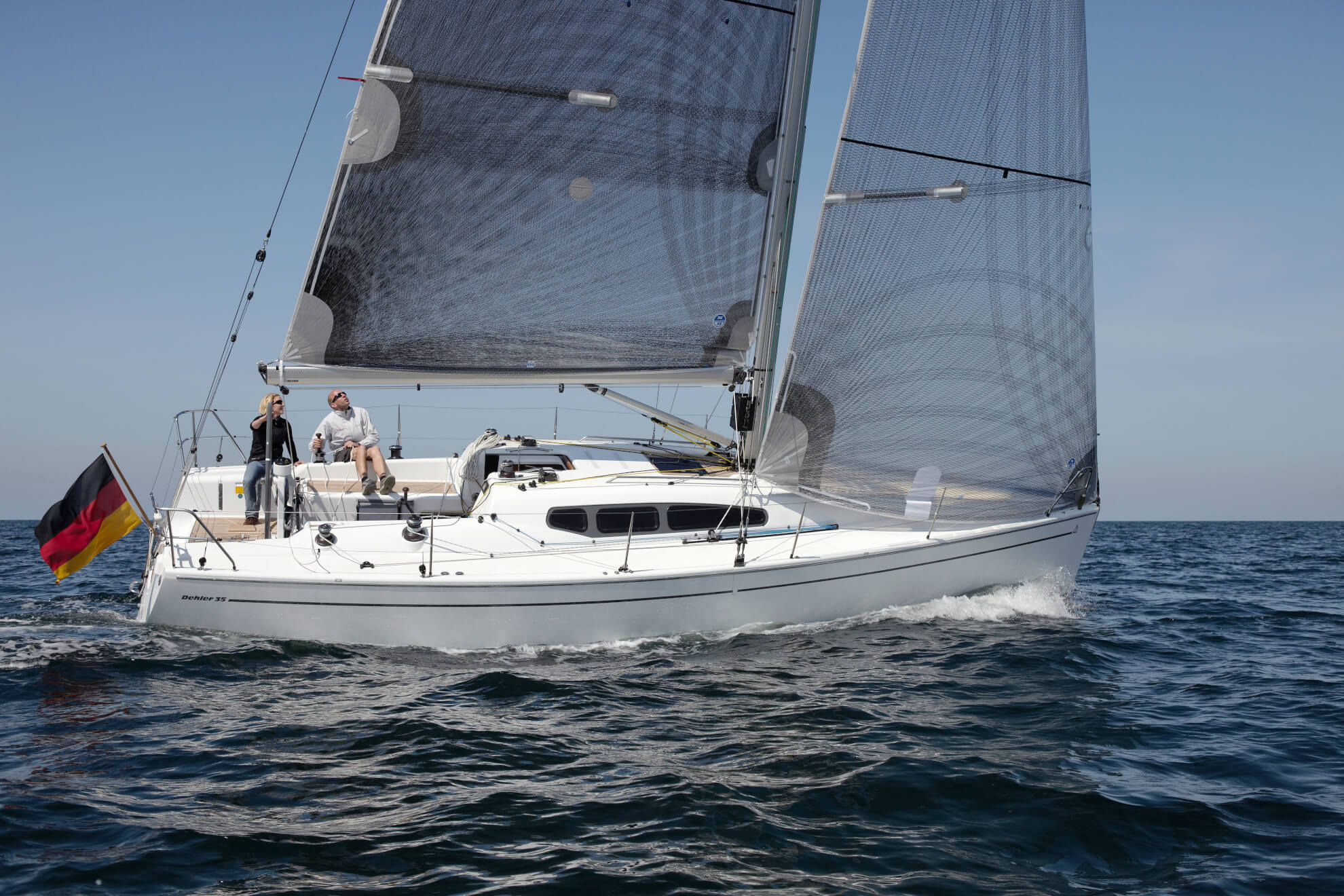

In 2010 the Dehler 35 was extensively modified to meet the high standards expected of a fast, premium-quality yacht in the 11-meter class. Its design, workmanship, the premium T-keel configuration and the direct-action helm and rudder system guarantee optimum safety and reliability. The Dehler 35 is fast and easy to steer. The tidy deck layout is handled easily by small crews as well."

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerDehler
Maker websitehttps://www.hanseyachtsag.com/dehler
Model35SQ
First built hull2010
VersionStandard
Price135,000 £
Boat typeSail
CategoryDaysailer BoatsHigh Performance BoatsMotorsailer Boats
Hull typeMonohull
Hull materialMonohull
Cabins2
Births4
Heads1
General
NameValue
Top speed11.96 kmh
Mast height17.41 m
Length overall10.55 m
Length at waterline9.17 m
Beam overall3.54 m
Draft maximum1.98 m
Displacement5,520.21 kg
Ballast weight1,880.14 kg
Ballast typeCast iron
HelmTwin helm wheels
RudderSingle spade rudder
CockpitOpen aft cockpit
Designer
NameValue
Naval architect
Name/StudioSimonis & Voogd Design
Websitehttp://www.simonis-voogd.com
Rig & Sails
NameValue
Mast57.11
SparsAluminum spars
Standing rigging1x19 strand wire
Number of spreaders2
Spreaders angleSwept-back
Upwind sail area79.34 sq.m
Downwind sail area145.02 sq.m
Mainsail A420
Headsail A434
Headsail B355
Spinnaker A1141
Spinnaker A980
Engine
NameValue
Engine A
FuelDiesel
Power28 HP
TypeInboard
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.06
Upwind SA to Displacement25.83
Downwind SA to Displacement47.22
Hull Displacement Speed 0.06
Displacement to Length (D/L) 7.35
Ballast to Displacement (B/D) 0.34
Capsize Screening Formula (CSF) 2.02
