Boat Overview

Boat Description

The new Dufour 520 Grand Large has introduced concepts that revolutionise many aesthetic and functional aspects of the Grand Large range, both externally and internally.

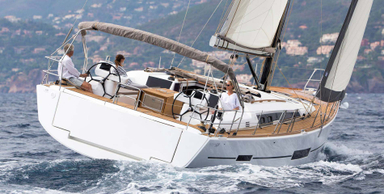

The cockpit is equipped with an outdoor barbecue and an integrated fridge in the table, which is well designed to give more space between the seating.
True innovation is the optional transom stern with a two-level electronic platform that allows a truly comfortable sea access and a larger living space even when using the barbecue.

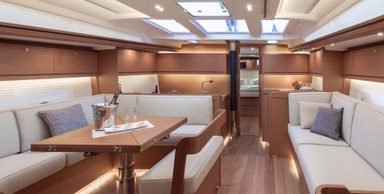

Interesting is also the new pod that gives most space to all the instruments in order to facilitate the control during the navigation. Internally, the welcome of the new D520 is perceived in many details: from the well-designed opening table, to the led lights positioned with a new design idea, to the separate beds in the stern cabins to facilitate the access and give more space to the cabins, up to the bathrooms whose new materials used have greatly raised the level of quality and elegance.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerDufour Yachts
Maker websitehttps://www.dufour-yachts.com
Model520 Grand Large
First built hull2017
Price341,098 $
Boat typeSail
CategoryCruiser BoatsDaysailer Boats
Hull typeMonohull
Hull materialMonohull
Cabins3
Births6
Heads2
General
NameValue
Top speed14.44 kmh
Length overall14.97 m
Length at waterline13.44 m
Beam overall4.82 m
Headroom2.04 m
Draft maximum2.32 m
Displacement15,244.77 kg
Ballast weight4,071.9 kg
Helm2 wheels
Rudder1 spade rudder
CockpitClosing aft cockpit with opening system
Designer
NameValue
Naval architect
Name/StudioFelci Yacht Design
Websitehttps://www.felciyachtdesign.com
Rig & Sails
NameValue
SparsMast and boom in Aluminum (carbon fiber as an option)
Number of spreaders2
Spreaders angleSwept-back
Upwind sail area100.8 sq.m
Downwind sail area172.8 sq.m
Mainsail A568
Headsail A517
Spinnaker A1292
Engine
NameValue
Engine A
FuelDiesel
Power75 HP
TypeInboard
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.03
Upwind SA to Displacement16.68
Downwind SA to Displacement28.59
Hull Displacement Speed 0.03
Displacement to Length (D/L) 8.9
Ballast to Displacement (B/D) 0.27
Capsize Screening Formula (CSF) 1.96
