Boat Overview

Boat Description

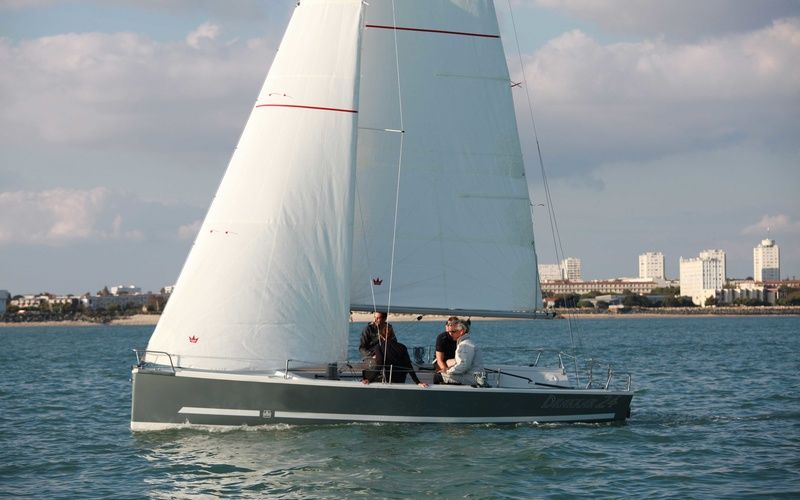

Drakkar 24 essentially is a big dinghy with a ballasted centre plate, aimed at clubs and sailing schools as well as people who want a boat that’s roomy, light, forgiving, undemanding to sail and easy to trail, launch and recover. At the same time Drakkar 24 was designed to be sufficiently engaging to be fun to race.

Weighing a mere 1,900lb (870kg), the Drakkar has a swinging centre plate rather than a vertically-lifting dagger board, and a cockpit with room for eight. She has no main sheet traveller (though one is shown in the early photographs) and a conventional mainsail with a high boom and a conservative amount of roach that allows the use of a back stay.

Combined with the rig of modest size, the moderately proportioned hull and the single rudder, it sends out a clear message: she should be reasonably fast but definitely not furious. I will come to the systems and details, but first: how does she sail? If a boat like this doesn’t behave as she’s designed to, the rest is academic.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerDufour Yachts
Maker websitehttps://www.dufour-yachts.com
ModelDrakkar 24
First built hull2015
Last built hull2018
Price28,000 €
Boat typeSail
CategoryCruiser BoatsDaysailer BoatsSports Cruiser Boats
Hull typeMonohull
Hull materialMonohull
General
NameValue
Top speed10.15 kmh
Length overall7.01 m
Length at waterline6.74 m
Beam overall2.56 m
Draft maximum1.25 m
Displacement869.99 kg
Ballast weight299.82 kg
Helm1 tiller
Rudder1 transom hung rudder
CockpitOpen aft cockpit
Trailerable
Designer
NameValue
Naval architect
Name/StudioFelci Yacht Design
Websitehttps://www.felciyachtdesign.com
Rig & Sails
NameValue
SparsMast and boom in Aluminum
Standing rigging1x19 strand wire continuous
Number of spreaders1
Spreaders angleSwept-back
Upwind sail area26.66 sq.m
Downwind sail area58.99 sq.m
Mainsail A161
Headsail A126
Headsail B90
Spinnaker A398
Spinnaker A474
Engine
NameValue
Simple Empty
No data
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.08
Upwind SA to Displacement29.75
Downwind SA to Displacement65.83
Hull Displacement Speed 0.08
Displacement to Length (D/L) 6.3
Ballast to Displacement (B/D) 0.34
Capsize Screening Formula (CSF) 2.71
