Boat Overview

Boat Description

What a day! You're sailing across the ocean, with nothing but the wind and the waves to keep you company. The sun's shining down on your boat, and you're just watching as it glides along through the water.

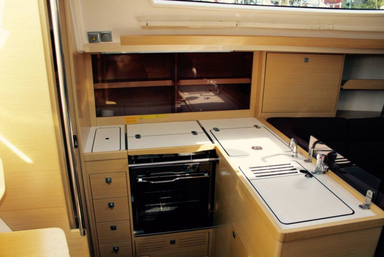

The Elan 340 is a yacht that'll let you live that dream every single day and more. She has two cabins below deck, one for sleeping and one for hanging out. There's also a galley with a stovetop and oven, so if you want to make some food for yourself or your crew mates, no problem! Plus, there's plenty of space in the cockpit for lounging around in the sun with friends.

When it comes down to it, this is just about as close as you can get to living on a boat without actually living on one (if that makes sense).

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerElan Yachts
Maker websitehttps://www.elan-yachts.com
Model340
First built hull2006
VersionStandard/Deep draft
Price69,000 €
Boat typeSail
CategoryCruiser/Racer BoatsDaysailer Boats
Hull typeMonohull
Hull materialMonohull
Cabins2
Births4
Heads1
General
NameValue
Top speed11.94 kmh
Length overall9.78 m
Length at waterline9.36 m
Beam overall3.51 m
Headroom1.89 m
Draft maximum1.98 m
Displacement5,090.21 kg
Ballast weight1,481.89 kg
HelmSingle helm wheel
RudderSingle spade rudder
CockpitOpen aft cockpit
Designer
NameValue
Naval architect
Name/StudioHumphreys Yacht Design
Websitehttp://www.humphreysdesign.com
Rig & Sails
NameValue
SparsAluminum spars
Number of spreaders2
Spreaders angleSwept-back
Upwind sail area59.55 sq.m
Downwind sail area118.27 sq.m
Mainsail A356
Headsail A285
Spinnaker A917
Engine
NameValue
Engine A
FuelDiesel
Power30 HP
TypeInboard
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.05
Upwind SA to Displacement20.47
Downwind SA to Displacement40.65
Hull Displacement Speed 0.05
Displacement to Length (D/L) 7.42
Ballast to Displacement (B/D) 0.29
Capsize Screening Formula (CSF) 2.06
