Olivier Racoupeau

elba 45 1

elba 45 2

elba 45 3

elba 45 4

Composite_material

<p>Catamaran boats falls under the multihull boat category. This is a vessel with two hulls, connected through a platform that creates one catamaran yacht. Check out all multihull boat specifications on this website and learn more about them. Catamaran sailboats can be used for world cruising, fishing, chartering or day-sailing. These vessels can have only engines as propulsion means, instead of sails, in which case they are known as powered catamarans and are quite popular thanks to their stability and maneuverability. Explore all different types of catamaran sailboats on TheBoatDB and learn more about this design that dates back hundreds of years ago.</p>

Catamaran Boats

elba-45-1_1571671299

Factory

Fountaine Pajot

Euro

<p>The category of sailboats includes both <a href="https://theboatdb.com/boats/category/daysailer">sailing yachts</a> which are luxurious and charming vessels used for recreational purposes, as well as <a href="https://theboatdb.com/boats/category/cruiserracer">racing sailboats</a> that are used for sports. Some have a single hull while others can have two or three. Compare different types of sailboats through sailing boat specs on TheBoatDB and find out the best one for you. Choose according to boat specs, and explore sailboats that vary from very large vessels, appropriate for ocean cruising, to small ones used to roam the shores.</p>

Name	Value
Maker	Fountaine Pajot
Maker website	https://www.fountaine-pajot.com/en/
Model	Elba 45
First built hull	2019
Boat type	Sail
Category	Catamaran Boats
Hull type	Catamaran Boats
Hull material	Catamaran Boats

Name	Value
Length overall	13.44 m
Beam overall	7.35 m
Draft maximum	0.95 m
Displacement	14000.12 kg
Helm	1 wheel
Rudder	2 spade rudders
Cockpit	Aft cockpit and flybridge

Name	Value
Naval architect
Name/Studio	Olivier Racoupeau
Website	http://www.berret-racoupeau.com/

Name	Value
Spars	Mast and boom in Aluminum
Standing rigging	1x19 strand wire continuous
Number of spreaders	2
Spreaders angle	Swept-back (diamond)
Upwind sail area	124.03 sq.m
Mainsail A	807.00

Name	Value
Engine A
Power	60 HP
Type	Inboard engine ; Diesel
Engine B
Power	60 HP
Type	Inboard engine ; Diesel

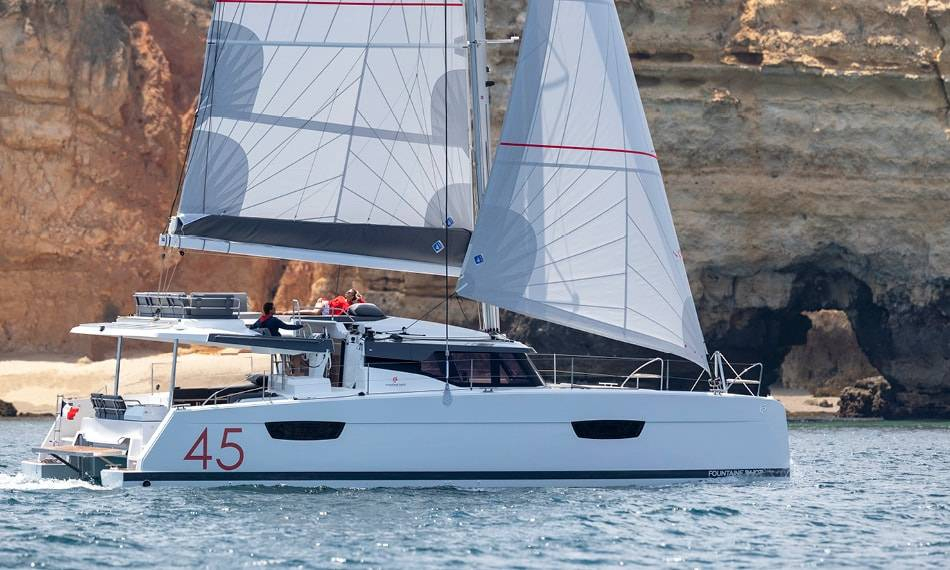

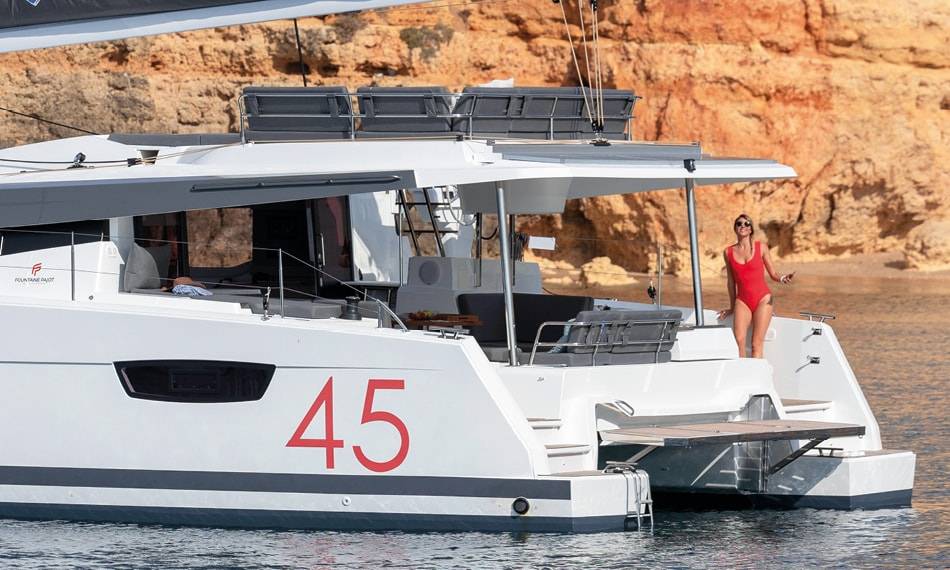

2019 Fountaine Pajot Elba 45

Boat Overview

Type

Sail

Maker

Fountaine Pajot

Hull type

Catamaran Boats

Hull Material

Composite_material

Category

Catamaran Boats

Boat length (LOA)

13.44 m

See all details

Overview

Discover the Gold

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	13.13
Upwind SA to Displacement	21.72
Capsize Screening Formula (CSF)	3.07
