Name	Value
Maker	Gib Sea
Model	Gib'Sea 302 - Deep draft
First built hull	1992
Version	Deep draft
Boat type	Sail
Category	Cruiser Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	10.91 kmh
Mast height	14.23 m
Length overall	8.99 m
Length at waterline	7.83 m
Beam overall	3.35 m
Draft maximum	1.83 m
Displacement	3,200.09 kg
Ballast weight	1,099.96 kg
Ballast type	Cast iron
Helm	1 tiller
Rudder	1 spade rudder
Cockpit	Closed aft cockpit

Name	Value
Naval architect
Name/Studio	Michel Joubert ; Bernard Nivelt

Name	Value
Mast	46.7
Spars	Mast and boom in Aluminum
Number of spreaders	2
Spreaders angle	Swept-back
Upwind sail area	51.84 sq.m
Downwind sail area	83.06 sq.m
Mainsail A	254.00
Spinnaker A	640.00

Name	Value
Engine A
Power	18 HP
Type	Inboard engine ; Diesel
Engine B

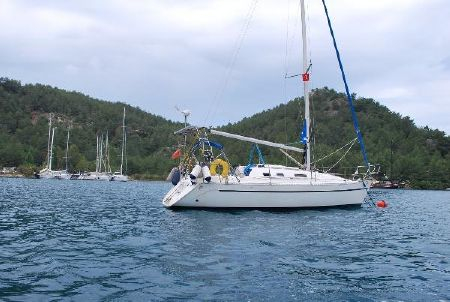

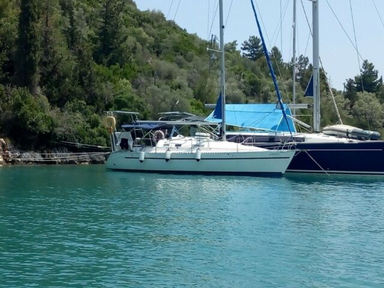

1992 Gib Sea Gib'Sea 302 - Deep draft

Boat Overview

Type

Maker

Hull type

Hull Material

Fiberglass

Category

Boat length (LOA)

8.99 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	0.05
Upwind SA to Displacement	24.28
Downwind SA to Displacement	38.9
Hull Displacement Speed	0.05
Displacement to Length (D/L)	6.79
Ballast to Displacement (B/D)	0.34
Capsize Screening Formula (CSF)	2.3
