1990 Hallberg - Rassy 34

No gallery images

1990 Hallberg - Rassy 34
Preview

Boat Overview

Boat Description

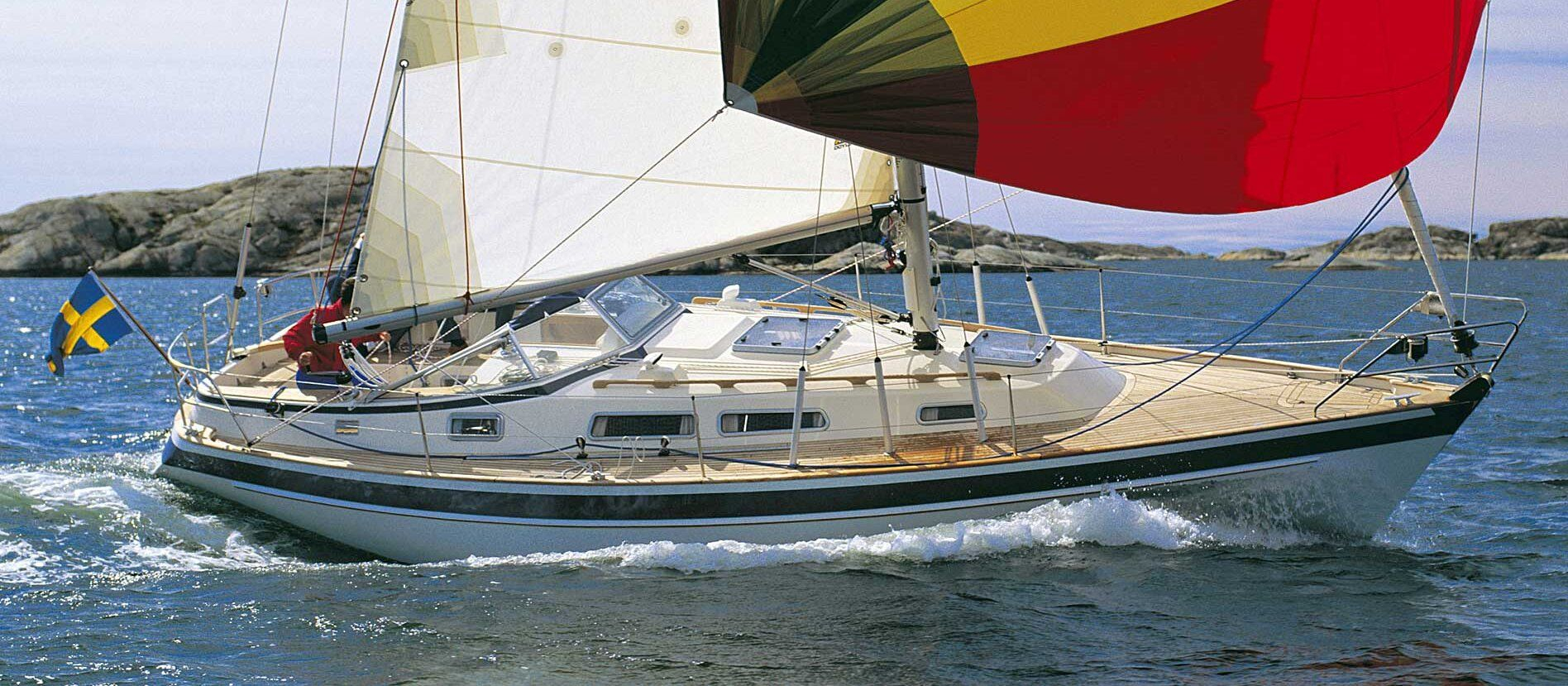

1990 the almost revolutionary Hallberg-Rassy 34 was launched. The concept was a new Frers designed model with greatly improved performance compared to earlier production Hallberg-Rassys and a look that can be described so contradictory as younger, yet classic at the same time.

This should be done without sacrificing all the good old Hallberg-Rassy qualities such as sturdiness, seaworthiness, comfort, safety, and fine wood-work. This concept came reality in every aspect and the 34 came to be a commercial success and a forerunner for a whole new generation Hallberg-Rassys. 484 units were built during the sixteen years the boat was in production 1990 - 2005.

Hallberg-Rassy 34 with her efficient keel and sturdy fractional rig shows sailing characteristics that should not be possible for a fine cruising boat like this. She has won many races, although she at the same time offers great comfort for cruising long distances.

The vast 2.24 m aft cockpit is well protected from the sea by the Hallberg-Rassy typical wind screen. All halyards and reefing lines are controlled from the cockpit.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerHallberg - Rassy
Maker websitehttps://www.hallberg-rassy.com
Model34
First built hull1990
VersionStandard
Price82,553 $
Boat typeSail
CategoryCruiser BoatsMotorsailer BoatsDaysailer Boats
Hull typeMonohull
Hull materialMonohull
Cabins2
Births6
Heads1
General
NameValue
Top speed11.51 kmh
Mast height15.27 m
Length overall10.33 m
Length at waterline8.72 m
Beam overall3.41 m
Headroom1.86 m
Draft maximum1.86 m
Displacement5,299.77 kg
Ballast weight2,100.13 kg
Ballast typeLead
Helm1 tiller
Rudder1 spade rudder
CockpitClosed aft cockpit
Designer
NameValue
Naval architect
Name/StudioFrers Naval Architecture & Engineering
Websitehttp://www.germanfrers.com
Rig & Sails
NameValue
Mast50.11
SparsMast and boom in Aluminum
Standing rigging1x19 strand wire
Number of spreaders2
Spreaders angle0 °
Upwind sail area61.78 sq.m
Downwind sail area115.76 sq.m
Mainsail A310
Headsail A355
Spinnaker A936
Engine
NameValue
Engine A
FuelDiesel
MakerVolvo Penta
Model2003
Power29 HP
TypeInboard
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.05
Upwind SA to Displacement20.67
Downwind SA to Displacement38.73
Hull Displacement Speed 0.05
Displacement to Length (D/L) 7.17
Ballast to Displacement (B/D) 0.4
Capsize Screening Formula (CSF) 1.98
