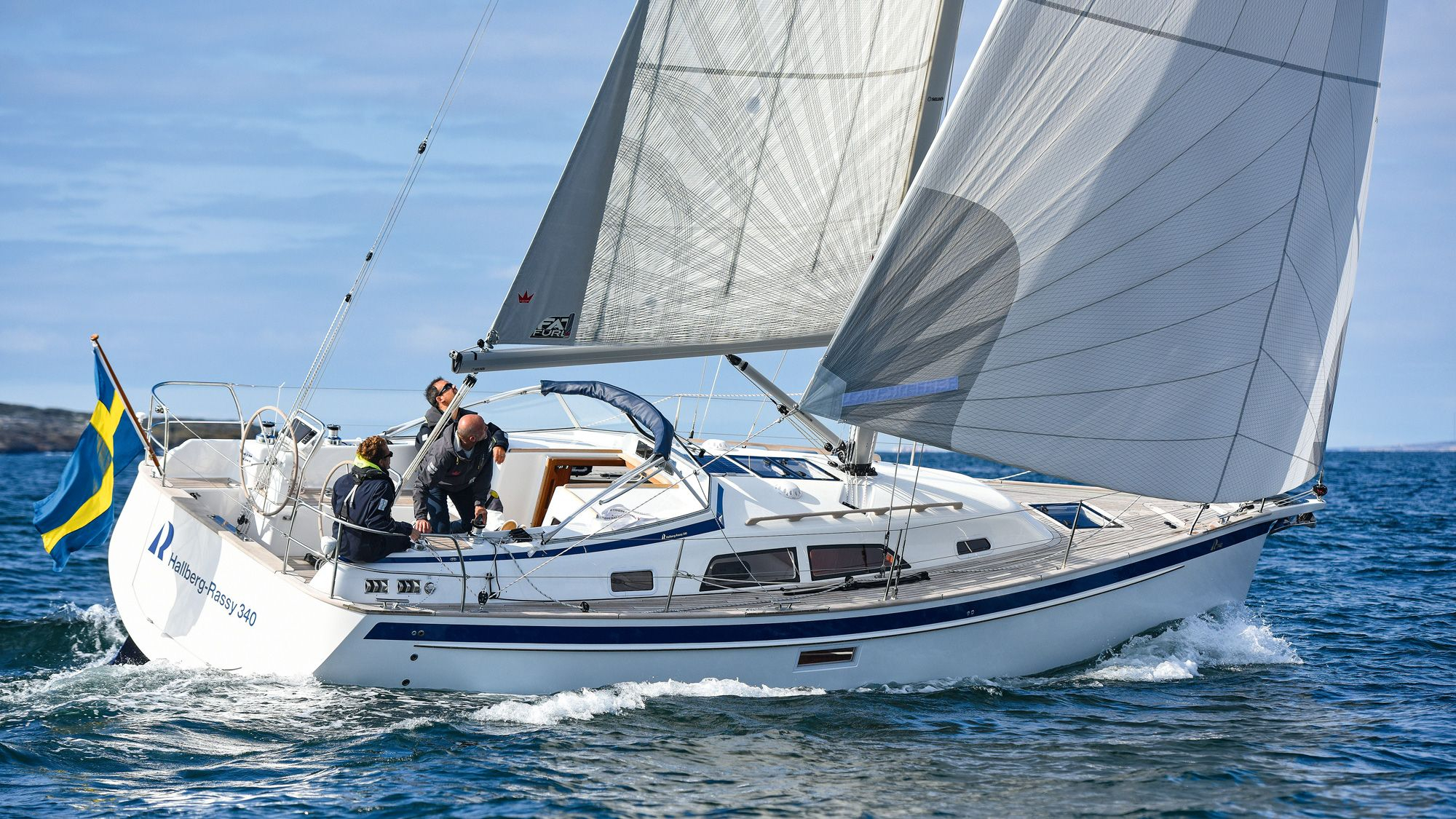

2017 Hallberg - Rassy 340

This brand new model delivers the best Hallberg-Rassy stands for combined with the latest in design from Frers. She provides higher comfort and performance in the concept and has raised the bar to a level no-one previously thought was possible for a boat of this size. The all-new Hallberg-Rassy 340 provides fast, easy and comfortable sailing at a new level.

For the first time at Hallberg-Rassy, optional twin steering wheels are offered. The standard version is with a tiller. In both cases, the deep cockpit gives the helmsman good side protection. The design gives an easy passage through the cockpit. As a Hallberg-Rassy tradition, the cockpit is very well-protected. The cockpit length is a generous 2.83 m, which is no less than 42 cm longer than the predecessor 342. The design allows for easy access from the transom.

The rudder arrangement, like the successful Hallberg-Rassy 44, has twin rudder blades. This provides an easily controlled boat during all sailing conditions, especially in tough weather. Because of the reduced rudder surface, compared to a single rudder solution, the rudder loads will also decrease which will increase the safety factor. Each rudder has dual self-adjusting rudder bearings that provides an easy to steer rudder construction in all conditions.

There will be two winches on each coaming for sail handling. This will allow for electric winches without interfering the height below deck. There is storage space for access lines aft of the jammers. This helps to keep the cockpit tidy for lines. Also the deck layout is clean and uncluttered, with under-deck-roller for the foresail, flush mounted deck hatches and the halyards running in hidden channels back to the cockpit. It is also possible to fit an electric windlass below deck.

For the first time in this size of boat, Hallberg-Rassy offers the possibility to order a large folding bathing platform. When the platform is closed, an elegant closed transom occurs. By default there is a fixed platform aft of the helmsman and a step down to the water.

The sail plan is modern. The head sail furler is an under-deck fitted Furlex TD. Cap shrouds and lowers are divided with separated chainplates. That gives easy passage on deck, good set up for sheeting the head sail and to create a wide steady support for the mast. A backstay tensioner with a powerful purchase 1:32 comes as standard. The head sail has a small overlap which makes it easy to tack. There is also a possibility to get a self-tacking arrangement. The waterline is 10.1 m, no less than 1.01 m longer than the precursor 342. According to Frers speed diagram, a loaded Hallberg-Rassy 340 will log 7.31 knots in a 90 degree true wind angle with only 10 knots true wind.

The ventilated cabinet doors are flush mounted and have invisible hinges with built-in end stoppers so that the door does not hit the other interior. The salon has twin opening skylight hatches, for both ventilation and lots of natural light.

The forward cabin is very spacious and is regarded as the owner's cabin. The length of the double berth is 2.04 m long, 1.98 m in the aft end and a generous 62 cm in the foot end. The forward cabin has two own hanging lockers, two vanities, several lockers and a deck hatch over the berth.

The head has excellent ventilation with openable portlight and deck hatch. The sink and the surface around it are made in solid composite stone. The holding tank can be emptied either to the sea or via a deck suction fitting which comes as standard equipment.

The aft cabin is also spacious with a really generous double berth, 173 cm in the head end and a huge 142 cm in the foot end.

The new Hallberg-Rassy 340 replaces the 342, that is built in 329 units during 13 years. The 340 is larger and offers more volume than the 342. The 340 meets the expectations of today and far beyond.
