Boat Overview
Type
Maker
Hull type
Hull Material
Fiberglass
Category
Boat length (LOA)
14.05 m
Specs
Main
| Maker | Hanse Yachts |
| Maker website | https://www.hanseyachtsag.com |
| Model | 455 |
| First built hull | 2014 |
| Version | Standard |
| Price | 194,000 € |
| Boat type | Sail |
| Category | Motorsailer BoatsDaysailer Boats |
| Hull type | Monohull |
| Hull material | Fiberglass |
| Cabins | 4 |
| Births | 10 |
| Heads | 3 |
General
| Top speed | 13.65 kmh |
| Mast height | 20.63 m |
| Length overall | 14.05 m |
| Length at waterline | 12.19 m |
| Beam overall | 4.39 m |
| Draft maximum | 2.29 m |
| Displacement | 11,700 kg |
| Ballast weight | 3,500 kg |

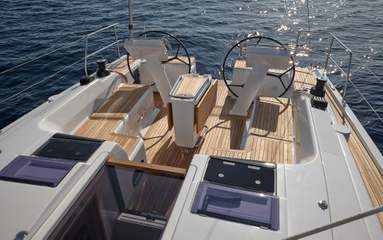

| Helm | Twin helm wheels |
| Rudder | Single spade rudder |
| Cockpit | Closing aft cockpit with opening system |
| CE classification A | 10 |
Designer
| Naval architect | |
| Name/Studio | Judel/Vrolijk Design |
| Website | http://www.judel-vrolijk.com/ |
Rig & Sails
| Mast | 67.7 |
| Spars | Aluminum spars |
| Standing rigging | 1x19 strand wire |
| Number of spreaders | 2 |
| Spreaders angle | 22 ° |
| Upwind sail area | 103.03 sq.m |
| Downwind sail area | 263.01 sq.m |
Engine
| Engine A | |
| Fuel | Diesel |
| Power | 57 HP |
| Type | Inboard |
Storage
| Fuel tank A | 219.55 liter |
| Water tank A | 450.46 liter |
Performance & Ratios
Detail
| Sail Area to Displacement (SA/D) | 0.06 |
| Upwind SA to Displacement | 22.13 |
| Downwind SA to Displacement | 43.46 |
| Hull Displacement Speed | 0.06 |
| Displacement to Length (D/L) | 8.47 |
| Ballast to Displacement (B/D) | 0.3 |
| Capsize Screening Formula (CSF) | 1.95 |
