Boat Overview

Boat Description

Project Orion is the third in our advanced 50-metre FDHF aluminium series with hybrid propulsion. The hybrid installation will deliver a silent cruising capability and flexible power management for maximum energy efficiency. Lightweight aluminium, precision-welded to the highest tolerances with meticulous weight control by our in-house team, combined with an ultra-efficient Fast Displacement Hull Form devised by van Oossanen, allows a compact machinery package to provide optimum propulsion efficiency throughout the speed range. Two MTU 12V 2000 M61 (IMO III) of just 600kW each will deliver a top speed of 16.3 knots, while at 12 knots Orion will consume just 98 litres per hour, excluding hotel load. At ten knots in hybrid mode, fuel consumption falls to just 45 litres per hour. These are truly outstanding figures for a luxurious 50-metre yacht displacing 295 tons.

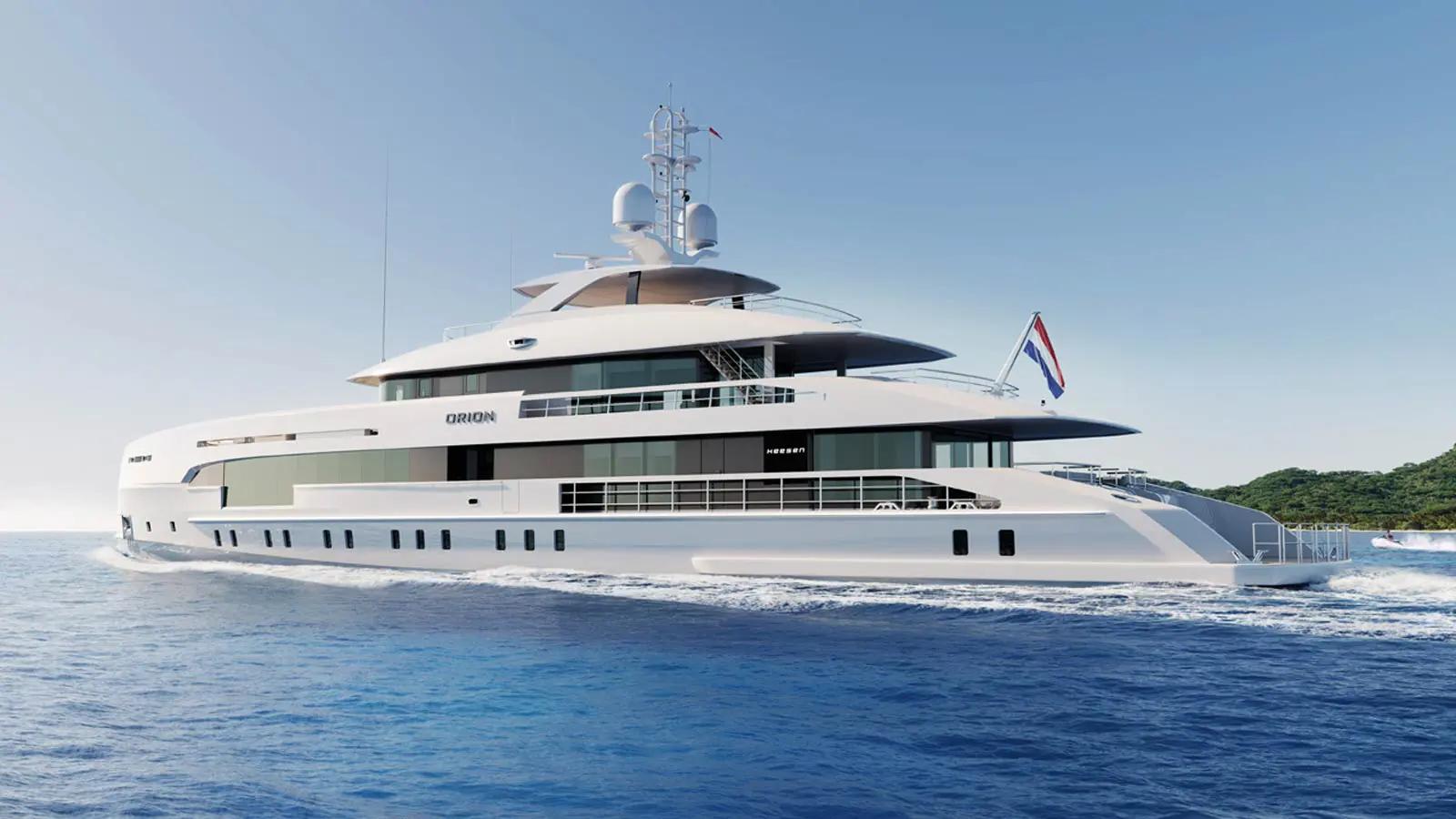

Frank Laupman of Omega Architects penned the perfect image for this ultra-technological yacht. This series boasts a striking profile with a near-vertical bow and large floor-to-ceiling windows. The vertical bow with spray rails is not only on-trend, it also serves a practical purpose by providing progressive buoyancy when carving through waves.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerHeesen Yachts
Maker websitehttps://www.heesenyachts.com
ModelProject Orion
First built hull2025
Price45,900,000 €
Boat typePower
CategoryCruiser BoatsMotor Yacht Boats
Hull typeMonohull
Hull materialMonohull
Cabins6
General
NameValue
Top speed25.75 kmh
Cruising speed19.31 kmh
Length overall49.8 m
Beam overall8.87 m
Draft maximum2.16 m
Displacement452,684.82 kg
Designer
NameValue
Exterior designer
Name/StudioOmega Architects
Websitehttps://omega-architects.com/en
Interior designer
Name/StudioCristiano Gatto Design
Websitehttps://www.cristianogattodesign.com
Rig & Sails
NameValue
Simple Empty
No data
Engine
NameValue
Engine A
MakerMTU
Model12V 2000 M61
Power804 HP
Engine B
MakerMTU
Model12V 2000 M61
Power804 HP
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Capsize Screening Formula (CSF) 1.17
