Frers Naval Architecture & Engineering

hylas 70 1

hylas 70 3

hylas 70 2

Composite_Material

<p>Monohull boats are vessels with just one hull, as the name itself suggests. They can be monohull <a href="https://theboatdb.com/boats/type/sail">sailboats</a> or <a href="https://theboatdb.com/boats/type/power">powerboats</a>, which means they can be powered by an engine or by the wind. In addition, monohull boats can have a high level of luxury on board and can therefore be referred to as monohull yachts. At TheBoatDB you can look into monohull boats and explore their features. In addition, you can filter your search through monohull sailboat manufacturers and explore all models available on our site. Compare all models on our website from the comfort of your home.</p>

Monohull

hylas-70-1_1579179244

Hylas Yachts

Euro

<p>The category of sailboats includes both <a href="https://theboatdb.com/boats/category/daysailer">sailing yachts</a> which are luxurious and charming vessels used for recreational purposes, as well as <a href="https://theboatdb.com/boats/category/cruiserracer">racing sailboats</a> that are used for sports. Some have a single hull while others can have two or three. Compare different types of sailboats through sailing boat specs on TheBoatDB and find out the best one for you. Choose according to boat specs, and explore sailboats that vary from very large vessels, appropriate for ocean cruising, to small ones used to roam the shores.</p>

Name	Value
Maker	Hylas Yachts
Maker website	https://www.hylasyachts.com
Model	Hylas 70 Shoal draft
First built hull	2007
Version	Shoal draft
Boat type	Sail
Category	Cruiser Boats Center Cockpit Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	16.93 kmh
Length overall	20.76 m
Length at waterline	18.81 m
Beam overall	5.49 m
Draft maximum	1.86 m
Displacement	34,100.14 kg
Ballast weight	13,299.77 kg
Helm	2 wheels
Rudder	1 semi-spade rudder
Cockpit	Central cockpit

Name	Value
Naval architect
Name/Studio	Frers Naval Architecture & Engineering
Website	http://www.germanfrers.com

Name	Value
Spars	Mast and boom in Aluminum
Standing rigging	Single-strand (ROD) discontinuous
Number of spreaders	3
Spreaders angle	0 °
Upwind sail area	225.01 sq.m

Name	Value
Engine A
Power	260 HP
Type	Inboard engine ; Diesel
Engine B

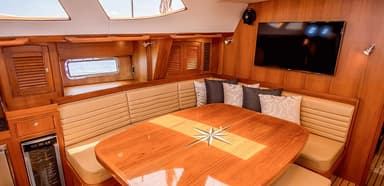

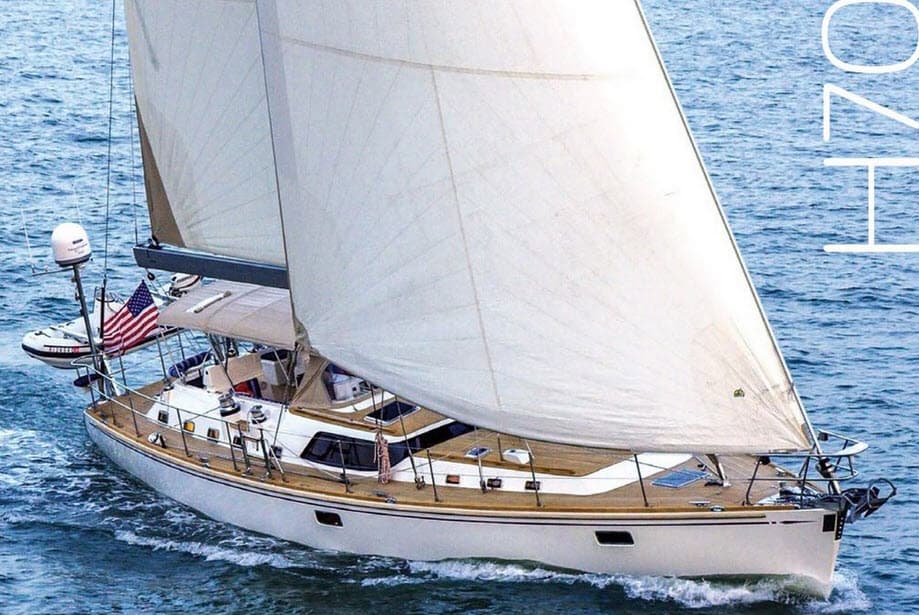

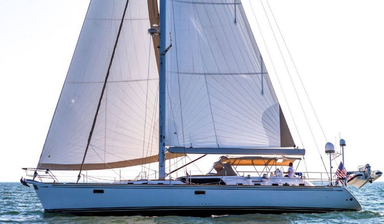

2007 Hylas Yachts Hylas 70 Shoal draft

Boat Overview

Type

Maker

Hull type

Hull Material

Composite_Material

Category

Boat length (LOA)

20.76 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Upwind SA to Displacement	21.77
Hull Displacement Speed	10.53
Displacement to Length (D/L)	142.89
Ballast to Displacement (B/D)	39
Capsize Screening Formula (CSF)	1.71
