Boat Overview

Boat Description

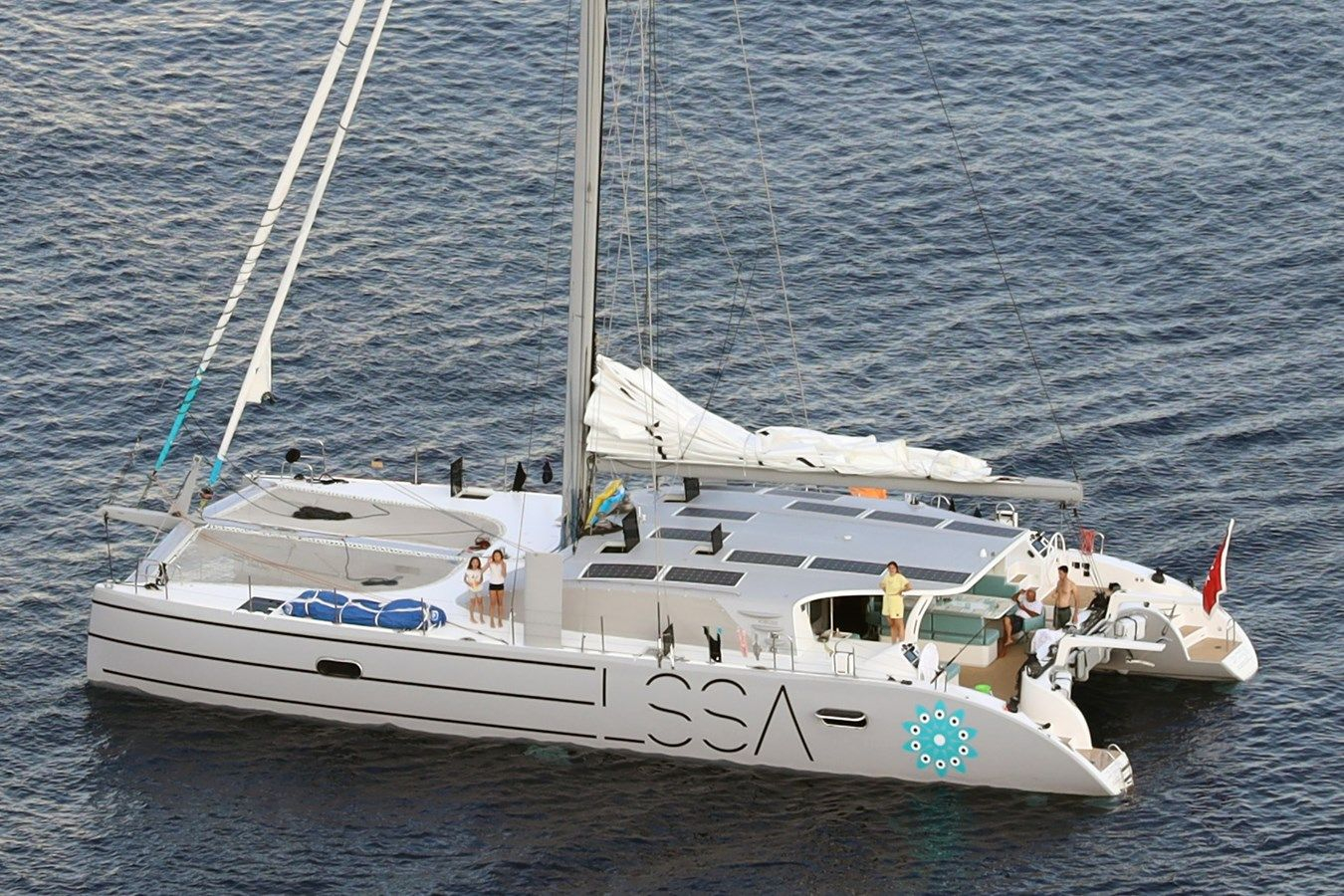

ICE CAT 67: A Marvel in Modern Catamaran Design

The ICE CAT 67, produced by the prestigious ICE Yachts, represents the pinnacle of catamaran evolution. This model, a true masterpiece, results from the collaborative genius of designers Enrico Contreas and Luigi Cirillo. Their innovative vision has manifested in a catamaran that is both a sight to behold and a powerhouse of marine engineering.

Precision Engineered for Excellence

Boasting an impressive length overall (LOA) of 20.450 meters and a variable beam (B max) of 9.080 meters to 9.800 meters in the XL version, the ICE CAT 67 is designed to dominate the waters with grace and efficiency. It features a draft that adjusts from 1.00 meter to 2.50 meters, accommodating shallow marinas while still excelling in deep waters.

Constructed using an epoxy infusion process with full carbon for unmatched durability and lightweight performance, the ICE CAT 67 is in a class of its own. This construction technique ensures a displacement of 21,500 kg, optimized for superior speed and stability.

Advanced Nautical Innovation

With a mast height soaring over the sea at 25.00 meters and equipped with twin engines of 110 CV each, this catamaran assures reliable power. It has a substantial water and fuel capacity, each at 1005 liters, supporting extended voyages. The sail plan is meticulously designed with a 130 sq. meter mainsail, a 68 sq. meter solent, and a 150 sq. meter gennaker, promising exhilarating sailing even in demanding conditions.

Classified in Project CE Category A for offshore capabilities, the ICE CAT 67 is unsinkable, backed by a 5-year structural warranty, reassuring owners of its supreme quality and durability.

  • ice-yachts-cat-67-2018_Brochure.pdf
    • Brochure
    5.28MB Download

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerIce Yachts
Maker websitehttps://www.iceyachts.it
ModelCAT 67
First built hull2018
Boat typeSail
CategoryCruiser/Racer BoatsCatamaran Boats
Hull typeCatamaran Boats
Hull materialCatamaran Boats
General
NameValue
Length overall20.48 m
Length at waterline20.3 m
Beam overall9.81 m
Draft maximum2.53 m
Displacement21,499.81 kg
Helm2 wheels
Rudder1 spade rudder
Designer
NameValue
Naval architect
Name/StudioEnrico Contreas
Rig & Sails
NameValue
SparsMast and boom in Carbon fiber
Mainsail A130
Spinnaker A150
Engine
NameValue
Engine A
FuelDiesel
Power110 HP
TypeInboard
Engine B
FuelDiesel
Power110 HP
TypeInboard
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Upwind SA to Displacement26.08
Displacement to Length (D/L) 10.94
Capsize Screening Formula (CSF) 3.56
