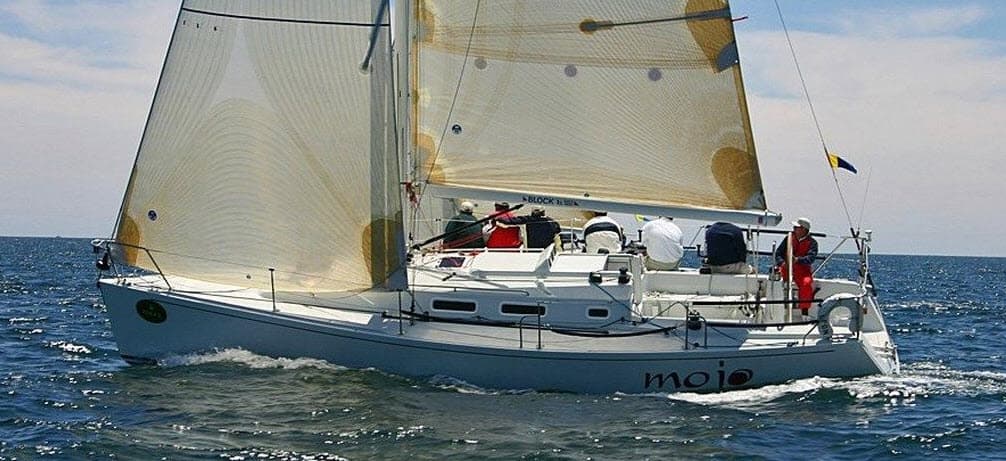

2001 J Boats J/109 Shoal draft

1491

Report error

2001 J Boats J/109 Shoal draft
2001 J Boats J/109 Shoal draft
2001 J Boats J/109 Shoal draft
2001 J Boats J/109 Shoal draft
2001 J Boats J/109 Shoal draft
Preview
2001 J Boats J/109 Shoal draft
Preview
2001 J Boats J/109 Shoal draft
Preview
2001 J Boats J/109 Shoal draft
Preview

Boat Overview

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerJ Boats
Maker websitehttps://www.jboats.com
ModelJ/109 Shoal draft
First built hull2001
VersionShoal draft
Boat typeSail
CategoryCruiser/Racer Boats
Hull typeMonohull
Hull materialMonohull
General
NameValue
Top speed11.91 kmh
Length overall10.79 m
Length at waterline9.33 m
Beam overall3.54 m
Headroom1.89 m
Draft maximum1.74 m
Displacement4,950.05 kg
Ballast weight1,759.94 kg
Ballast typeLead
Helm1 wheel
Rudder1 spade rudder
CockpitOpen aft cockpit
Designer
NameValue
Naval architect
Name/StudioRod Johnstone
Websitehttp://www.jboats.com/
Rig & Sails
NameValue
SparsMast and boom in Aluminum
Standing riggingSingle-strand (ROD)
Number of spreaders2
Spreaders angleSwept-back
Upwind sail area61.04 sq.m
Downwind sail area137.96 sq.m
Mainsail A301.00
Spinnaker A1184.00
Engine
NameValue
Engine A
Power28 HP
TypeInboard engine ; Diesel
Engine B
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.06
Upwind SA to Displacement21.37
Downwind SA to Displacement48.31
Hull Displacement Speed 0.06
Displacement to Length (D/L) 7.41
Ballast to Displacement (B/D) 0.36
Capsize Screening Formula (CSF) 2.09
