Boat Overview
Type
Maker
Hull type
Hull Material
Fiberglass
Category
Boat length (LOA)
6.89 m
Specs
Main
| Name | Value |
|---|---|
| Maker | J Boats |
| Maker website | https://www.jboats.com |

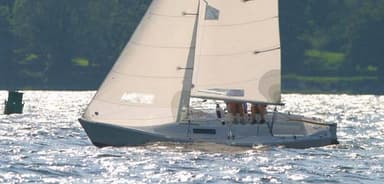

| Model | J/22 |
| First built hull | 1983 |
| Boat type | Sail |
| Category | Sports Cruiser Boats |
| Hull type | Monohull |
| Hull material | Fiberglass |
General
| Name | Value |
|---|---|
| Top speed | 9.4 kmh |
| Length overall | 6.89 m |
| Length at waterline | 5.79 m |
| Beam overall | 2.44 m |
| Draft maximum | 0.94 m |
| Displacement | 800.14 kg |
| Ballast weight | 299.82 kg |
| Ballast type | Lead |
| Helm | 1 tiller |
| Rudder | 1 transom hung rudder |
| Cockpit | Closed aft cockpit |
| Trailerable |
Designer
| Name | Value |
|---|---|
| Naval architect | |
| Name/Studio | Rod Johnstone |
| Website | http://www.jboats.com/ |
Rig & Sails
| Name | Value |
|---|---|
| Spars | Mast and boom in Aluminum |
| Standing rigging | 1x19 strand wire continuous |
| Number of spreaders | 1 |
| Spreaders angle | Swept-back |
| Upwind sail area | 20.72 sq.m |
Engine
| Name | Value |
|---|---|
| Engine A | |
| Type | Outboard Engine |
| Engine B |
Storage
| Name | Value |
|---|---|
No data | |
Performance & Ratios
Detail
| Name | Value |
|---|---|
| Upwind SA to Displacement | 24.44 |
| Displacement to Length (D/L) | 5.84 |
| Ballast to Displacement (B/D) | 0.37 |
| Capsize Screening Formula (CSF) | 2.65 |
