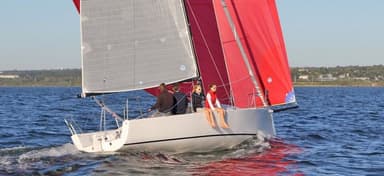

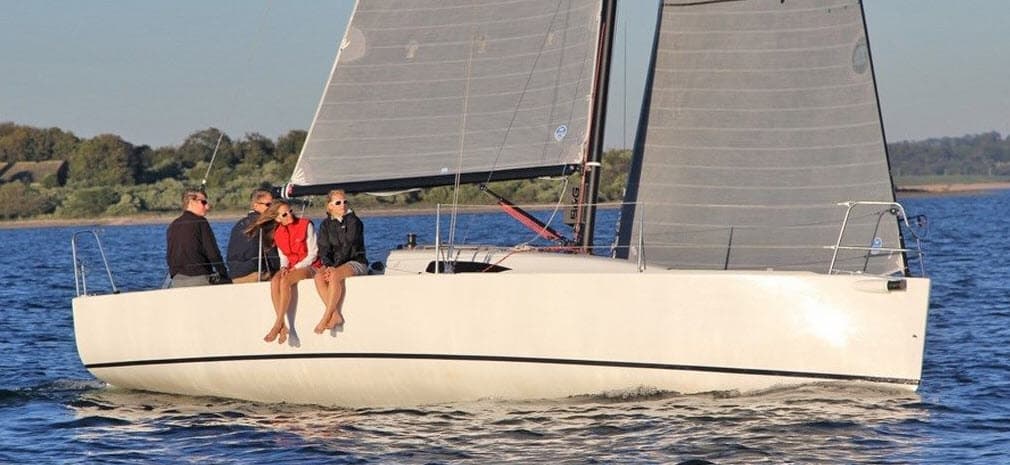

2013 J Boats J/88
2013 J Boats J/88
2013 J Boats J/88
2013 J Boats J/88
2013 J Boats J/88
2013 J Boats J/88

Boat Overview

Overview

Specs
Main
General
Designer
Rig & Sails
Engine
Storage
Performance & Ratios
Detail

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
MakerJ Boats
Maker websitehttps://www.jboats.com
ModelJ/88
First built hull2013
Price88,000 €
Boat typeSail
CategoryCruiser/Racer Boats
Hull typeMonohull
Hull materialFiberglass
General
Top speed11.17 kmh
Length overall8.9 m
Length at waterline7.96 m
Beam overall2.93 m
Draft maximum2.01 m
Displacement2,250 kg
Ballast weight850 kg
Helm1 tiller
Rudder1 rudder on ama with T-foil
CockpitOpen aft cockpit
Trailerable
Designer
Naval architect
Name/StudioAlan Johnstone
Websitehttp://www.jboats.com/
Rig & Sails
SparsMast in Carbon fiber and boom in Aluminum
Standing riggingDyform
Number of spreaders2
Spreaders angleSwept-back
Upwind sail area47.47 sq.m
Downwind sail area122.54 sq.m
Engine
Engine A
Power14 HP
TypeInboard
Storage
Fuel tank A29.9 liter

Performance & Ratios

Detail
Sail Area to Displacement (SA/D) 28.11
Upwind SA to Displacement28.11
Downwind SA to Displacement72.56
Hull Displacement Speed 6.85
Displacement to Length (D/L) 124.54
Ballast to Displacement (B/D) 0.38
Capsize Screening Formula (CSF) 2.25
