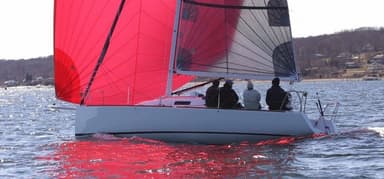

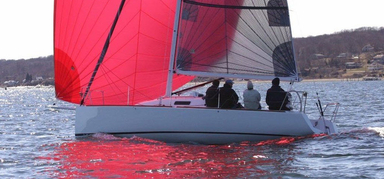

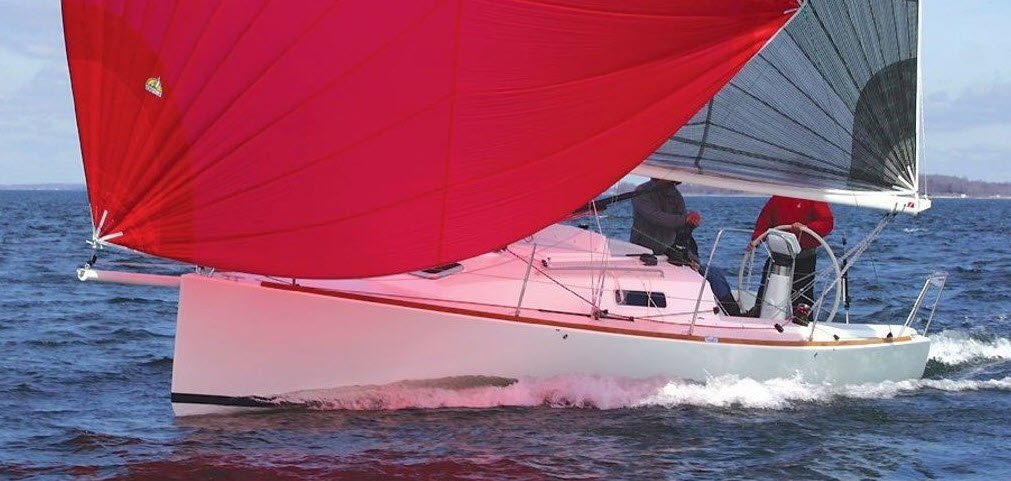

2009 J Boats J/95

1651

Report error

2009 J Boats J/95
2009 J Boats J/95
2009 J Boats J/95
2009 J Boats J/95
Preview
2009 J Boats J/95
Preview
2009 J Boats J/95
Preview

Boat Overview

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerJ Boats
Maker websitehttps://www.jboats.com
ModelJ/95
First built hull2009
Boat typeSail
CategoryCruiser/Racer Boats
Hull typeMonohull
Hull materialMonohull
General
NameValue
Top speed11.49 kmh
Length overall9.51 m
Length at waterline8.69 m
Beam overall3.05 m
Draft maximum1.71 m
Displacement2,722.01 kg
Ballast weight1,110.85 kg
Ballast typeLead
Helm1 wheel
Rudder2 spade rudders
CockpitOpen aft cockpit
Designer
NameValue
Naval architect
Name/StudioAlan Johnstone
Websitehttp://www.jboats.com/
Rig & Sails
NameValue
SparsMast and boom in Aluminum
Standing riggingSingle-strand (ROD)
Number of spreaders2
Spreaders angleSwept-back
Upwind sail area41.81 sq.m
Engine
NameValue
Engine A
Power14 HP
TypeInboard engine ; Diesel
Engine B
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Upwind SA to Displacement21.81
Displacement to Length (D/L) 7.15
Ballast to Displacement (B/D) 0.41
Capsize Screening Formula (CSF) 2.2
