Boat Overview

Boat Description

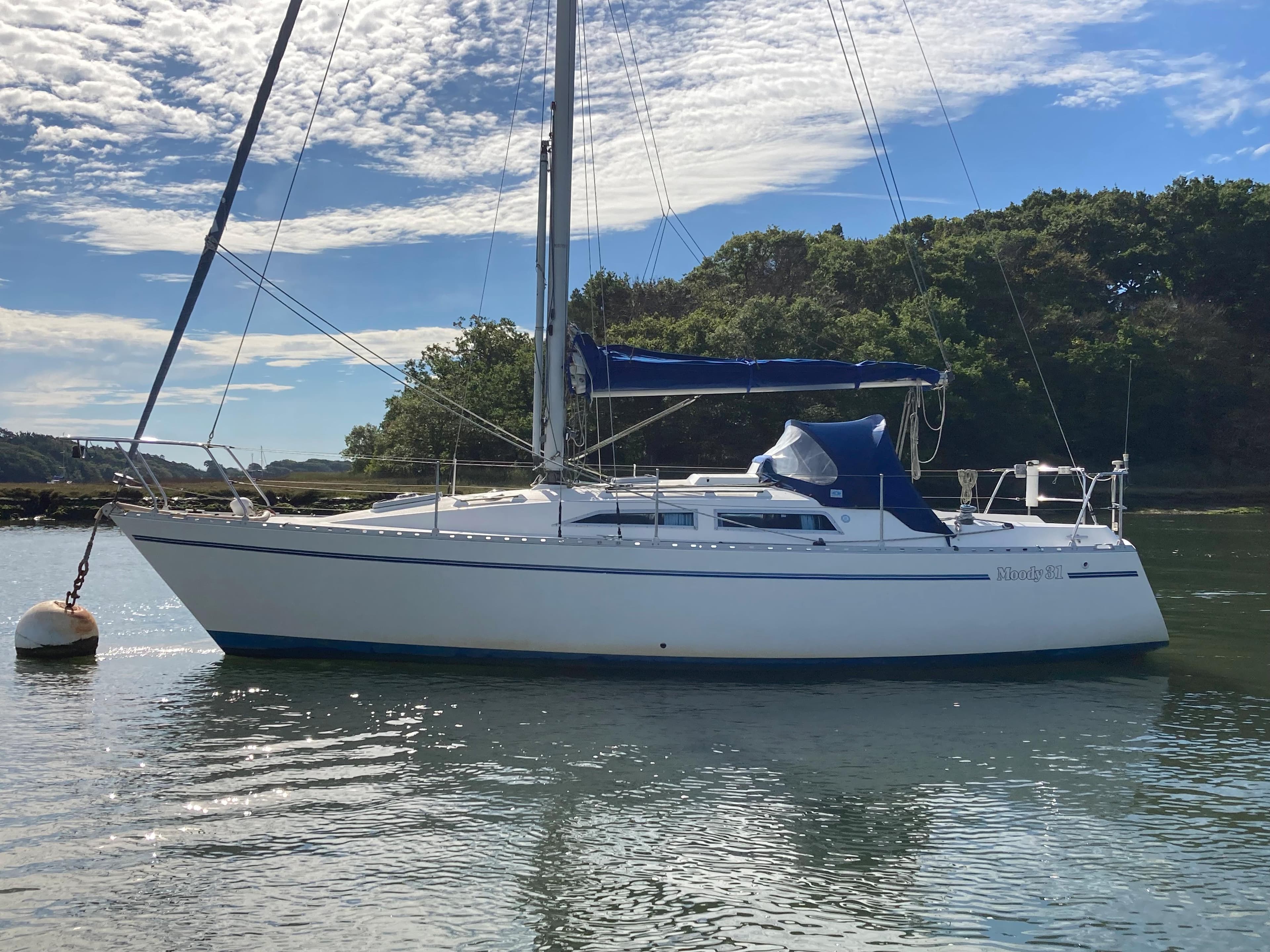

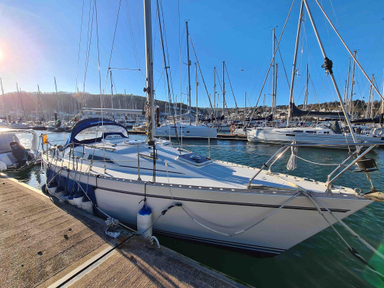

Designed by Bill Dixon, the Mk Moody 31 was built from late 1983 to the end of 1985, at which time it was superseded by the Mk II, which was very similar, the main difference, apart from some minor alterations to the interior, being the addition of a sugar scoop stern.

Production continued until 1991, by which time over 300 had been built in total. As standard the boats were tiller-steered, but many, as in the case of some of the yachts illustrated here, had wheel steering as an option.

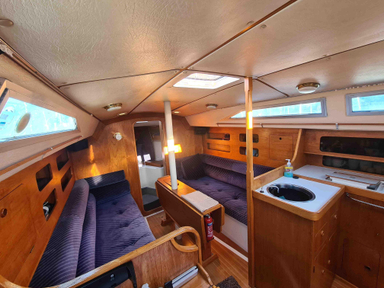

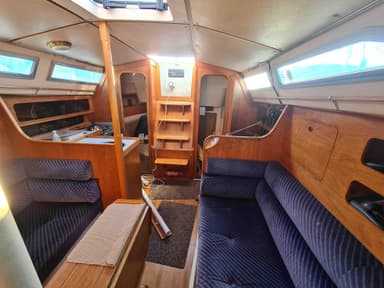

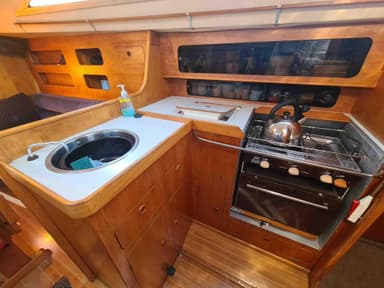

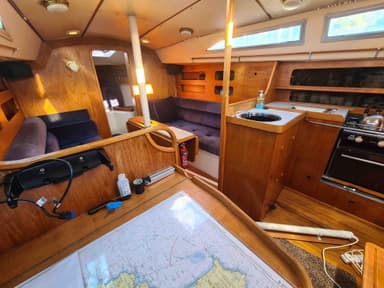

Unlike the earlier generation Moodys, which used a lot of exposed GRP and laminate, the Moody 31s have a fairly traditional and 'woody' interior.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Gold for Free

Specs

Main
NameValue
MakerMoody
Maker websitehttps://www.moody-yachts.co.uk
Model31 Mk
First built hull1983
VersionFin/Twin keel
Price23,500 £
Boat typeSail
CategoryDaysailer Boats
Hull typeMonohull
Hull materialMonohull
Cabins2
Births4
Heads1
General
NameValue
Top speed10.88 kmh
Mast height9.39 m
Length overall9.37 m
Length at waterline7.75 m
Beam overall3.2 m
Draft maximum1.52 m
Displacement4,520.5 kg
Ballast weight1,666.95 kg
HelmTiller
Designer
NameValue
Naval architect
Name/StudioDixon Yacht Design & Angus Primrose
Rig & Sails
NameValue
Mast30.8
SparsAluminum
Standing rigging1x19 strand wire continuous
Number of spreaders1
Spreaders angle0 °
Upwind sail area51.84 sq.m
Mainsail A193
Headsail A365
Headsail B215
Headsail C75
Engine
NameValue
Engine A
FuelDiesel
Power28 HP
TypeInboard
Storage
NameValue
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 7.27
Upwind SA to Displacement21.03
Hull Displacement Speed 4.36
Displacement to Length (D/L) 3,280.51
Ballast to Displacement (B/D) 41.99
