Boat Overview

Boat Description

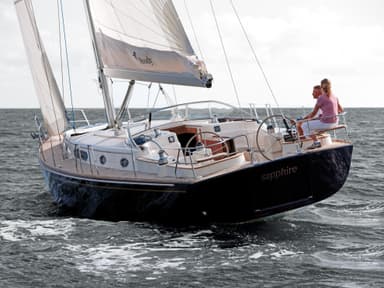

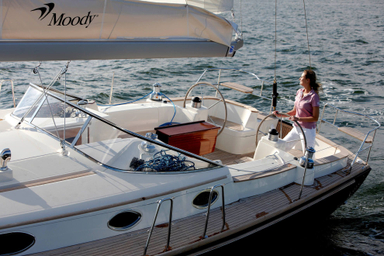

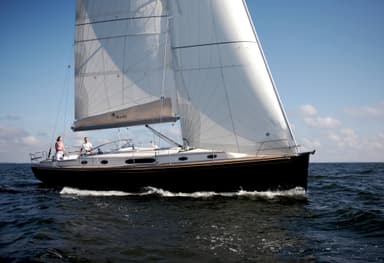

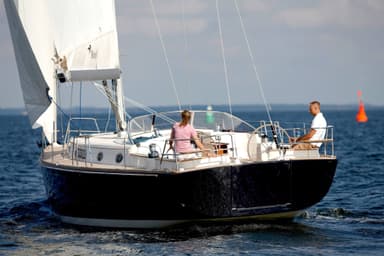

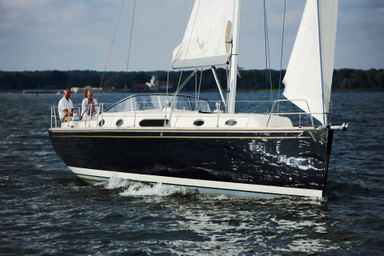

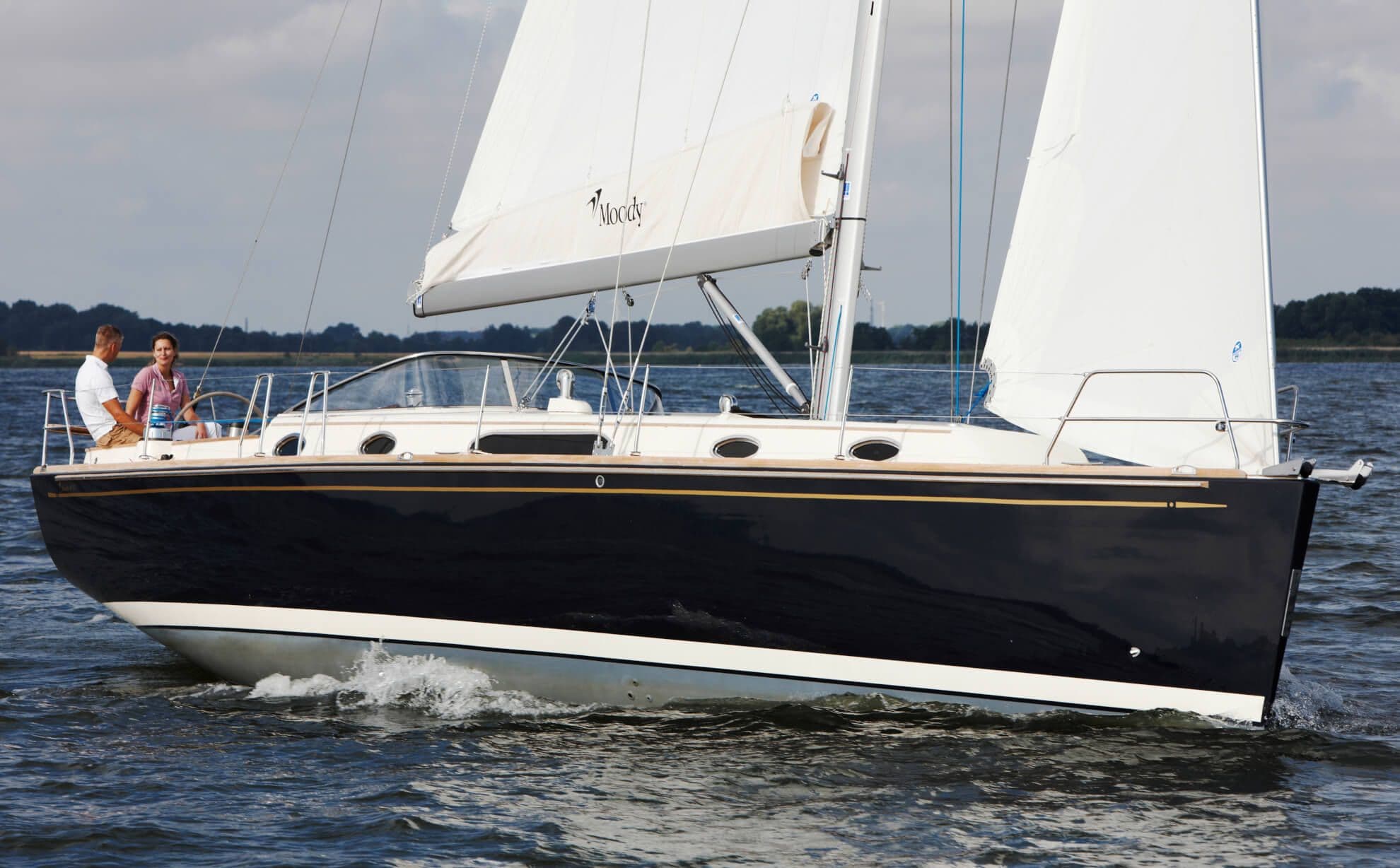

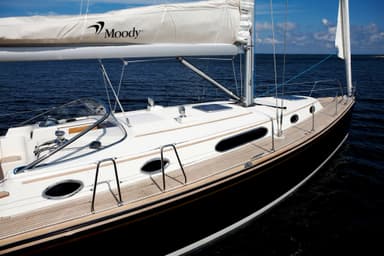

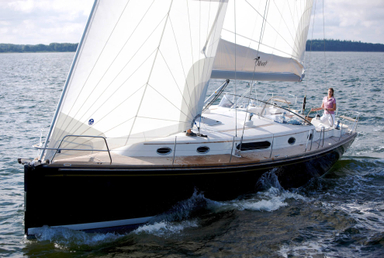

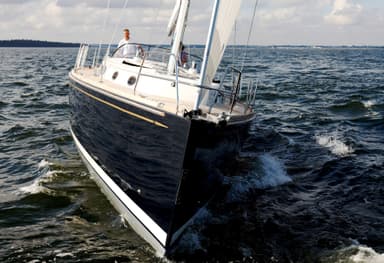

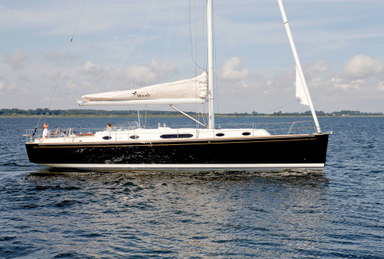

The Moody 45 Aft is a 13.72m cruising sail boat designed by Dixon Yacht Design. She was built between 2010 and 2019 by Moody. The Deep draft version offers a deeper L-shaped keel bringing extra performance especially upwind. The Shoal draft version features a shorter keel to grant access to shallow areas.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Gold for Free

Specs

Main
NameValue
MakerMoody
Maker websitehttps://www.moody-yachts.co.uk
ModelAft 45
First built hull2010
Last built hull2019
VersionShoal/Deep draft
Price13,032 $
Boat typeSail
CategoryDaysailer BoatsMotorsailer Boats
Hull typeMonohull
Hull materialMonohull
Cabins2
Births4
Heads2
General
NameValue
Top speed13.65 kmh
Length overall14.02 m
Length at waterline12.19 m
Beam overall3.99 m
Draft maximum1.86 m
Displacement12,199.81 kg
Ballast weight3,349.78 kg
Ballast typeCast iron
HelmTwin helm wheels
RudderSingle spade rudder
CockpitClosing aft cockpit with opening system
Designer
NameValue
Naval architect
Name/StudioBill Dixon
Websitehttp://www.dixonyachtdesign.com/
Rig & Sails
NameValue
SparsAluminum spars
Number of spreaders2
Spreaders angleSwept-back
Upwind sail area112.04 sq.m
Downwind sail area179.02 sq.m
Mainsail A560
Headsail A646
Headsail B409
Spinnaker A1367
Engine
NameValue
Engine A
FuelDiesel
Power53 HP
TypeInboard
Storage
NameValue
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 9.99
Upwind SA to Displacement21.5
Downwind SA to Displacement34.36
Hull Displacement Speed 8.47
Displacement to Length (D/L) 187.61
Ballast to Displacement (B/D) 27.46
Capsize Screening Formula (CSF) 1.75
