Boat Overview

Boat Description

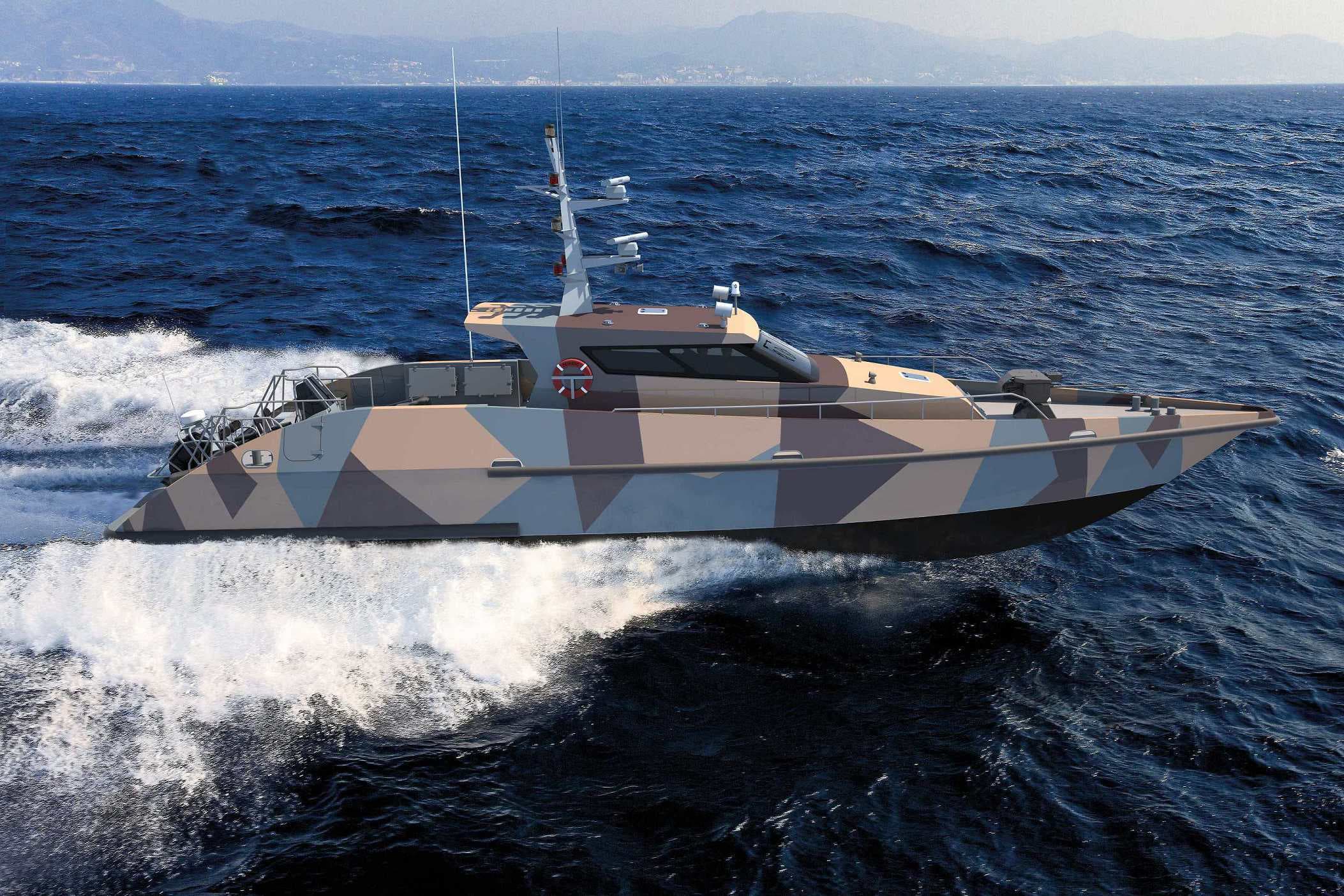

The 22m DEFENDER patrol vessel features a high-speed, planing aluminium mono-hull craft. With speeds up to 40 knots and a range of 400nm, this vessel can be deployed to perform marine search-and-rescue, maritime safety, surveillance, law enforcement and interdiction missions. Seating is provided for four crew and up to 20 transfer personnel. With an endurance of up to 10 days, the 22m DEFENDER is well suited to coastal and inshore patrol duty.

A 4.8m FIC daughter craft is launched by stern ramp to extend mission capability. Various weapons systems, early warning systems, communication and navigation systems can be added to the vessel to perform specialised patrol and security tasks.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerNautic Africa
Maker websitehttps://www.nauticafrica.com
Model22M Defender
First built hull2020
Boat typePower
CategoryPatrol Boat
Hull typeMonohull
Hull materialMonohull
General
NameValue
Top speed80.47 kmh
Cruising speed51.5 kmh
Length overall21.98 m
Beam overall5.18 m
Draft maximum1.19 m
Displacement46,999.84 kg
Designer
NameValue
Simple Empty
No data
Rig & Sails
NameValue
Simple Empty
No data
Engine
NameValue
Engine A
MakerMTU
Model16V2000 M93
Power2,400 HP
Engine B
MakerMTU
Model16V2000 M93
Power2,400 HP
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Capsize Screening Formula (CSF) 1.45
