Boat Overview

Boat Description

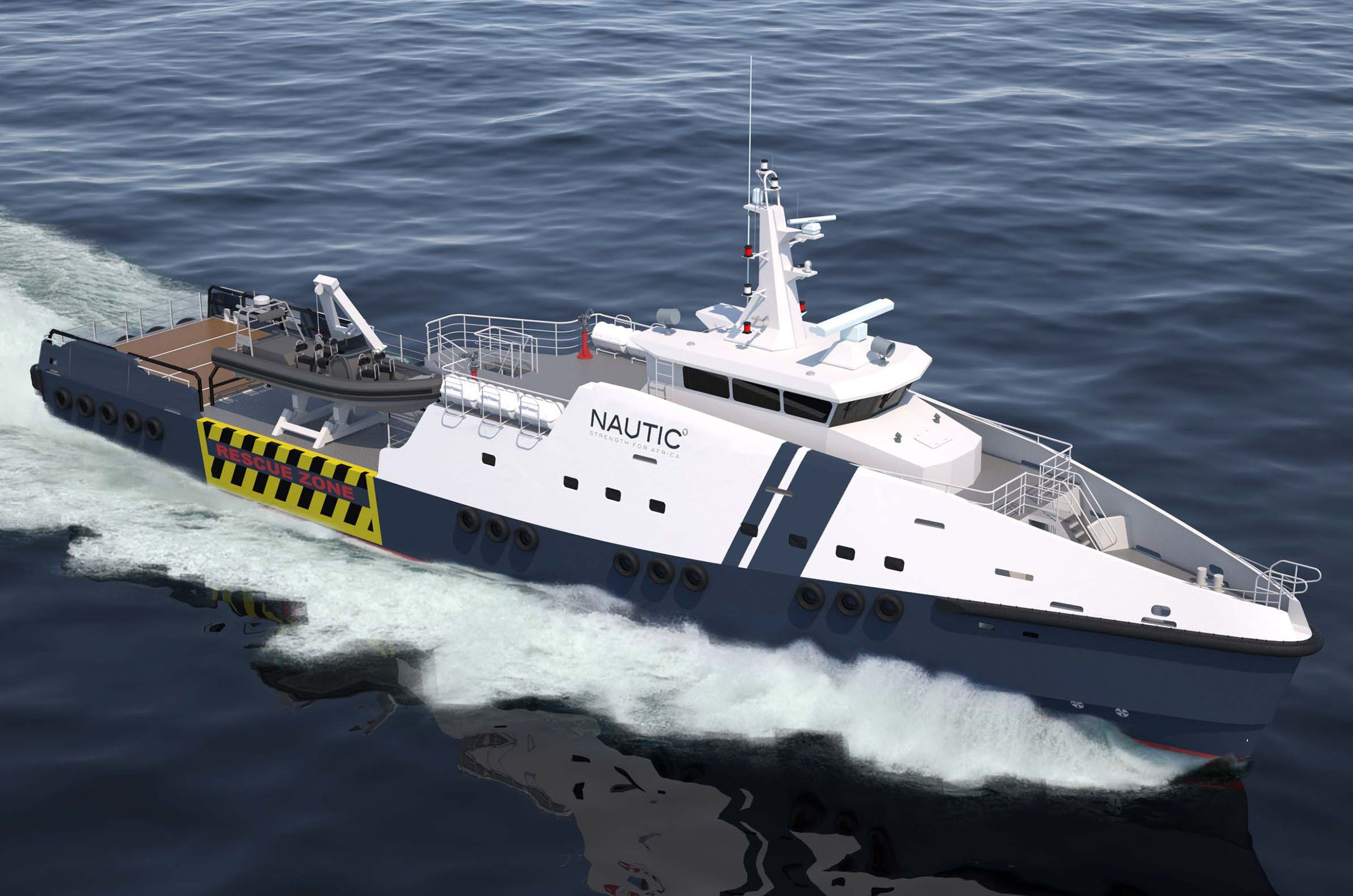

The 40m FRONTIER Fast Supply Intervention Vessel is a craft focused on both commercial Oil & Gas support and Security & Defence roles. The layout is optimised for endurance in coastal operations and proven to show exceptional seakeeping abilities, particularly for extended security patrols.

Sleeping quarters for up to 22 crew, passenger seating for 40 transfer personnel, VIP cabin, ship’s galley, office and ample storage all make for comfortable live-onboard accommodation. Additional features include ballistic protected superstructure, external FiFi system, thermal imaging camera, cargo deck space with crane, davit launched daughter craft, to name a few.

Three inboard diesel engines and fixed pitch propellers provide speeds of up to 27 knots and range of 2400 nm at 24 knots. Endurance of up to 40 days.

Specs

Main
NameValue
MakerNautic Africa
Maker websitehttps://www.nauticafrica.com
Model40M Frontier
First built hull2020
Boat typePower
CategoryPatrol Boat
Hull typeMonohull
Hull materialAluminium
General
NameValue
Top speed43.45 kmh
Cruising speed27.36 kmh
Length overall39.99 m
Beam overall7.77 m
Draft maximum1.89 m
Displacement312,999.8 kg
Designer
NameValue
Simple Empty
No data
Rig & Sails
NameValue
Simple Empty
No data
Engine
NameValue
Engine A
MakerCAT
ModelC32 ACERT D-Rating
Power1,599 HP
Engine B
MakerCAT
ModelC32 ACERT C-Rating
Power1,599 HP
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Capsize Screening Formula (CSF) 1.16
