2020 Nautic Africa 47M Frontier

No gallery images

2020 Nautic Africa 47M Frontier
Preview

Boat Overview

Boat Description

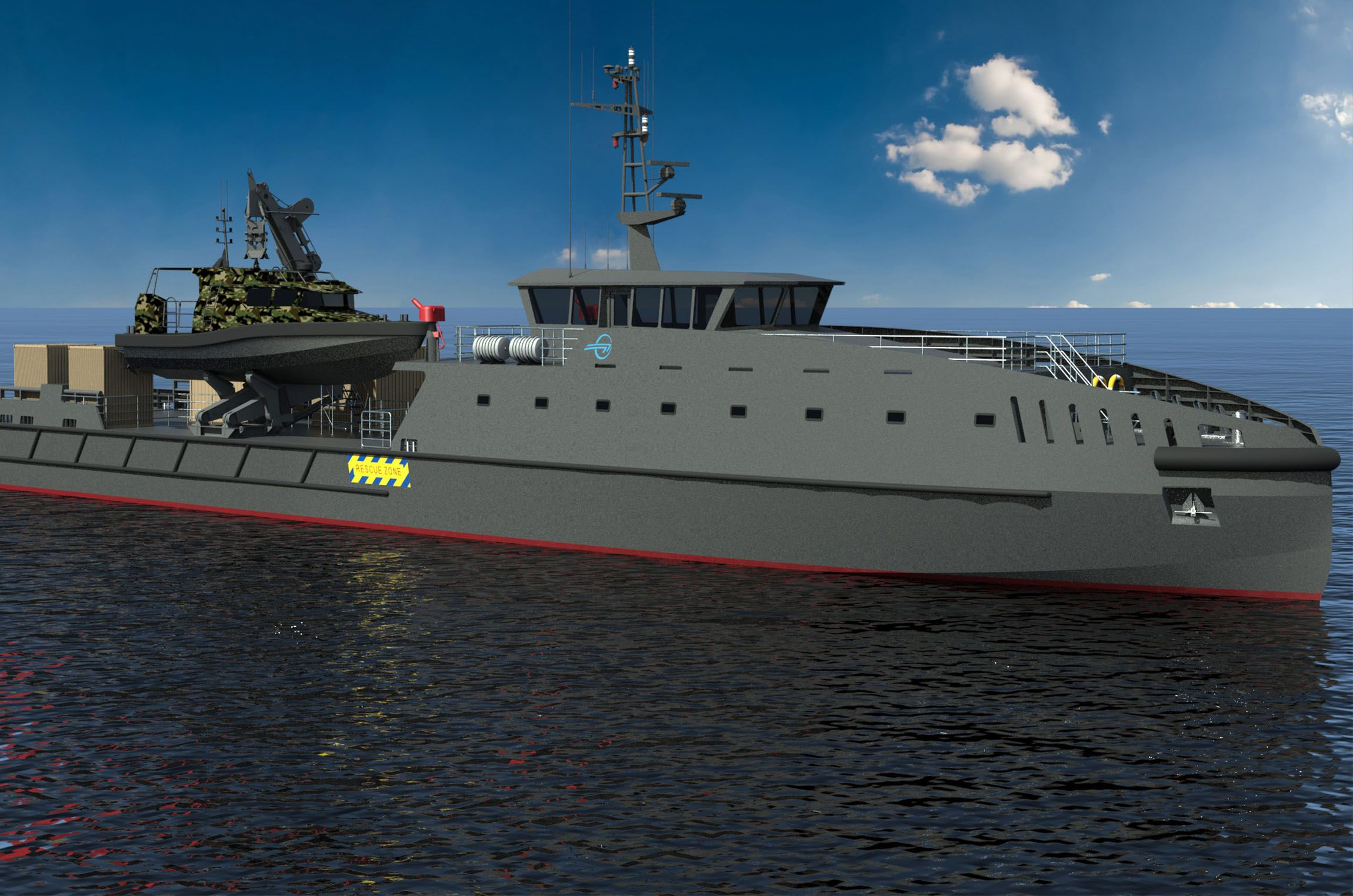

The 47m FRONTIER Patrol Workboat is a modern high-speed semi-displacement vessel with aluminium hull. The design is optimized for endurance in coastal operations, with exceptional seakeeping abilities. It serves a multi-role function in Oil and Gas fields, namely: Coastal Patrol; Oil Spill Recovery; Fire Fighting; Search & Rescue.

Dynamic Positioning System (DP Class 1) provides safe operation around other surface craft. FiFi Class 1 (2400 m3/h) external firefighting monitors are remote from the wheelhouse. A davit-launched 12m Fast Rescue Daughter Craft (FRDC) is located on the main deck. The Cargo deck is arranged for operation of a complete floating boom type Oil Spill Recovery system, including 72 m3 waste oil tank capacity integrated in the hull, and a general-purpose deck crane and a stern winch. The wheelhouse and deckhouse have ballistic protection cladding. The vessel is equipped for man-overboard rescue and temporary refuge seating for 120 persons, including First Aid room, Decontamination room, Medical Beds area. Below deck, crew accommodation offers comfortable living quarters for twelve crew in six double cabins. Ample mess, galley, dry and cold storage, and sanitary spaces allow for autonomous operation for up to 30 days.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Gold for Free

Specs

Main
NameValue
MakerNautic Africa
Maker websitehttps://www.nauticafrica.com
Model47M Frontier
First built hull2020
Boat typePower
CategoryPatrol Boat
Hull typeMonohull
Hull materialMonohull
General
NameValue
Top speed35.41 kmh
Cruising speed25.75 kmh
Length overall46.94 m
Beam overall8.47 m
Draft maximum1.92 m
Displacement374,999.47 kg
Designer
NameValue
No data
Rig & Sails
NameValue
No data
Engine
NameValue
Engine A
MakerCummins
ModelKTA50-M2 1342
Engine B
MakerCummins
ModelKTA50-M2 1342
Engine C
MakerCummins
ModelKTA50-M2 1342
Storage
NameValue
No data

Performance & Ratios

Detail
NameValue
Capsize Screening Formula (CSF) 1.64
